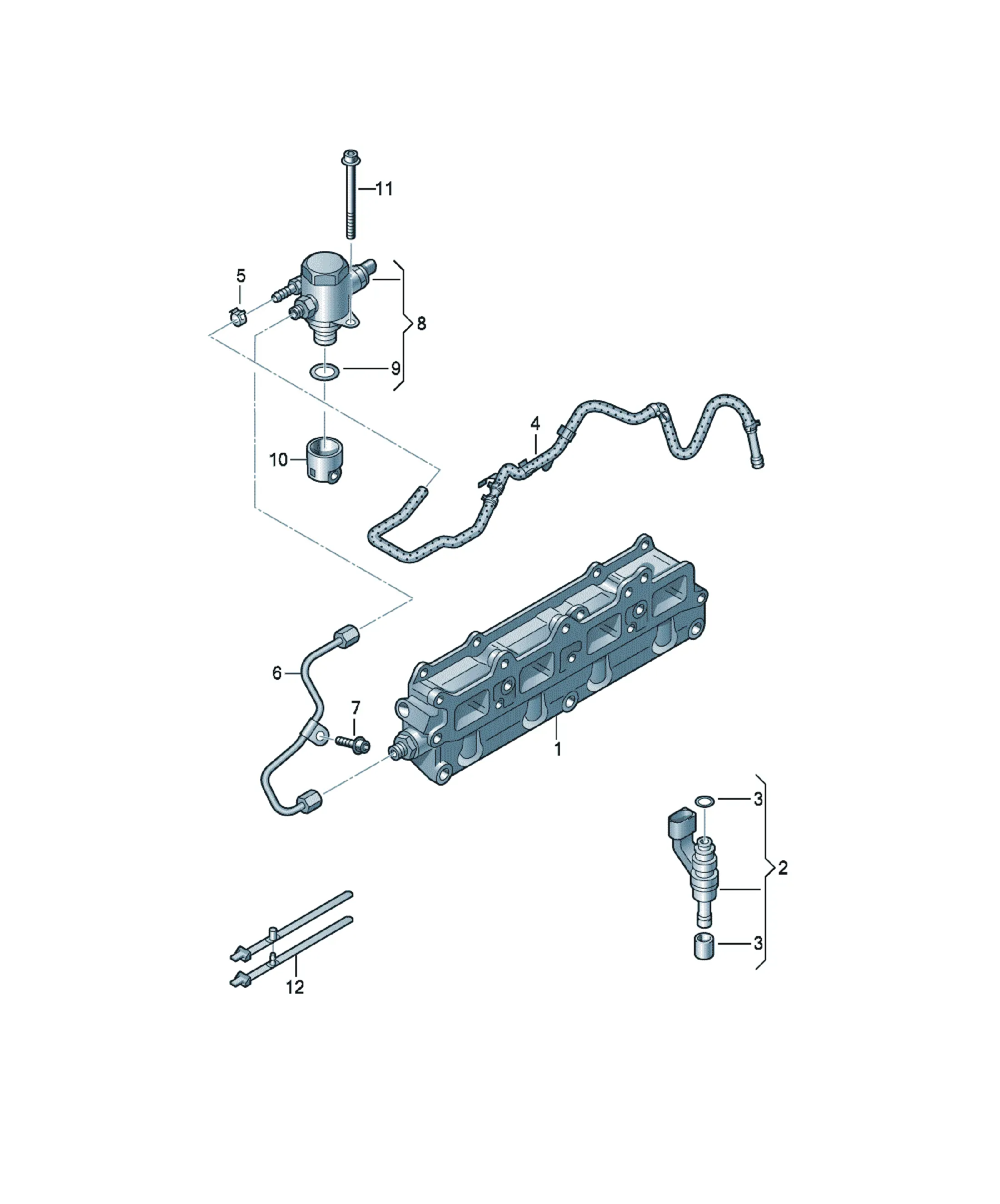

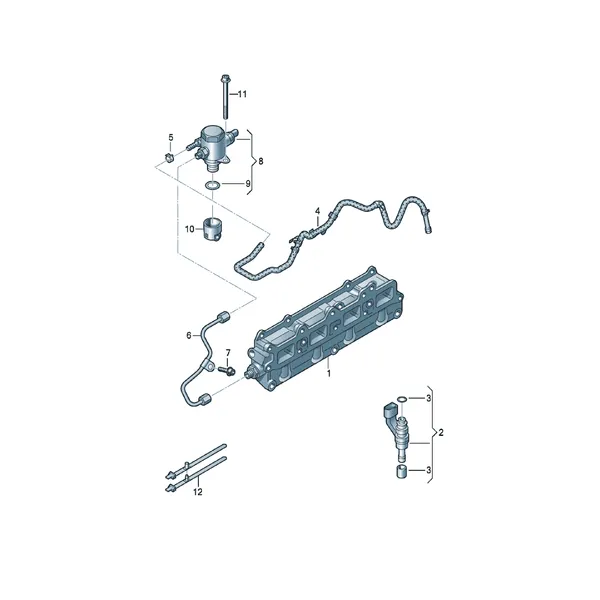

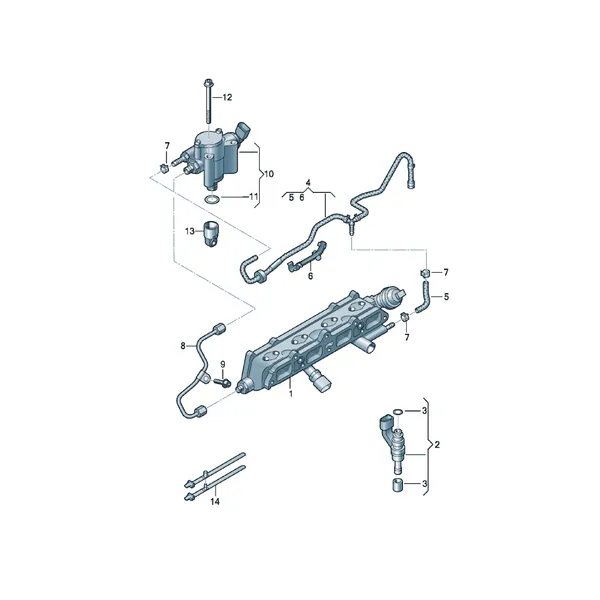

Fuel rail

[Name] [Note]

intake manifold - lower part

see illustration, item: 133-017,14

[Name] [QTY]

Tappets 1

Replacements: 06L109311

[Name] [Note] [QTY]

Screw with int. serrations M8X20 2

[Name] [QTY]

double cable tie X

[Name] [QTY]

Injection valve 4

Replacements: 03C906036M

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

[Name] [QTY]

Gasket set for injector valve 4

repair set

O-ring 7,51X3,53 1

seal ring 1

support washer 1

Spring clip 1

[Name] [Note] [QTY]

Fuel hose feed 1

Replacements: 03C133723BM

[Name] [Note] [QTY]

Spring band clamp 14,5X12 1

[Name] [QTY]

pressure pipe 1

Replacements: 03C130241AP

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [Note] [QTY]

Fuel pump 1

use if required: 06H 109 311 B 1

Accompanying details: 06H109311B

Replacements: 03C127026J

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

optional:

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

[Name] [Note] [QTY]

O-ring 31X2 1
