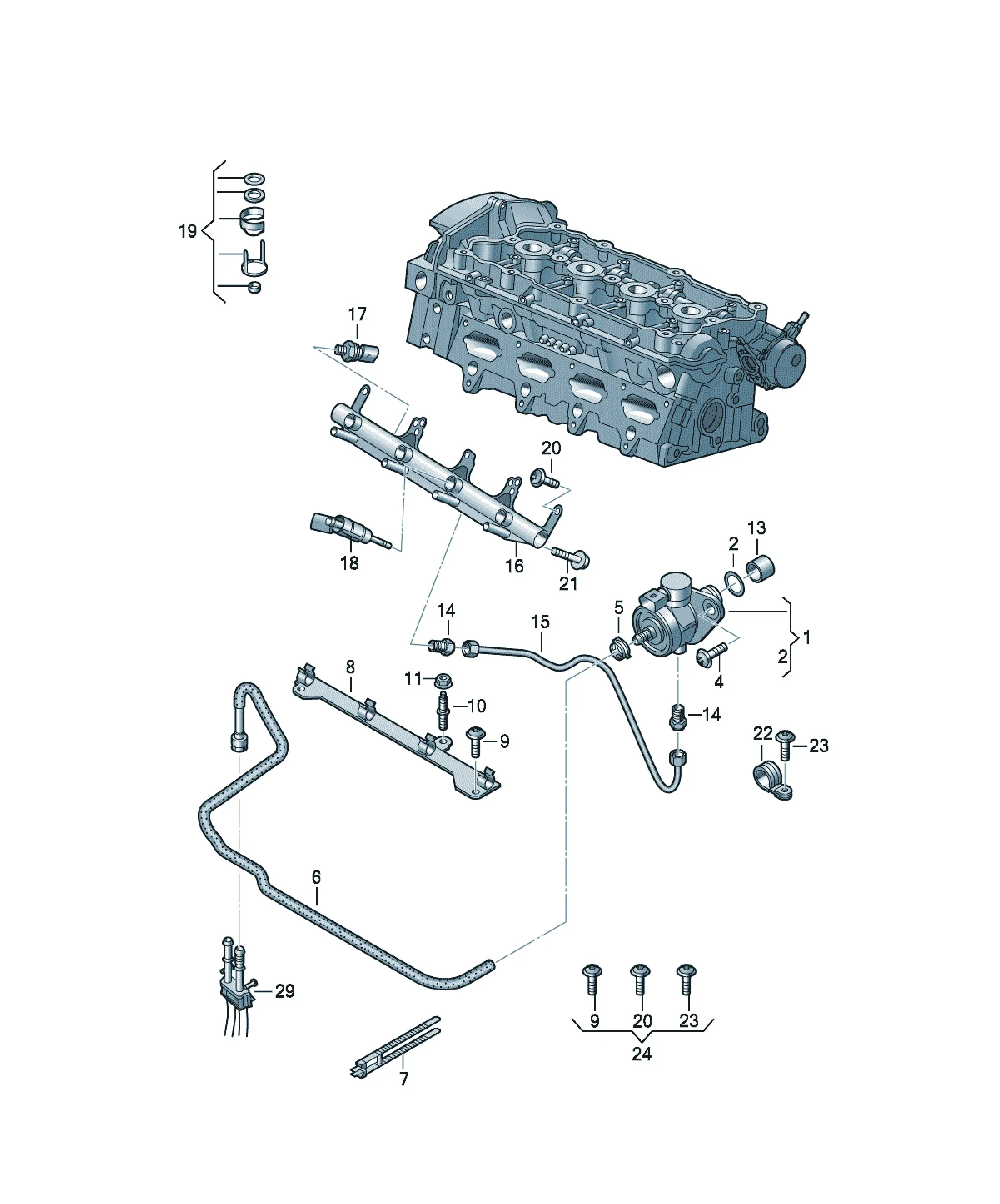

Fuel system

[Name] [QTY]

Connector union 1

[Name] [Model info] [QTY]

Fuel pump CCZA,CCZC 1

D - 08.03.2011>>

Replacements: 06J127025G

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Injection valve

[Name] [Note] [Model info] [QTY]

Fuel pump CAWA,CAWB 1

contains: 06L 127 065 CCTA 1

also use: 06E 127 065 D 1

Accompanying details: 06E127065D

Replacements: 06H127025Q

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Model info] [QTY]

Fuel pump CCZA,CCZC 1

D >> - 07.03.2011

Replacements: 06J127025F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

[Name] [Note] [QTY]

double stud with hexagon drive 6X16/M6X19 1

[Name] [Note] [QTY]

hexagon nut, self-locking M6 1

[Name] [QTY]

Tappets 1

Replacements: 06L109311

[Name] [Model info] [QTY]

Adapter CAWA,CAWB, 2

CCTA

Replacements: 06E127065G

[Name] [Note] [Model info] [QTY]

Adapter CCZA,CCZC 1

only for position: 16

Replacements: 06E127065G

[Name] [QTY]

Fuel line 1

Replacements: 06J127501T

[Name] [QTY]

Fuel rail 1

Replacements: 06J133317AB

[Name] [QTY]

Pressure sensor 1

Replacements: 06J906054B

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Injection valve 4

Replacements: 06H906036P

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [QTY]

repair kit for valve unit 4

Replacements: 06J998907D

repair set

06J133036B Support element 1

06H906189B Intermediate ring 1

06H998907A repair kit for valve unit 1

fitting instructions 1

[Name] [Note] [QTY]

O-ring 31X2 1

[Name] [Note] [QTY]

oval hd. self-tapp fitt. screw 6X16 2

[Name] [Note]

Hexagon socket flat head bolt

see illustration, item: 133-030,10

[Name] [Note] [QTY]

clamp 8X15 2

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 1

Replacements: N 10721401

[Name] [QTY]

1 set securing bolts for intake manif. and attachments 1

repair set

Flat head bolt with hexagon socket head, thread forming 4X10 3

Flat head bolt with hexagon socket head, thread forming 3X10 2

Flat head bolt with hexagon socket head, thread forming 6X15 3

Flat head bolt with hexagon socket head, thread forming 5X15 2

Flat head bolt with hexagon socket head, thread forming 6X45 4

Flat head bolt with hexagon socket head, thread forming 4X18 1

Plug-in nut 1

double collared stud 1

[Name]

Not for this model

[Name] [Note]

Fuel line (pipe) with breather line (pipe)

see illustration, item: 201-040,1

[Name] [Note] [Model info] [QTY]

Hexagon socket head bolt M6X22 CAWA,CAWB 2

CCTA

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M8X16 CCZA,CCZC 2

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X

[Name] [QTY]

Fuel hose 1

D >> - 18.01.2010

[Name] [QTY]

Fuel hose 1

D - 19.01.2010>>

Replacements: 06J133986AC

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

Hose bracket 1

[Name] [Note] [QTY]

oval hd. self-tapp fitt. screw 6X16-Q 1
