Body base

Side member

Assembly diagrams

2 diagrams

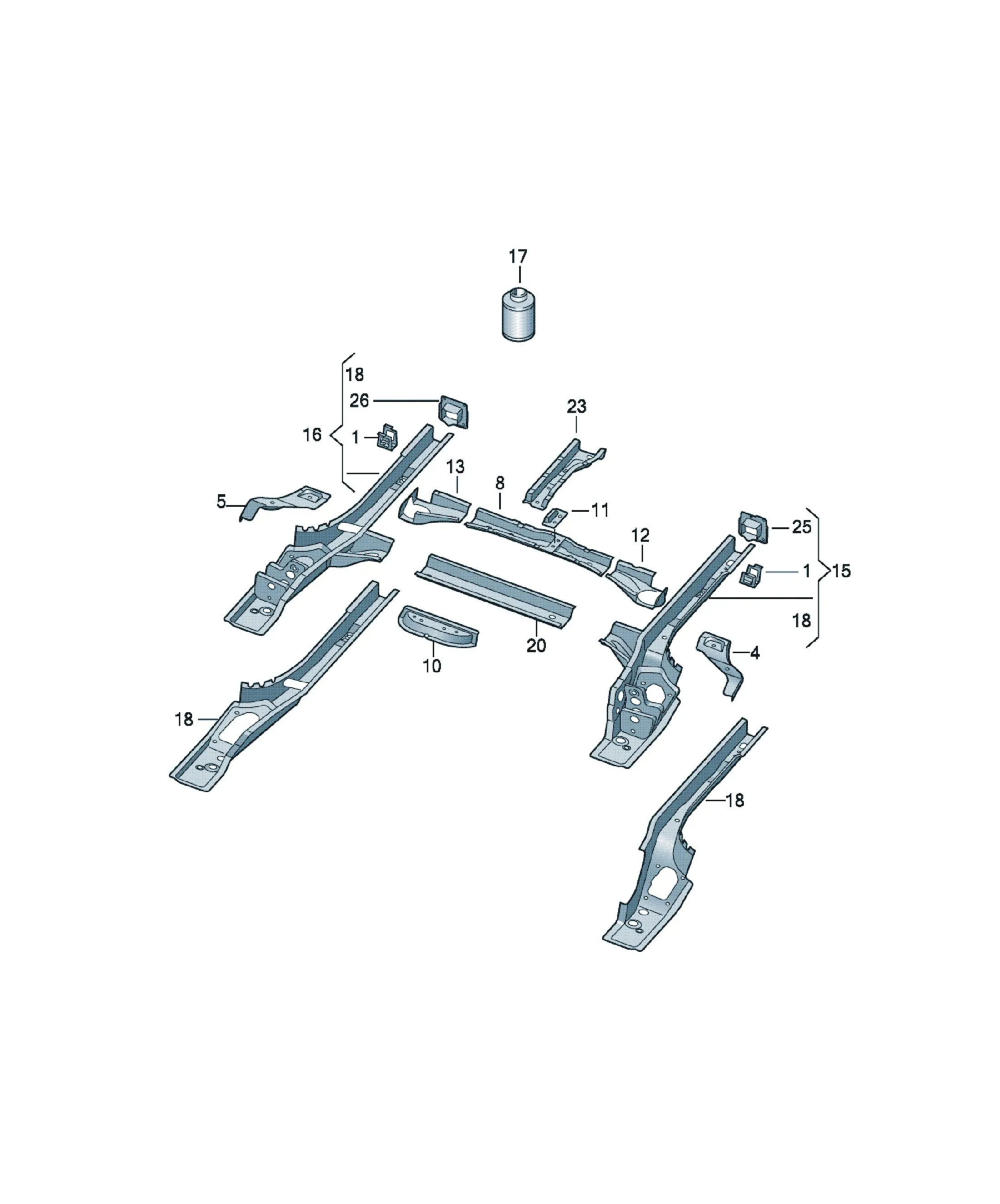

Side member diagram

Parts

17 parts

5N0802159 Offers

[Name] [QTY]
Mounting for bodywork 2
5N0803179 Offers

[Name] [QTY]
Reinforcement 1
5N0803274 Offers

[Name] [QTY]
Bracket mount 1
5N0803347 Offers

[Name] [Note] [QTY]
Cross member for floor left rear 1
5N0803348 Offers

[Name] [Note] [QTY]
Cross member for floor right rear 1
5N0803501 Offers

[Name] [Note] [QTY]
Side member left rear 1
5N0803502 Offers

[Name] [Note] [QTY]
Side member right rear 1
Replacements: 5N0803502A
D506KD1A3 Offers

[Name] [Note] [QTY]
2 pk fill foam 200ML 1
Replacements: D 506KD1A4
5N0803505 Offers

[Name] [Note] [QTY]
Side member left rear 1
can be used as a sub-part
5N0803506 Offers

[Name] [Note] [QTY]
Side member right rear 1
can be used as a sub-part
Replacements: 5N0803506B
5N0803531 Offers

[Name] [QTY]
Cross member 1
5N0804277 Offers

[Name] [QTY]
Support 1
Replacements: 5N0804277A; N 0195307
5N0804474 Offers

[Name] [Note] [QTY]
Cross panel for side member right rear 1
5N0804473 Offers

[Name] [Note] [QTY]
Cross panel for side member left rear 1
5N0802955 Offers

[Name] [Note] [QTY]
Reinforcement left 1
5N0802956 Offers

[Name] [Note] [QTY]
Reinforcement right 1
5N0803133 Offers

[Name] [QTY]
Cross member 1
