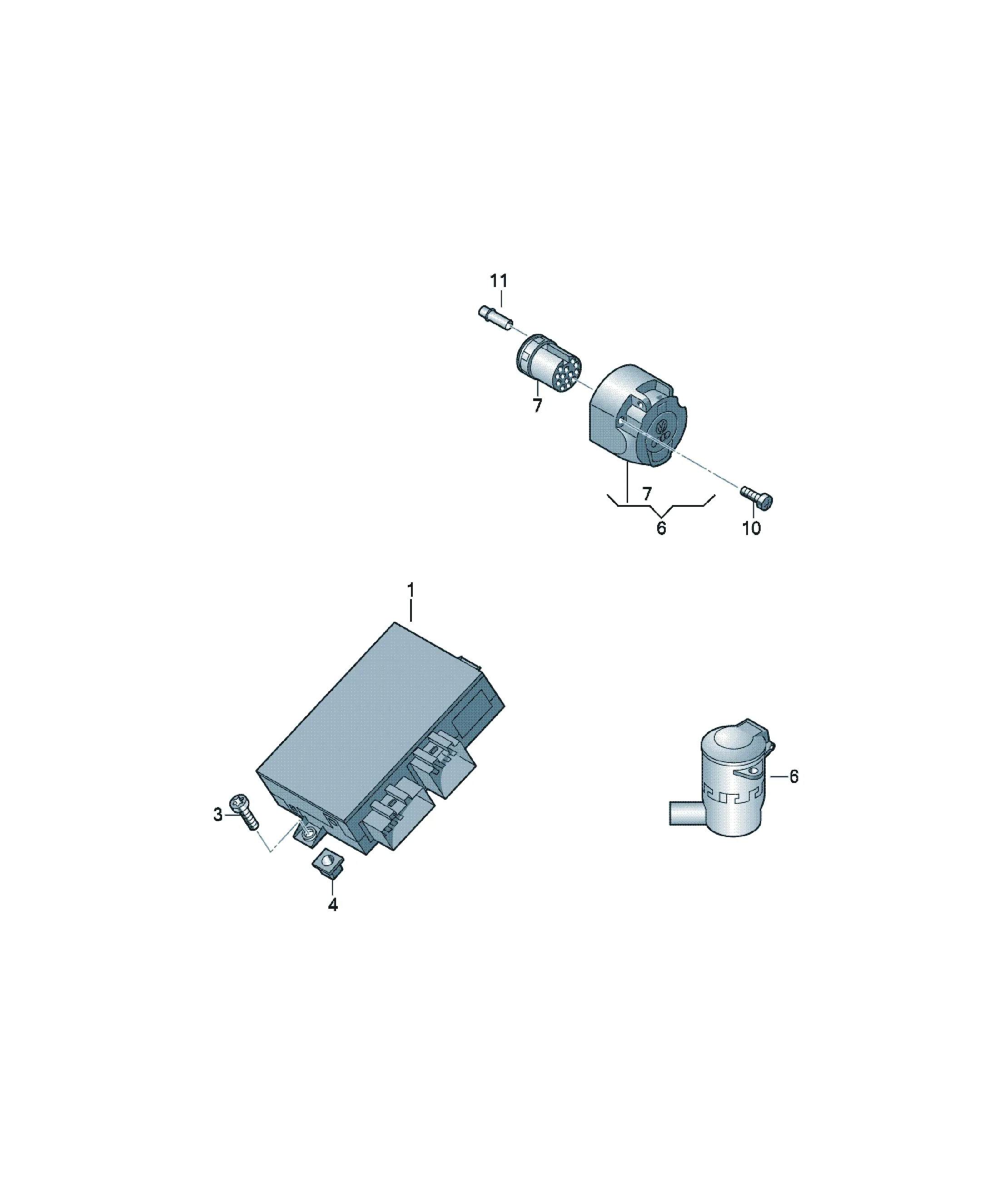

Trailer towing electrical components

[Name] [Note] [QTY]

Washer 5,3X10X1 2

[Name]

Control unit for trailer detection

mating connector

6Q0937713 Flat contact housing with contact locking mechanism 16 pin 1

black

6Q0972883B Flat contact housing with contact locking mechanism 12 pin 1

red

6Q0972883C Flat contact housing with contact locking mechanism 12 pin 1

blue

[Name] [Note] [QTY]

round hd. screw M5X12 2

[Name] [QTY]

Annular contact w/ solder pin X

[Name] [Note] [QTY]

Hexagon socket head bolt M5X16 2

[Name] [Note] [QTY]

Speed nut M5X16,6X15 2

[Name] [Note] [QTY]

housing for trailer towing socket 13 pin 1

contains additional positions: 11 10

Possible single wire:

7H0972217C Annular contact w/ solder pin X

for wire cross section: 0,5-2,5QMM

[Name] [Note] [QTY]

rd. connector sleeve housing 13 pin 1

for contact: 7H0 972 217 C X
