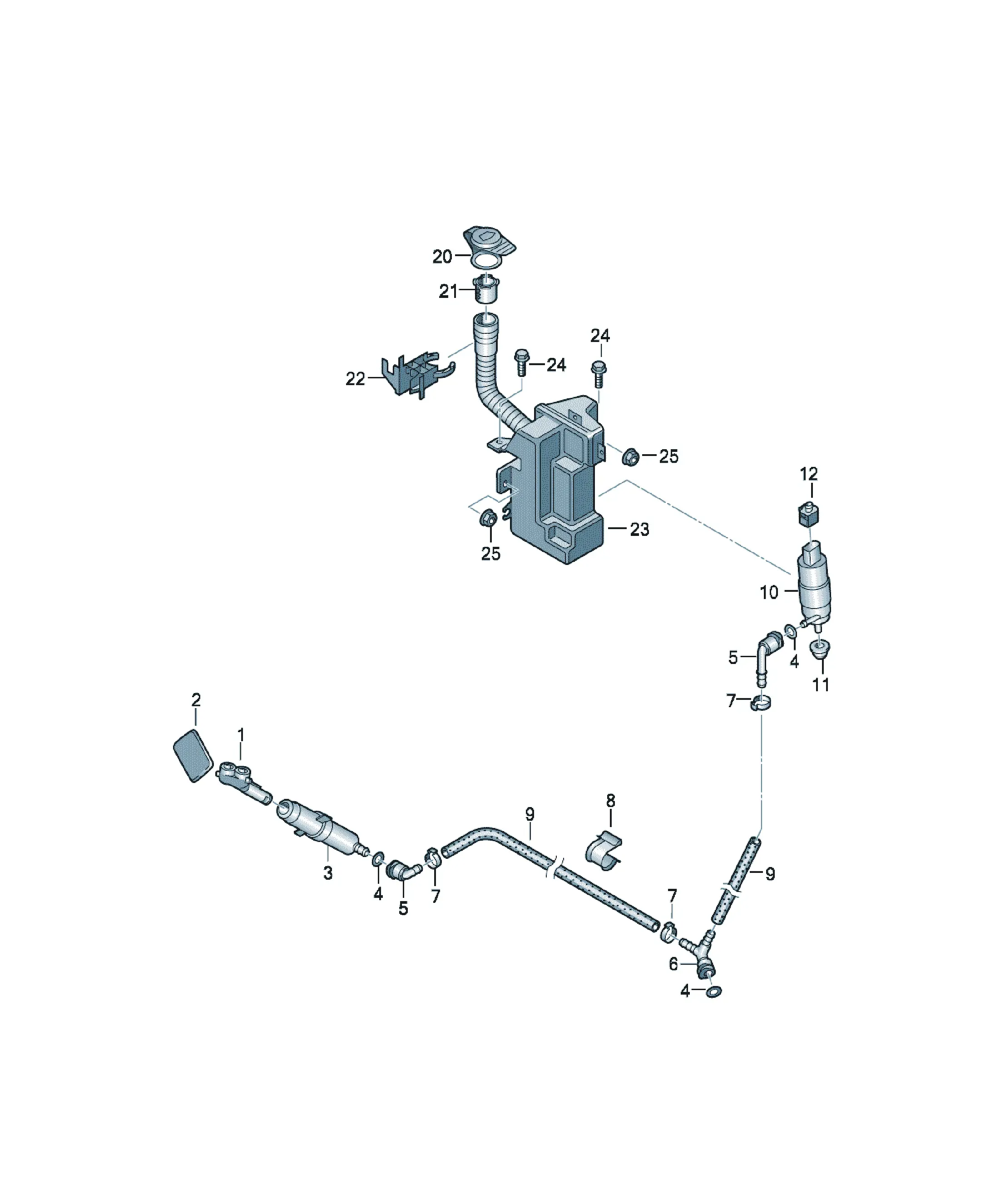

Headlight washer system

[Name] [QTY]

Connecting pipe 1

Elbow fitting

[Name] [Note] [QTY]

Nozzle carrier w/spray nozzle right 1

[Name] [Note] [QTY]

Nozzle carrier w/spray nozzle left 1

[Name] [Note] [QTY]

Pump for headlight- washer system 1

use if required: 1J0 973 722 A 1

N 903 038 01 1

Accompanying details: 1J0973722A; N 90303801

mating connector

1J0973722A Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Seal 20,2X9,5 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

mating connector

1J0973822A Flat connector housing with contact locking mechanism 2 pin 1

dark brown

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Cover cap right 1

[Name]

primed

[Name]

primed

[Name] [Note] [QTY]

Cover cap left 1

[Name] [Note] [QTY]

End cap 54MM 1

[Name] [QTY]

strainer 1

Replacements: 4A0955485

[Name] [QTY]

Holder for filler pipe 1

[Name] [Note] [QTY]

Wash water reservoir 7.0 Ltr. 1

for vehicles with headlight washer system

Replacements: 5N0955453H

mating connector

7M0973202 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [Note] [QTY]

Hex collared bolt M6X25 2

[Name] [Note] [QTY]

Hexagon flange nut, self-locking M6 2

[Name] [Note] [QTY]

Lift cylinder right 1

[Name] [Note] [QTY]

Lift cylinder left 1

[Name] [Note] [QTY]

O-ring 9X1,5 3

[Name] [Note] [QTY]

Elbow fitting 90 degree angle 2

[Name] [QTY]

Distributor 1

[Name] [Note] [QTY]

clamp 17,5X7X0,6 X

[Name] [Note] [QTY]

terminal 17,5 8

[Name] [Note] [QTY]

hose in coils of 5m 'order unit 5' S10X3 *

modify in workshop
