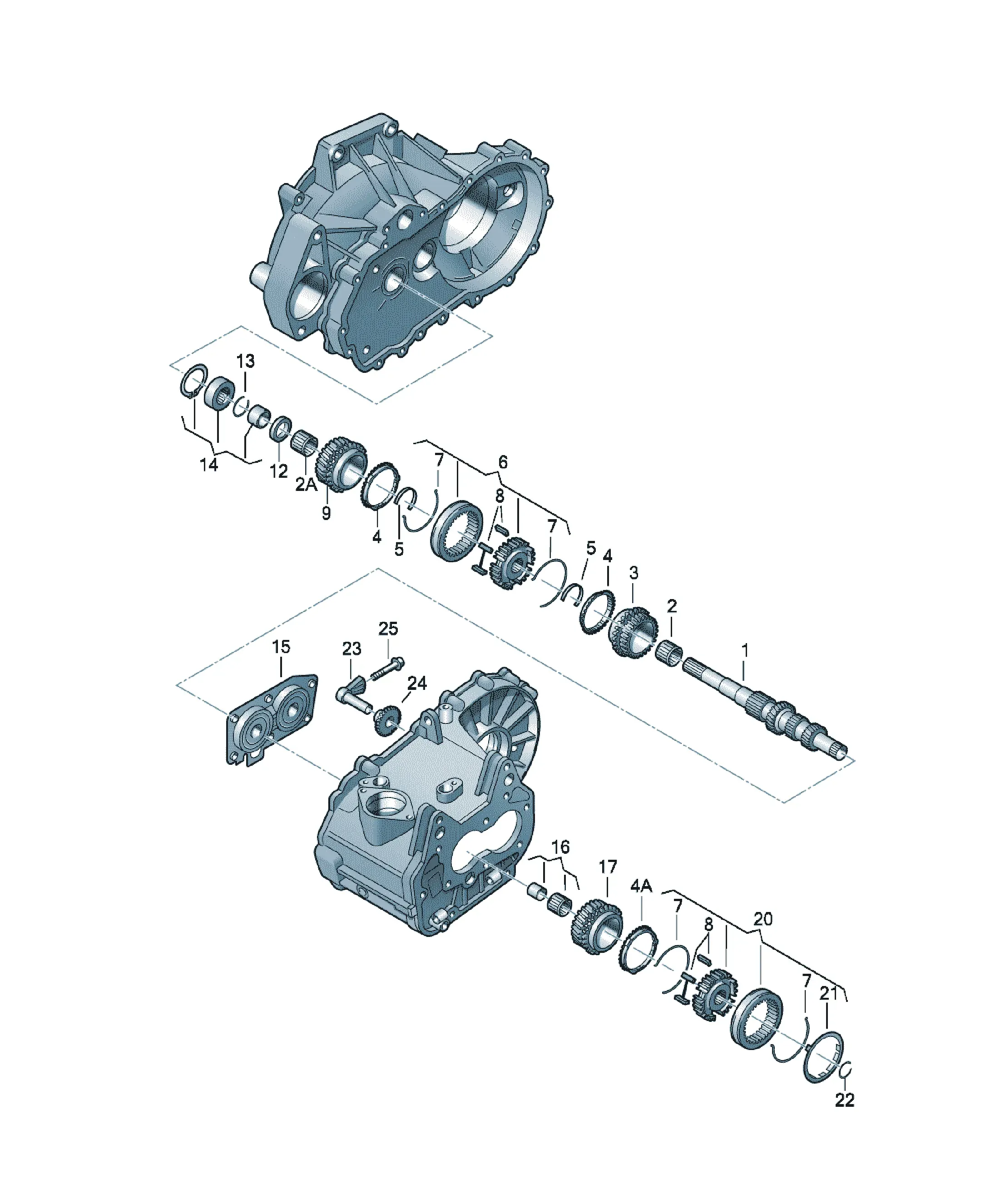

Первичный вал КПП

[Name] [Note] [Model info] [QTY]

Input shaft Z=11+22 LZF 1

[Name] [Note] [Model info] [QTY]

Input shaft Z=13+22 LGQ 1

[Name] [Note] [Model info] [QTY]

Input shaft Z=13+22 MFX 1

[Name] [Note] [Model info] [QTY]

Input shaft Z=13+21 LNR,LVA,LVE 1

[Name] [Note] [Model info] [QTY]

Input shaft Z=13+22 MHX,LMG 1

[Name] [Note] [QTY]

thrust washer 24X42X3 1

[Name] [Note] [QTY]

Securing ring 21,8X27X2 X

[Name] [Note] [QTY]

Securing ring 21,8X27X2,2 X

[Name] [Note] [QTY]

Securing ring 21,8X27X2,1 X

[Name] [Note] [QTY]

Securing ring 21,8X27X2,4 X

[Name] [Note] [QTY]

Securing ring 21,8X27X2,3 X

[Name] [Note] [QTY]

1 set circlips 2,00-2,40 1

repair set

02T311327 Securing ring 21,8X27X2 1

02T311327A Securing ring 21,8X27X2,1 1

02T311327B Securing ring 21,8X27X2,2 1

02T311327C Securing ring 21,8X27X2,3 1

02T311327D Securing ring 21,8X27X2,4 1

[Name] [Note] [QTY]

roller sleeve 24,1X47X17,7 X

[Name] [Note]

see illustration: 311-032

[Name] [Note]

see illustration: 311-034

[Name] [QTY]

needle bearing - 1

[Name] [Note] [Model info] [QTY]

change gear 5-speed LZF 1

39/48

[Name] [Note] [QTY]

change gear 5-speed 1

Z=37/50

[Name] [Note] [Model info] [QTY]

change gear 5-speed LVA,LVE 1

39/48

[Name] [Note] [Model info] [QTY]

change gear 5-speed MFX,LNR 1

37/50

[Name] [Note] [QTY]

needle bearing - 30,5X35,5X26,5 1

3.gear

[Name] [Note] [QTY]

synchronizing hub with locking collar 5-speed 1

[Name] [QTY]

stop ring 1

[Name] [Note] [QTY]

Securing ring 17,7X2 X

[Name] [Note] [QTY]

Securing ring 17,7X2,2 X

[Name] [Note] [QTY]

1 set circlips 2,00-2,60 1

repair set

085311187 Securing ring 17,7X2 1

085311187A Securing ring 17,7X2,1 1

085311187B Securing ring 17,7X2,2 1

085311187C Securing ring 17,7X2,3 1

085311187D Securing ring 17,7X2,4 1

085311187E Securing ring 17,7X2,5 1

085311187F Securing ring 17,7X2,6 1

[Name] [Note] [QTY]

Securing ring 17,7X2,1 X

[Name] [Model info] [QTY]

reverse gear idler spindle LNR,LVA,LVE 1

[Name] [Model info] [QTY]

reverse gear idler spindle LZF,MFX 1

[Name] [QTY]

reverse gear idler spindle 1

[Name] [Note] [QTY]

reverse gear Z=24 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X40 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) BM8X45X32-U 1

[Name] [Note] [QTY]

needle bearing - 24,3X35,5X26,3 1

4-speed

[Name] [Note] [Model info] [QTY]

change gear 3.gear LGQ 1

41/32

[Name] [Note] [Model info] [QTY]

change gear 3.gear LVA,LVE 1

43/31

[Name] [Note] [Model info] [QTY]

change gear 3.gear LNR,MFX 1

41/32

[Name] [Note] [Model info] [QTY]

change gear 3.gear LZF 1

43/31

[Name] [Note] [Model info] [QTY]

change gear 3.gear LMG,MHX 1

41/32

[Name] [QTY]

synchronizer ring 2

[Name] [Note] [QTY]

synchronizer ring 3./4.gear 2

[Name] [QTY]

synchronizer ring 2

[Name]

Securing ring

Not for this model

[Name] [Note] [QTY]

Securing ring 24,9X2,5 2

[Name] [Note] [QTY]

synchronizing hub with locking collar 3./4.gear 1

[Name] [QTY]

Spring 4

[Name] [QTY]

locking piece 6

[Name] [Note] [Model info] [QTY]

change gear 4-speed LZF 1

40/39

[Name] [Note] [Model info] [QTY]

change gear 4-speed LNR,LVA,LVE 1

40/39

[Name] [Note] [Model info] [QTY]

change gear 4-speed MFX 1

38/41

[Name] [Note] [Model info] [QTY]

change gear 4-speed LMG,MHX 1

Z=38/41

[Name] [Note] [Model info] [QTY]

change gear 4-speed LGQ 1

Z=38/41
