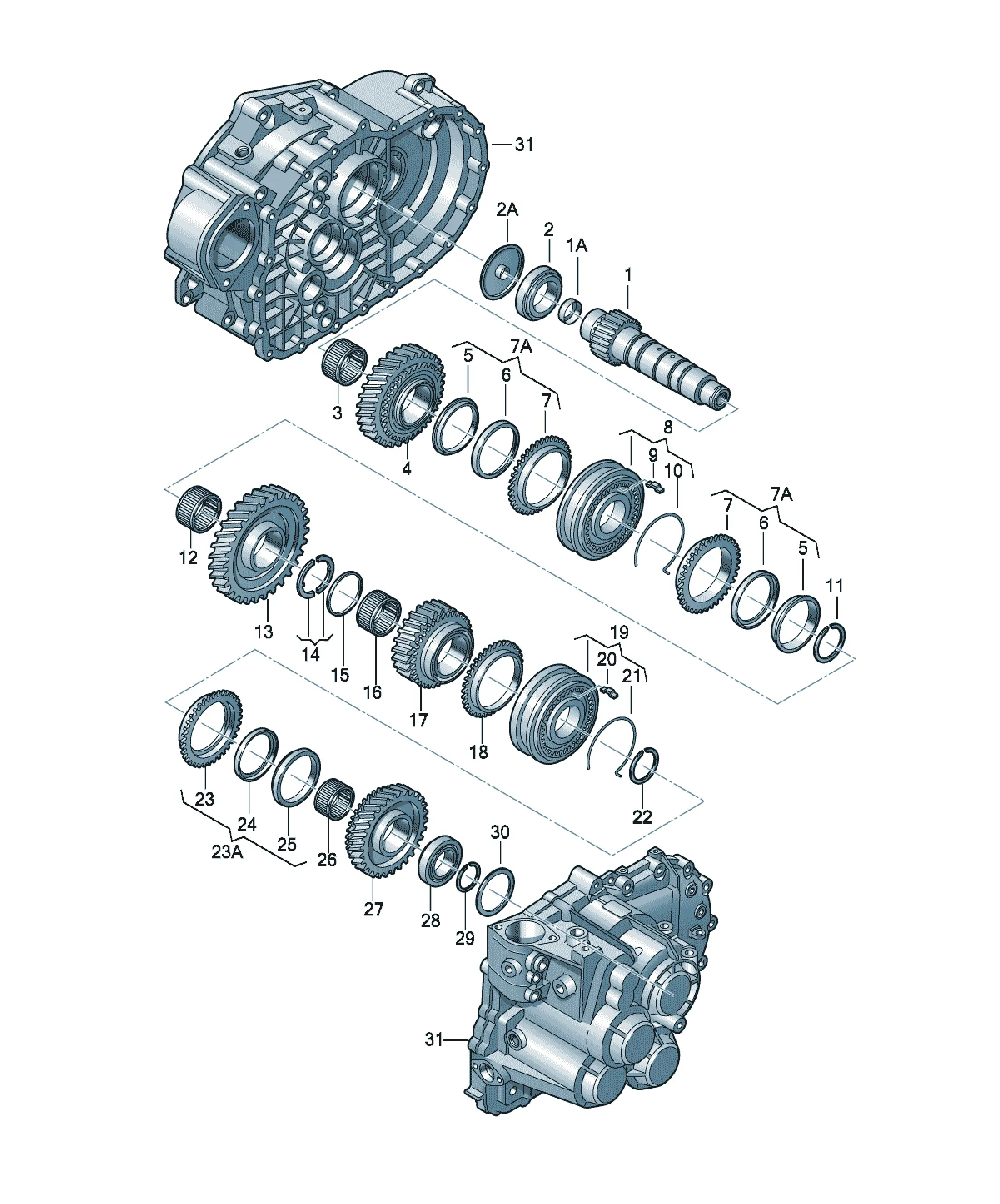

Вторичный вал КПП

[Name] [Note] [Model info] [QTY]

Output shaft 1st-4th gear NJU 1

[Name] [Note] [Model info] [QTY]

Output shaft 1st-4th gear LNK,PEF 1

[Name] [Note] [QTY]

Spring 1,6MM 2

[Name] [QTY]

Securing ring 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

[Name] [Note] [QTY]

change gear 1.gear 1

49/13

[Name] [Note] [QTY]

thrust washer 1st-4th gear 1

38X56X4,6

[Name] [Note] [QTY]

Retaining ring 56X60X3 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

[Name] [Note] [Model info] [QTY]

change gear 4-speed LNK,PEF 1

42/43

[Name] [Note] [Model info] [QTY]

change gear 4-speed NJU 1

37/34

[Name] [Note] [QTY]

synchronizer ring 4-speed 1

[Name] [Note] [QTY]

synchronizing hub with locking collar 3./4.gear 1

[Name] [Note] [QTY]

Cup washer 14X27,15X2X10 1

[Name] [Note] [QTY]

Taper roller bearing 40X80X21 1

[Name] [QTY]

locking piece 3

[Name] [QTY]

Spring 2

[Name] [QTY]

Securing ring 1

[Name] [Note] [QTY]

synchronizer ring 3.gear 1

[Name] [Note] [QTY]

1 set synchro-rings 3.gear 1

carbon

[Name] [Note] [QTY]

outer ring 3./4.gear 1

[Name] [Note] [QTY]

synchronizer ring 3.gear 1

inner

[Name] [Note] [QTY]

needle bearing - 38X44X26,8 1

[Name] [Note] [Model info] [QTY]

change gear 3.gear NJU 1

47/32

[Name] [Note] [Model info] [QTY]

change gear 3.gear LNK,PEF 1

45/34

[Name] [Note] [QTY]

Taper roller bearing 30X62X17 1

[Name] [Note] [QTY]

1 set circlips 1,79-1,98 1

repair set

02M311187A Securing ring 27,2X33,6X1,98 1

02M311187B Securing ring 27,2X33,6X1,95 1

02M311187C Securing ring 27,2X33,6X1,92 1

02M311187D Securing ring 27,2X33,6X1,89 1

02M311187E Securing ring 27,2X33,6X1,86 1

02M311187F Securing ring 27,2X33,6X1,83 1

02M311187G Securing ring 27,2X33,6X1,79 1

[Name] [QTY]

oil thrower 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

[Name] [Note] [QTY]

1 set shims 0,7-2,4MM X

repair set

084409383AE fitted washer 52X61,3X1 1

084409383AF fitted washer 52X61,3X1,4 1

084409383AG fitted washer 52X61,3X1,45 1

084409383AH fitted washer 52X61,3X1,5 1

084409383AJ fitted washer 52X61,3X1,55 1

084409383AK fitted washer 52X61,3X1,6 1

084409383AL fitted washer 52X61,3X1,65 1

084409383AM fitted washer 52X61,3X1,7 1

084409383AN fitted washer 52X61,3X1,75 1

084409383AP fitted washer 52X61,3X1,8 1

084409383AQ fitted washer 52X61,3X1,85 1

084409383AR fitted washer 52X61,3X1,9 1

084409383AS fitted washer 52X61,3X1,95 1

084409383AT fitted washer 52X61,3X2 1

084409383BA fitted washer 52X61,3X2,05 1

084409383BB fitted washer 52X61,3X2,1 1

084409383BC fitted washer 52X61,3X2,15 1

084409383BD fitted washer 52X61,3X2,2 1

084409383BE fitted washer 52X61,3X2,25 1

084409383BF fitted washer 52X61,3X2,3 1

084409383BG fitted washer 52X61,3X2,35 1

084409383BH fitted washer 52X61,3X2,4 1

084409383BK fitted washer 0,7 1

084409383BL fitted washer 0,75 1

084409383BM fitted washer 0,8 1

084409383BN fitted washer 0,85 1

084409383BP fitted washer 0,9 1

084409383BQ fitted washer 0,95 1

084409383BR fitted washer 1,05 1

084409383BT fitted washer 1,15 1

084409383BS fitted washer 1,1 1

084409383CA fitted washer 1,2 1

084409383CB fitted washer 1,25 1

084409383CC fitted washer 1,3 1

084409383CD fitted washer 1,35 1

[Name] [Note]

clutch housing

Gear housing

see illustration: 301-045

[Name] [Note] [Model info] [QTY]

change gear 2.gear LNK,PEF 1

47/23

[Name] [Note] [Model info] [QTY]

change gear 2.gear NJU 1

48/23

[Name] [Note]

No replacement part

for this use: POS,7A

[Name] [Note]

No replacement part

for this use: POS,7A

[Name] [Note]

No replacement part

for this use: POS,7A

[Name] [Note] [QTY]

1 set synchro-rings 1./2.gear 1

carbon

[Name] [Note] [QTY]

synchronizing hub with locking collar 1./2.gear 1

[Name] [QTY]

locking piece 3
