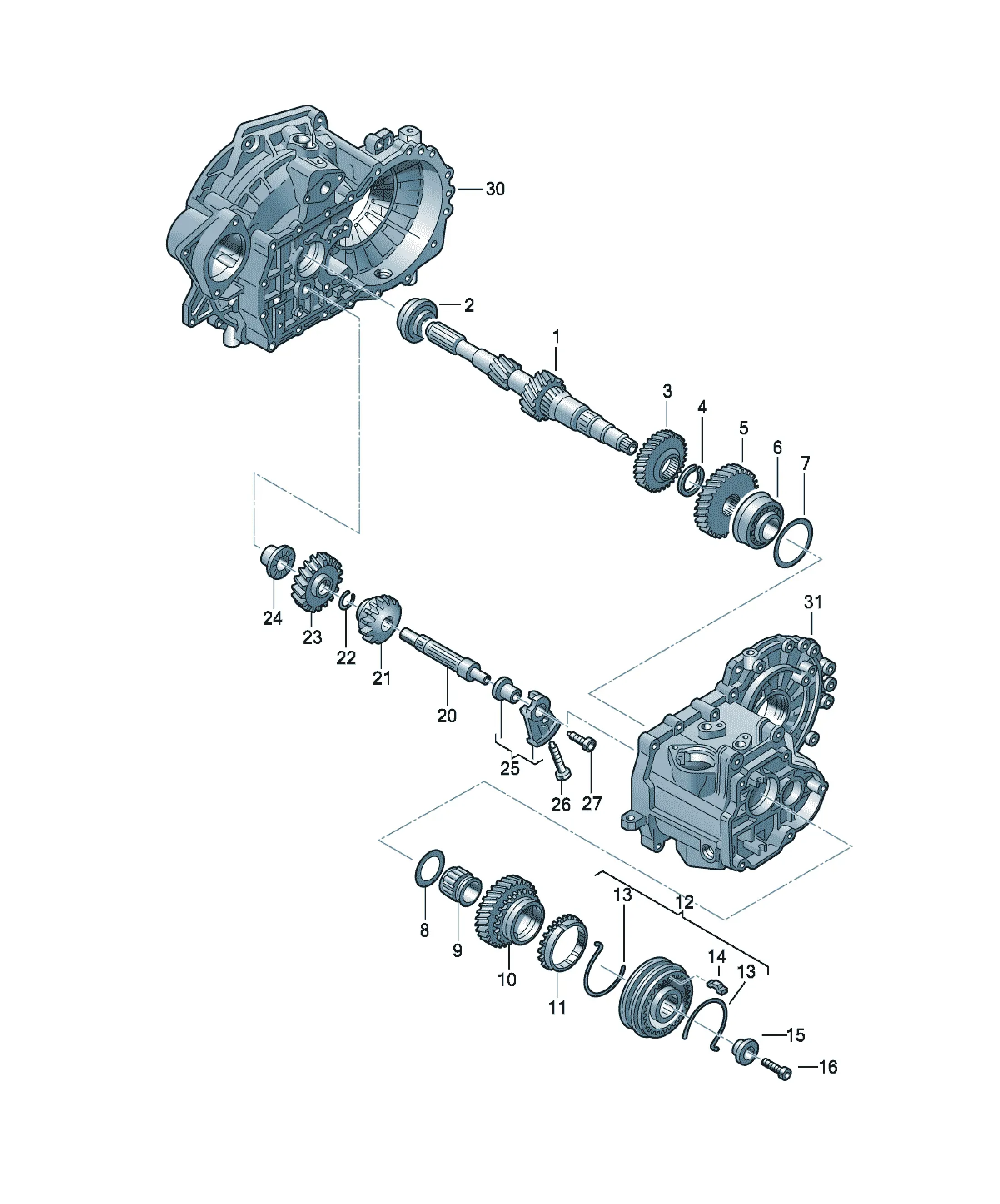

Первичный вал КПП

[Name] [Note] [QTY]

Input shaft Z=9+17 1

[Name] [Note] [Model info] [QTY]

change gear 5-speed MZK,MZL,MZN 1

31/47

[Name] [Note] [Model info] [QTY]

change gear 5-speed MZS 1

33/45

[Name] [Note] [QTY]

synchronizer ring 5-speed 1

[Name] [Note] [QTY]

synchronizing hub with locking collar 5-speed 1

[Name] [Note] [QTY]

Spring 5-speed 2

[Name] [Note] [QTY]

locking piece 5-speed 3

[Name] [Note] [QTY]

Belleville spring 24X46,5X3 1

[Name] [Note] [QTY]

Expansion screw M10X1X35,5 1

[Name] [Note] [QTY]

Taper roller bearing 22X45X16,6 1

[Name] [QTY]

reverse gear shaft 1

[Name] [Note] [QTY]

sliding wheel for reverse gear Z=20 1

[Name] [Note] [QTY]

snap ring 20 1

[Name] [Note] [QTY]

intermediate wheel Z=18 1

return

[Name] [Note] [QTY]

Needle bush 15X21X18 1

[Name] [QTY]

Support 1

reverse gear shaft

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X32 1

[Name] [Note] [QTY]

Torx socket head bolt M8X26 1

[Name] [Note] [Model info] [QTY]

gear 3.gear MZK,MZL,MZN 1

33/26

[Name] [Note] [Model info] [QTY]

gear 3.gear MZS 1

34/25

[Name] [Note]

clutch housing

see illustration, item: 301-041,1

[Name] [Note]

Gear housing

see illustration, item: 301-041,7

[Name] [Note] [QTY]

Securing ring 30,8X2,5 1

[Name] [Note] [Model info] [QTY]

gear 4-speed MZK,MZL,MZN 1

32/37

[Name] [Note] [Model info] [QTY]

gear 4-speed MZS 1

32/37

[Name] [Note] [QTY]

Taper roller bearing 30X68,5X17,2 1

[Name] [Note] [QTY]

1 set shims 0,65-1,27 X

repair set

02A311140 adjusting washer 62,2X0,65 1

02A311140A adjusting washer 62,2X0,67 1

02A311140AA adjusting washer 62,2X1,12 1

02A311140AB adjusting washer 62,2X1,15 1

02A311140AC adjusting washer 62,2X1,17 1

02A311140AD adjusting washer 62,2X1,2 1

02A311140AE adjusting washer 62,2X1,22 1

02A311140AF adjusting washer 62,2X1,25 1

02A311140AG adjusting washer 62,2X1,27 1

02A311140B adjusting washer 62,2X0,7 1

02A311140C adjusting washer 62,2X0,72 1

02A311140D adjusting washer 62,2X0,75 1

02A311140E adjusting washer 62,2X0,77 1

02A311140F adjusting washer 62,2X0,8 1

02A311140G adjusting washer 62,2X0,82 1

02A311140H adjusting washer 62,2X0,85 1

02A311140J adjusting washer 62,2X0,87 1

02A311140K adjusting washer 62,2X0,9 1

02A311140L adjusting washer 62,2X0,92 1

02A311140M adjusting washer 62,2X0,95 1

02A311140N adjusting washer 62,2X0,97 1

02A311140P adjusting washer 62,2X1 1

02A311140Q adjusting washer 62,2X1,02 1

02A311140R adjusting washer 62,2X1,05 1

02A311140S adjusting washer 62,2X1,07 1

02A311140T adjusting washer 62,2X1,1 1

[Name] [Note] [QTY]

thrust washer 9,2X49X2,5 2

[Name] [Note] [QTY]

needle bearing - 29X40X24 2
