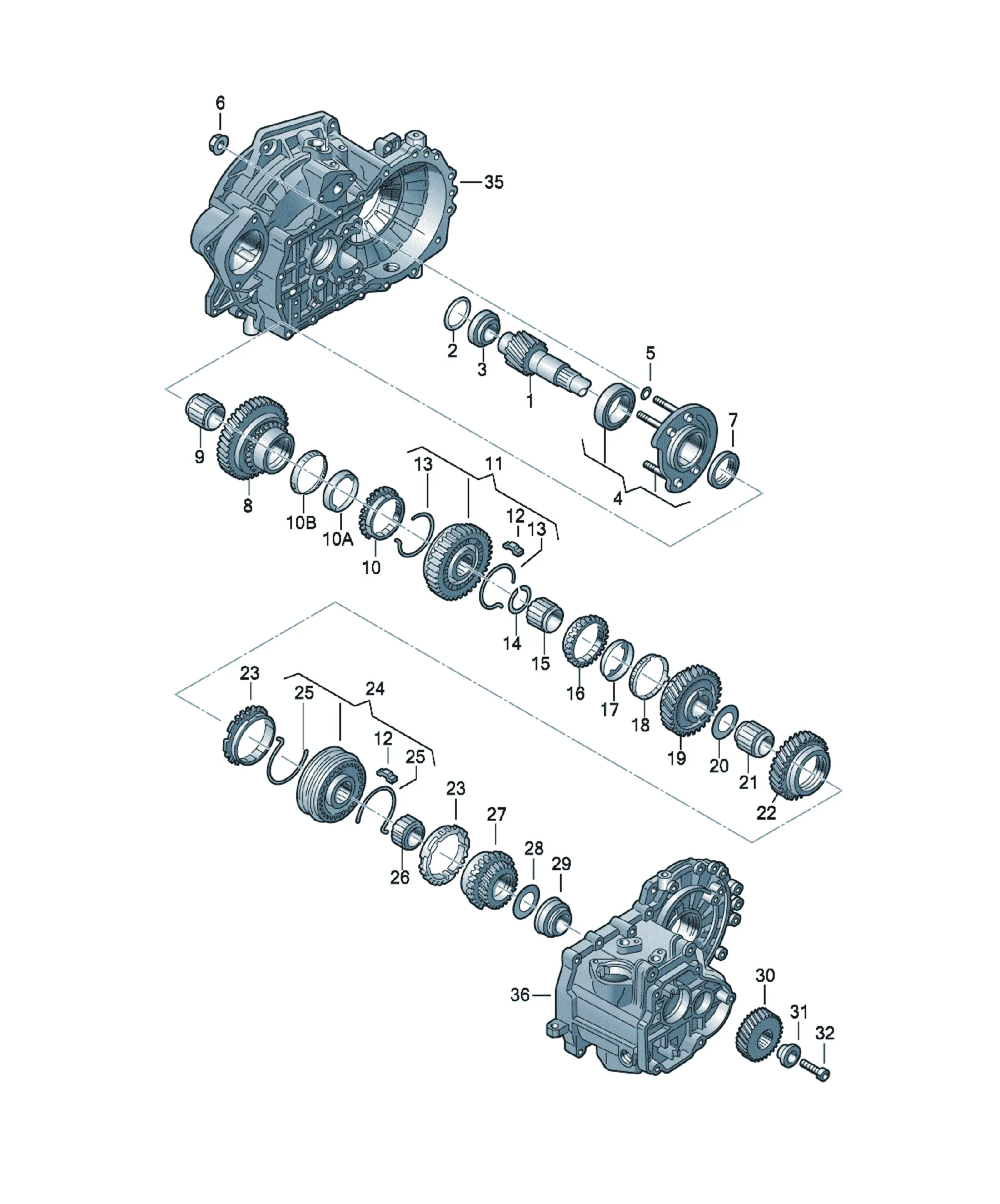

Вторичный вал КПП

[Name] [Note] [Model info] [QTY]

Output shaft 60/19 MZL 1

[Name] [Note] [Model info] [QTY]

Output shaft 62/17 MZS 1

[Name] [Note] [Model info] [QTY]

Output shaft 61/18 MZK,MZN 1

[Name] [Note] [QTY]

synchronizer ring 1./2.gear 1

[Name] [Note] [QTY]

outer ring 1.gear 1

[Name] [Note] [QTY]

synchronizer ring 1./2.gear 1

inner

[Name] [Note] [QTY]

synchronizing hub with locking collar 1./2.gear 1

[Name] [Note] [QTY]

locking piece 1st-4th gear 6

[Name] [Note] [QTY]

Spring 1./2.gear 2

[Name] [QTY]

Securing ring 1

[Name] [Note] [QTY]

needle bearing - K35X40X23,8 1

[Name] [Note] [QTY]

synchronizer ring 1./2.gear 1

[Name] [Note] [QTY]

outer ring 2.gear 1

[Name] [Note] [QTY]

synchronizer ring 1./2.gear 1

inner

[Name] [Note] [QTY]

change gear 2.gear 1

36/17

[Name] [Note] [QTY]

1 set shims 0,65-1,40 X

repair set

020311391 adjusting washer 0,75 1

020311391A adjusting washer 0,8 1

020311391B adjusting washer 0,85 1

020311391C adjusting washer 0,9 1

020311391D adjusting washer 0,95 1

020311391E adjusting washer 1 1

020311391F adjusting washer 1,05 1

020311391G adjusting washer 1,1 1

020311391H adjusting washer 1,15 1

020311391J adjusting washer 1,2 1

020311391K adjusting washer 1,25 1

020311391L adjusting washer 1,3 1

020311391M adjusting washer 1,35 1

020311391N adjusting washer 1,4 1

020311391P adjusting washer 0,65 1

020311391Q adjusting washer 0,7 1

[Name] [Note] [QTY]

thrust washer 2nd/3rd gear 1

30,8X52X3,5

[Name] [Note] [QTY]

needle bearing - 30,6X40X25,8 1

[Name] [Note] [Model info] [QTY]

change gear 3.gear MZK,MZL,MZN 1

33/26

[Name] [Note] [Model info] [QTY]

change gear 3.gear MZS 1

33/26

[Name] [Note] [QTY]

synchronizer ring 3./4.GANG 1

[Name] [Note] [QTY]

synchronizing hub with locking collar 3./4.GANG 1

[Name] [QTY]

Spring 2

[Name] [Note] [QTY]

needle bearing - 29X40X24 2

[Name] [Note] [Model info] [QTY]

change gear 4-speed MZK,MZL,MZN 1

32/37

[Name] [Note] [Model info] [QTY]

change gear 4-speed MZS 1

34/35

[Name] [Note] [QTY]

thrust washer 9,2X49X2,5 2

[Name] [Note] [QTY]

roller sleeve 29X48X18,15 1

[Name] [Note] [QTY]

Taper roller bearing 29X50,29X14,73 1

[Name] [Note] [Model info] [QTY]

gear 5-speed MZK,MZL,MZN 1

31/47

[Name] [Note] [Model info] [QTY]

gear 5-speed MZS 1

33/45

[Name] [Note] [QTY]

Belleville spring 24X46,5X3 1

[Name] [Note] [QTY]

Expansion screw M10X1X35,5 1

[Name] [Note]

clutch housing

see illustration, item: 301-041,1

[Name] [Note]

Gear housing

see illustration, item: 301-041,7

[Name] [QTY]

mounting with taper roller bearing 1

[Name] [Note] [QTY]

O-ring 7X2 4

[Name] [Note] [QTY]

Hexagon collar nut M8 4

[Name] [Note] [QTY]

thrust washer 1.gear 1

[Name] [Note] [QTY]

change gear 1.gear 1

34/9

[Name] [Note] [QTY]

needle bearing - 38X43X25 1
