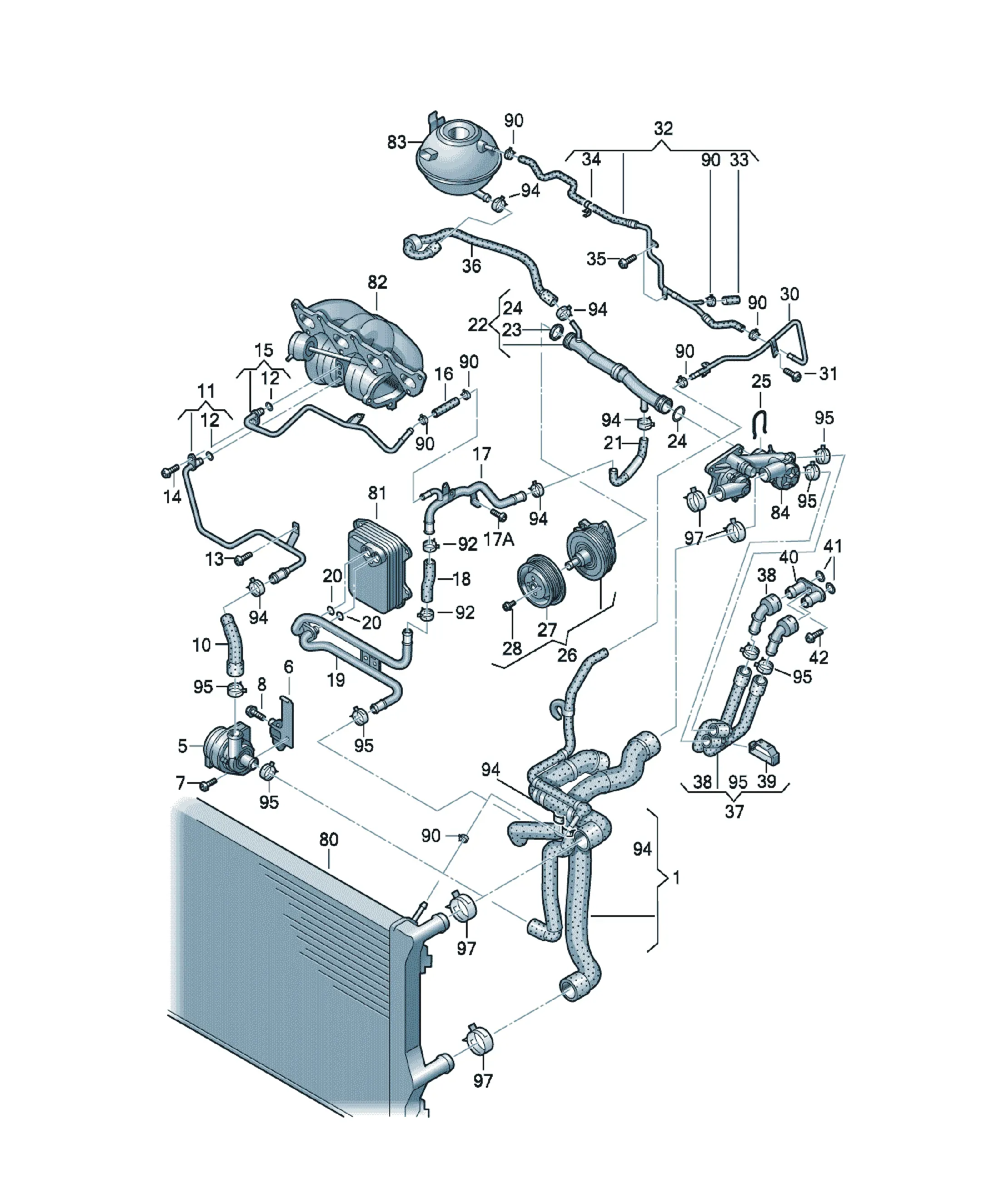

Система охлаждения

[Name] [Note] [QTY]

Coolant hose feed/return 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant pipe feed 1

[Name] [Note] [QTY]

O-ring 9,6X2,5 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M7X14 1

[Name] [QTY]

Oval hexagon socket head bolt 1

[Name] [Note] [QTY]

Coolant pipe return 1

[Name] [QTY]

Coolant hose 1

(Coolant pipe> coolant pipe)

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 2

[Name] [QTY]

Coolant hose 1

(Coolant pipe> coolant pipe)

[Name] [Note] [QTY]

Coolant pipe 1

use if required: N 028 201 2 2

[Name] [Note] [QTY]

O-ring 15X1,8 2

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 35,0X6,0 1

[Name] [QTY]

O-ring 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant pump with glued in sealing ring 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Included in position: 26

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X12 4

[Name] [Note] [QTY]

round hd. screw M6X22 3

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Cap closure 7,5MM 1

[Name] [Note] [QTY]

Clip A14-14XC01-14 1

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 2

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)

[Name] [QTY]

Coolant hose 1

(Coolant regulator housing > heat exchanger)

[Name] [QTY]

Quick acting coupling 2

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

connection piece 1

[Name] [QTY]

Double hose holder 1

[Name] [QTY]

Coolant pipe 1

heat exchanger

[Name] [Note] [QTY]

O-ring 17,12X2,62 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X30 1

[Name] [QTY]

Additional coolant pump 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 1

[Name] [Note] [QTY]

Hex collared bolt M12X1,5X65 1

[Name] [Note]

Cooler for coolant

see illustration, item: 121-084,30

[Name] [Note]

Oil cooler

see illustration, item: 115-013,23

[Name] [Note]

Exhaust gas turbocharger (water-cooled)

see illustration, item: 145-055,1

[Name] [Note]

Reservoir

see illustration, item: 121-084,20

[Name] [Note]

Coolant regulator housing with thermostat

see illustration, item: 121-084,1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
