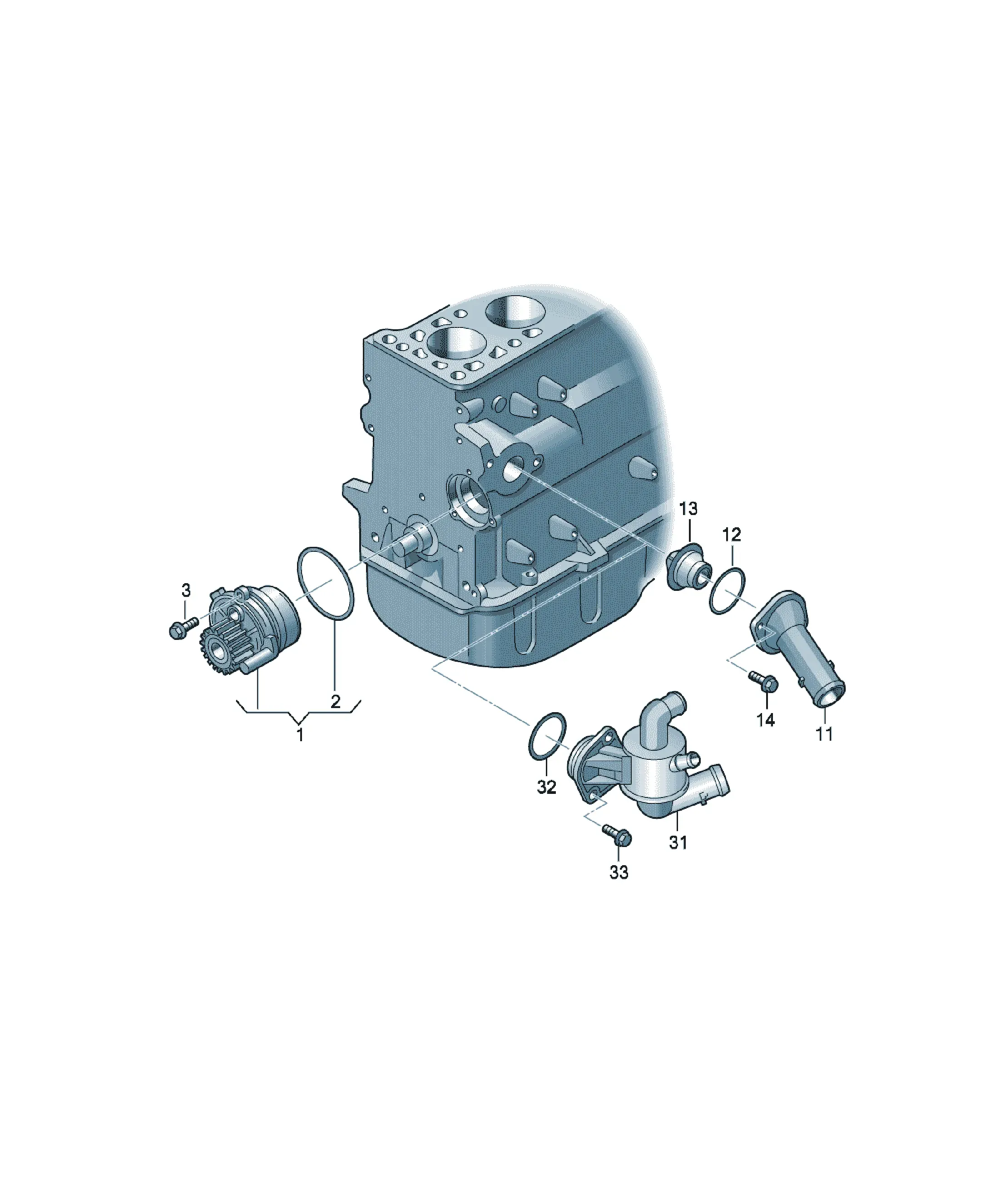

Водяной насос и термостат

[Name] [QTY]

Coolant pump with sealing ring 1

Old part

03L121011C Coolant pump with sealing ring 1

[Name] [QTY]

Coolant pump with sealing ring 1

Items supplied

03G121021 Impeller 1

038121017 friction ring 1

Alternative installation: 06B 121 017 A

038121119 seal ring 57X4 1

03L121148 Cover 1

03L121019C Bearing housing 1

038119111C Mounting 1

03L121031B pulley 1

Potential individual parts

[Name] [QTY]

Coolant pump with sealing ring 1

Potential individual parts

038121119 seal ring 57X4 1

[Name] [QTY]

Coolant pump with sealing ring 1

Items supplied

03G121021 Impeller 1

03C121199 Sleeve 1

03L121669 Shaft oil seal 1

Alternative installation: 03L 121 539 B

03L 121 539 C

038121119 seal ring 57X4 1

03L121019 Bearing housing 1

038119111C Mounting 1

03L121031B pulley 1

Potential individual parts

[Name]

Not for this model

[Name]

Not for this model

[Name]

Not for this model

[Name]

Not for this model

[Name] [Note] [QTY]

seal ring 57X4MM 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 1

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 87C-102C 1

Items supplied

housing 1

Cover 1

06B121119B seal ring 50X3,5 1

O-ring black 1

basic plate 1

disc 2

Spring 2

governor 1

Washer 1

Guide 1

Potential individual parts

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 87C-102C 1

4/2 WEGEVENTIL

Items supplied

housing 1

Cover 1

06B121119B seal ring 50X3,5 1

O-ring black 1

basic plate 1

disc 2

Spring 2

governor 1

Washer 1

Guide 1

Potential individual parts

[Name] [Note] [QTY]

seal ring 50X3,5MM 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 1
