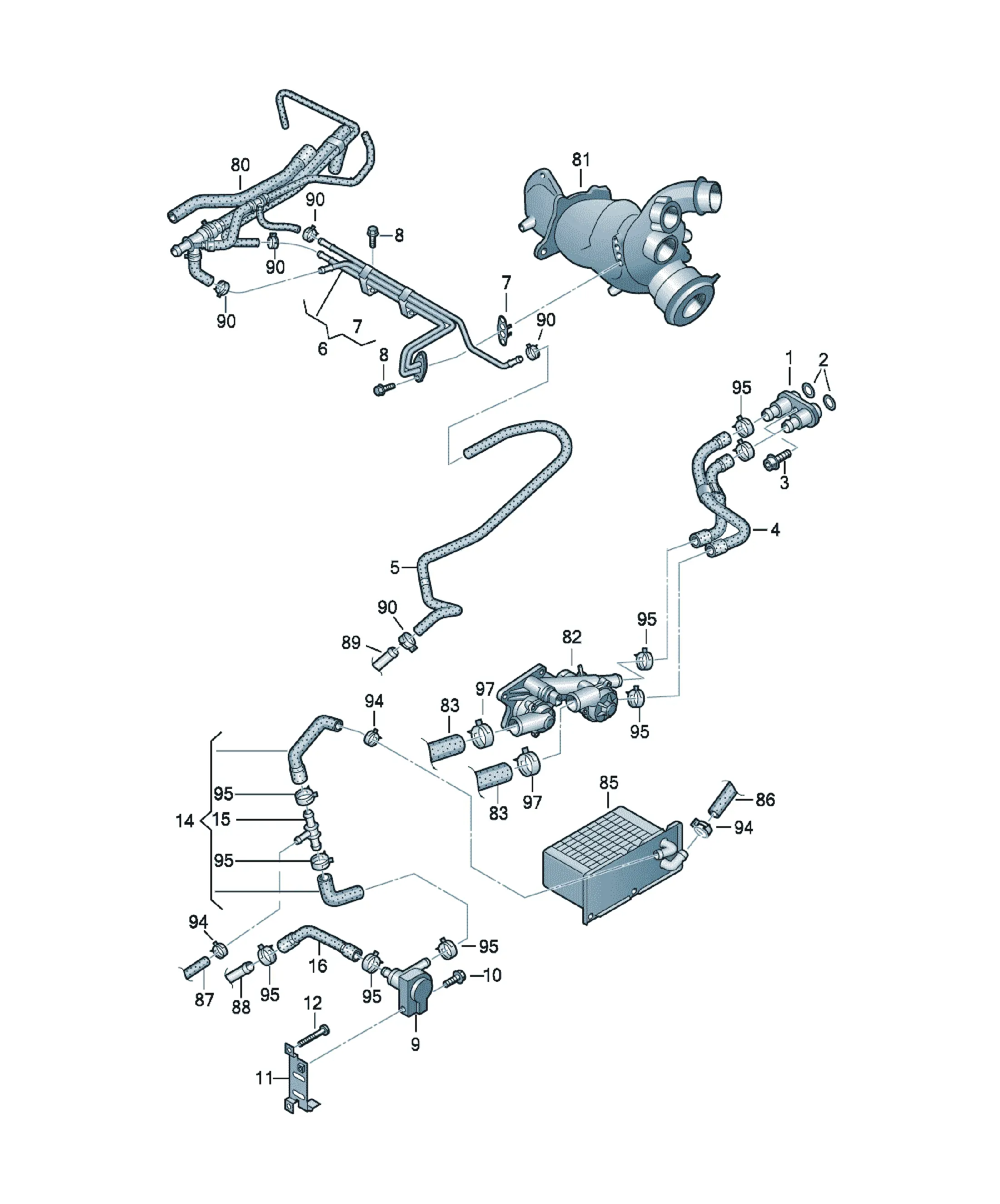

Система охлаждения

[Name] [QTY]

Coolant pipe 1

heat exchanger

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 1

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [Note] [QTY]

round hd. screw M6X50 2

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

t-piece 20X20X8 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

O-ring 17,12X2,62 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X30 1

[Name] [Note] [QTY]

Coolant hose feed/return 1

(Coolant regulator housing > heat exchanger)

[Name] [QTY]

Coolant hose 1

(coolant radiator>/pipe)

[Name] [Note] [QTY]

Coolant pipe feed/return 1

Exhaust gas turbocharger (water-cooled)

[Name] [Note] [QTY]

Seal stainl. steel 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 4

[Name] [Note]

Coolant hose

see illustration, item: 121-016,30

[Name] [Note]

Exhaust gas turbocharger

see illustration, item: 145-050,1

[Name] [Note]

Coolant regulator housing with thermostat

see illustration, item: 121-084,1

[Name] [Note]

Coolant hose

see illustration, item: 121-016,5

[Name] [Note]

Charge air cooler

see illustration, item: 133-030,8

[Name] [Note]

Coolant hose

see illustration, item: 121-016,30

[Name] [Note]

Coolant hose

see illustration, item: 121-016,30

[Name] [Note]

Coolant pipe

see illustration, item: 121-016,23

[Name] [Note]

Cooler for coolant

see illustration, item: 121-084,30

[Name] [QTY]

Additional coolant pump 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 1
