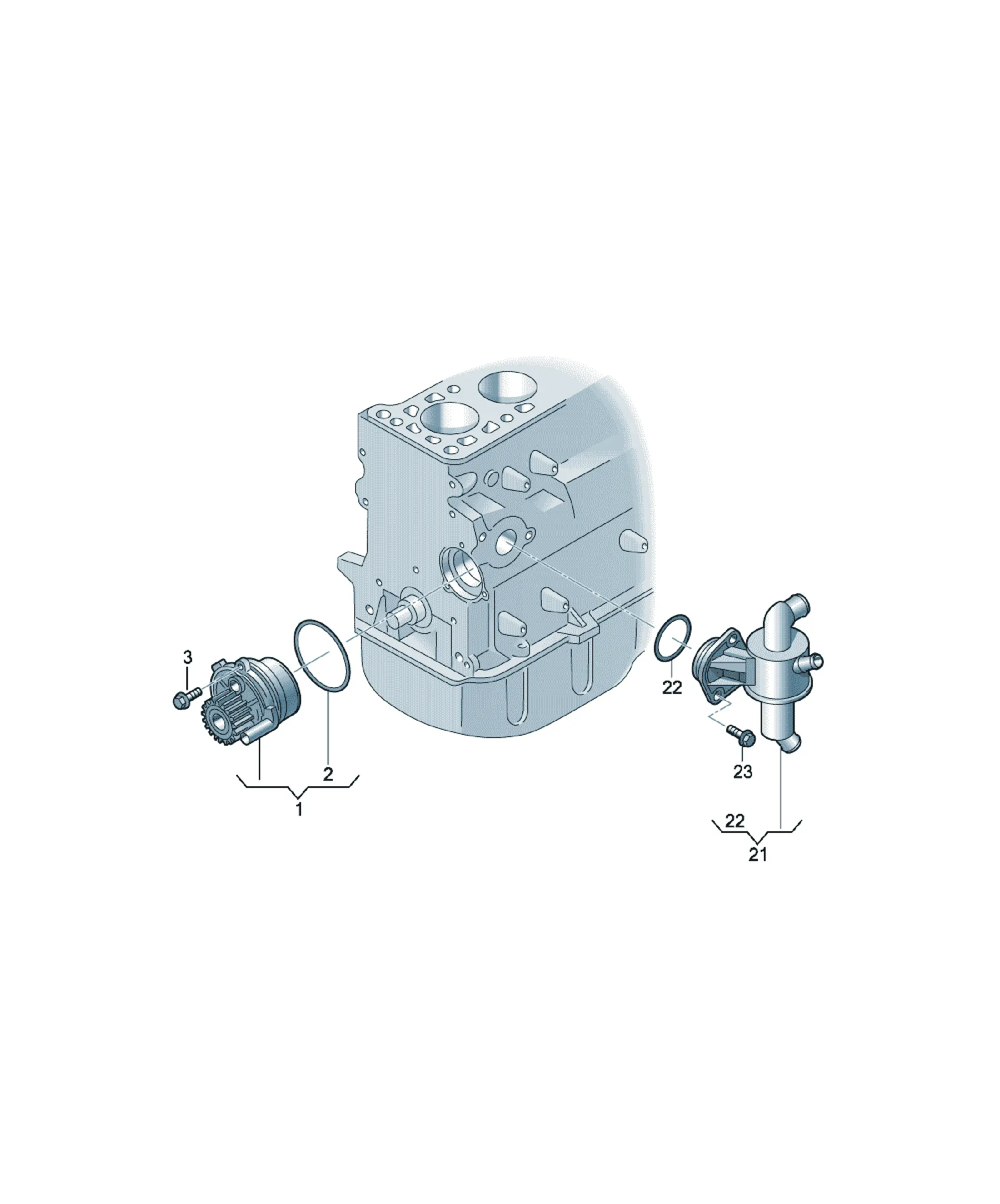

Водяной насос и термостат

[Name] [QTY]

Coolant pump with sealing ring 1

Items supplied

03G121021 Impeller 1

06B121017A friction ring 1

038121119 seal ring 57X4 1

03L121148 Cover 1

03L121019D Bearing housing 1

06B121015 Mounting 1

03L121031B pulley 1

Potential individual parts

[Name] [QTY]

Coolant pump with sealing ring 1

Old part

03L121011C Coolant pump with sealing ring 1

03L121011E Coolant pump with sealing ring 1

03L121011F Coolant pump with sealing ring 1

03L121011H Coolant pump with sealing ring 1

03L121011J Coolant pump with sealing ring 1

03L121011P Coolant pump with sealing ring 1

[Name] [Note] [QTY]

seal ring 57X4MM 1

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 92C-107C 1

and

Coolant regulator

Items supplied

housing 1

Cover 1

06B121119B seal ring 50X3,5 1

O-ring black 1

basic plate 1

disc 2

Spring 2

governor 1

Washer 1

Guide 1

Potential individual parts

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 92C-107C 1

and

Coolant regulator

the following can be used as an alternative:

03L 121 111 AN 1

Items supplied

housing 1

Cover 1

06B121119B seal ring 50X3,5 1

O-ring black 1

basic plate 1

disc 2

Spring 2

governor 1

Washer 1

Guide 1

Potential individual parts

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 92C 1

4/2 WEGEVENTIL

[Name] [Note] [QTY]

seal ring 50X4 1

[Name] [Note] [QTY]

seal ring 50X3,5MM 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 3

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 3
