Mounting parts

Exhaust system

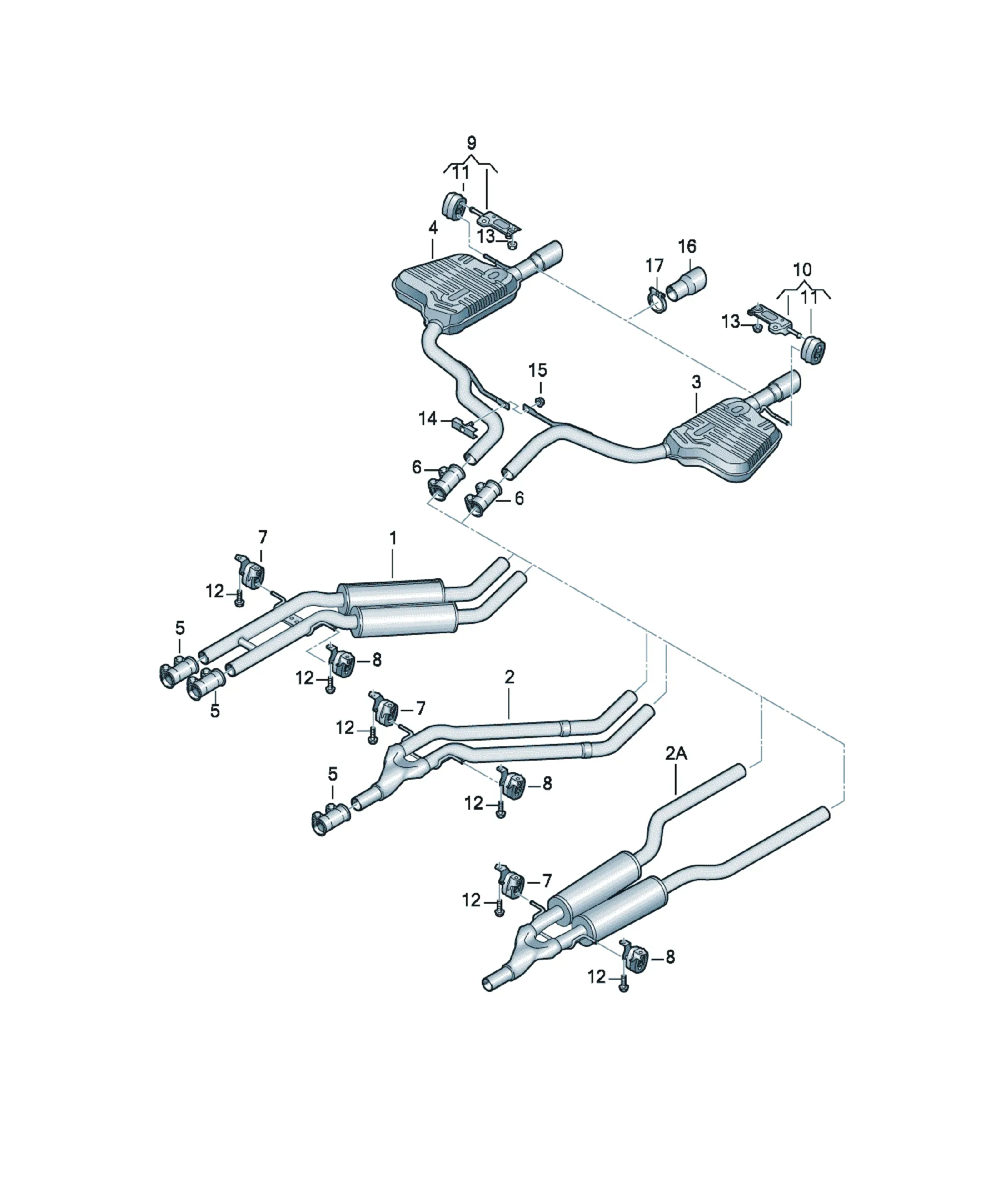

Assembly diagrams

11 diagrams

Parts

66 parts

4F0253409D Offers

[Name] [Model info] [QTY]
Centre silencer BKH 1
4F0253409P Offers

[Name] [Model info] [QTY]
Centre silencer 6-cylinder+ 1
BBJ,BDW
4F0253409N Offers

[Name] [Model info] [QTY]
Centre silencer 6-cylinder+ 1
AUK,BDX,BYU
4F0253144S Offers

[Name] [Note] [Model info] [QTY]
bracket for exhaust silencer left rear 4-cylinder+ 1
Petr. engine
4F0253144AE Offers

[Name] [Note] [Model info] [QTY]
Bracket left rear 4-cylinder+ 1
diesel eng.
4F0253144S Offers

[Name] [Note] [Model info] [QTY]
bracket for exhaust silencer left rear 6-cylinder 1
4F0253147 Offers

[Name] [Model info] [QTY]
Retaining ring 6-cylinder 1
4F0253147 Offers

[Name] [Model info] [QTY]
Retaining ring 4-cylinder+ 1
Petr. engine
4F0253147D Offers

[Name] [Model info] [QTY]
Retaining ring 4-cylinder+ 1
diesel eng.
Replacements: 4E0253147K
N90994402 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X30 4
N01508315 Offers

[Name] [Note] [QTY]
Hexagon collar nut M8 4
8E0253375 Offers

[Name] [QTY]
Console 1
N90486204 Offers

[Name] [Note] [QTY]
hex. nut with washer M8 4
4F0253681E Offers

[Name] [Note] [Model info] [QTY]
Trim for exhaust tail pipe 55MM diesel eng. 2
4F0253681B Offers

[Name] [Note] [Model info] [QTY]
Trim for exhaust tail pipe 55MM Petr. engine 2
not for: 4F0 253 609 AH
4F0 253 610 AH
8E0253139 Offers

[Name] [Note] [QTY]
Clamp 55MM 2
4F0253409Q Offers

[Name] [Note] [Model info] [QTY]
Centre silencer
Pipe diameter rear: 45MM
F 4F-6-190 000>>* BPJ+ 1
automatic
4F0253409F Offers

[Name] [Model info] [QTY]
Exhaust pipe 6-cylinder+ 1
BPP,BSG
4F0253409J Offers

[Name] [Model info] [QTY]
Centre silencer BPJ+ 1
manual gearbox
4F0253409J Offers

[Name] [Note] [Model info] [QTY]
Centre silencer
Pipe diameter rear: 50MM
F >> 4F-6-190 000* AVANT+ 1
BPJ+
automatic
4F0253409Q Offers

[Name] [Note] [Model info] [QTY]
Centre silencer
Pipe diameter front: 45MM
F >> 4F-6-190 000* Saloon+ 1
BPJ+
automatic
4F0253409K Offers

[Name] [Model info] [QTY]
Centre silencer 4-cylinder+ 1
diesel eng.
4F0253409R Offers

[Name] [Model info] [QTY]
Centre silencer BYK 1
4F0253609A Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left AVANT+ 1
contains additional positions: 16 BKH
4F0253609AA Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left 6-cylinder+ 1
contains additional positions: 16 diesel eng.
4F0253609AC Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left 4-cylinder+ 1
contains additional positions: 16 diesel eng.
4F0253609AJ Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left BYK 1
contains additional positions: 16
4F0253609AH Offers

[Name] [Note] [Model info] [QTY]
Rear silencer
Pipe diameter front: 45MM
F 4F-6-190 001>>* left BPJ+ 1
contains additional positions: 16 automatic
4F0253609T Offers

[Name] [Note] [Model info] [QTY]
Rear silencer
Pipe diameter front: 50MM
F >> 4F-6-190 000* left AVANT+ 1
contains additional positions: 16 BPJ+
automatic
4F0253609D Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left BPJ+ 1
contains additional positions: 16 manual gearbox
4F0253609D Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left BDW,BDX,BBJ, 1
contains additional positions: 16 BYU,AUK
4F0253609J Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left "ROK"+ 1
contains additional positions: 16 BDW
4F0253609AH Offers

[Name] [Note] [Model info] [QTY]
Rear silencer
Pipe diameter front: 45MM
F >> 4F-6-190 000* left Saloon+ 1
contains additional positions: 16 BPJ+
automatic
4F0253609K Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left Saloon+ 1
contains additional positions: 16 BKH
4F0253610D Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right BDW,BDX,BBJ, 1
contains additional positions: 16 BYU,AUK
4F0253610AJ Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right BYK 1
contains additional positions: 16
4F0253610A Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right AVANT+ 1
contains additional positions: 16 BKH
4F0253610AA Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right 6-cylinder+ 1
contains additional positions: 16 diesel eng.
4F0253610AC Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right 4-cylinder+ 1
contains additional positions: 16 diesel eng.
4F0253610D Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right BPJ+ 1
contains additional positions: 16 manual gearbox
4F0253610AH Offers

[Name] [Note] [Model info] [QTY]
Rear silencer
Pipe diameter front: 45MM
F 4F-6-190 001>>* right BPJ+ 1
contains additional positions: 16 automatic
4F0253610AH Offers

[Name] [Note] [Model info] [QTY]
Rear silencer
Pipe diameter front: 45MM
F >> 4F-6-190 000* right Saloon+ 1
contains additional positions: 16 BPJ+
automatic
4F0253610T Offers

[Name] [Note] [Model info] [QTY]
Rear silencer
Pipe diameter front: 50MM
F >> 4F-6-190 000* right AVANT+ 1
contains additional positions: 16 BPJ+
automatic
4F0253610J Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right "ROK"+ 1
contains additional positions: 16 BDW
Petr. engine
4F0253610K Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right Saloon+ 1
contains additional positions: 16 BKH
1K0253141G Offers

[Name] [Note] [Model info] [QTY]
dual clip 55X95MM 4-cylinder 1
6-cylinder+
diesel eng.
1K0253141F Offers

[Name] [Note] [Model info] [QTY]
dual clip 50X95MM 6-cylinder+ 2
Petr. engine
1K0253141F Offers

[Name] [Note] [Model info] [QTY]
dual clip 50X95MM BPJ+ 2
manual gearbox
1K0253141F Offers

[Name] [Note] [Model info] [QTY]
dual clip 50X95MM
F >> 4F-6-190 000* AVANT+ 2
BPJ+
automatic
1K0253141K Offers

[Name] [Note] [Model info] [QTY]
dual clip 45X95MM
F >> 4F-6-190 000* Saloon+ 2
BPJ+
automatic
1K0253141F Offers

[Name] [Note] [Model info] [QTY]
dual clip 50X95MM 6-cylinder 2
4-cylinder+
diesel eng.
1K0253141K Offers

[Name] [Note] [Model info] [QTY]
dual clip 45X95MM
F 4F-6-190 001>>* BPJ+ 2
automatic
1K0253141K Offers

[Name] [Note] [Model info] [QTY]
dual clip 45X95MM BYK 1
4F0253144AC Offers

[Name] [Note] [Model info] [QTY]
Bracket right front 4-cylinder+ 1
diesel eng.
4F0253144AH Offers

[Name] [Note] [Model info] [QTY]
Bracket right front BPJ 1
4F0253144M Offers

[Name] [Note] [Model info] [QTY]
bracket for exhaust silencer right front BYK 1
4F0253144P Offers

[Name] [Note] [Model info] [QTY]
Bracket right front 6-cylinder+ 1
diesel eng.
4F0253144AH Offers

[Name] [Note] [Model info] [QTY]
Bracket
F 4F-6-000 001>> right front 6-cylinder+ 1
Petr. engine
4F0253144AB Offers

[Name] [Note] [Model info] [QTY]
Bracket left front BPJ 1
4F0253144AG Offers

[Name] [Note] [Model info] [QTY]
Bracket
F 4F-6-000 001>> left front 6-cylinder+ 1
Petr. engine
4F0253144AB Offers

[Name] [Note] [Model info] [QTY]
Bracket left front 4-cylinder+ 1
diesel eng.
4F0253144N Offers

[Name] [Note] [Model info] [QTY]
bracket for exhaust silencer left front BYK 1
4F0253144Q Offers

[Name] [Note] [Model info] [QTY]
Bracket left front 6-cylinder+ 1
diesel eng.
4F0253144AF Offers

[Name] [Note] [Model info] [QTY]
Bracket right rear 4-cylinder+ 1
diesel eng.
4F0253144R Offers

[Name] [Note] [Model info] [QTY]
bracket for exhaust silencer right rear 6-cylinder 1
4F0253144R Offers

[Name] [Note] [Model info] [QTY]
bracket for exhaust silencer right rear 4-cylinder+ 1
Petr. engine
