Mounting parts

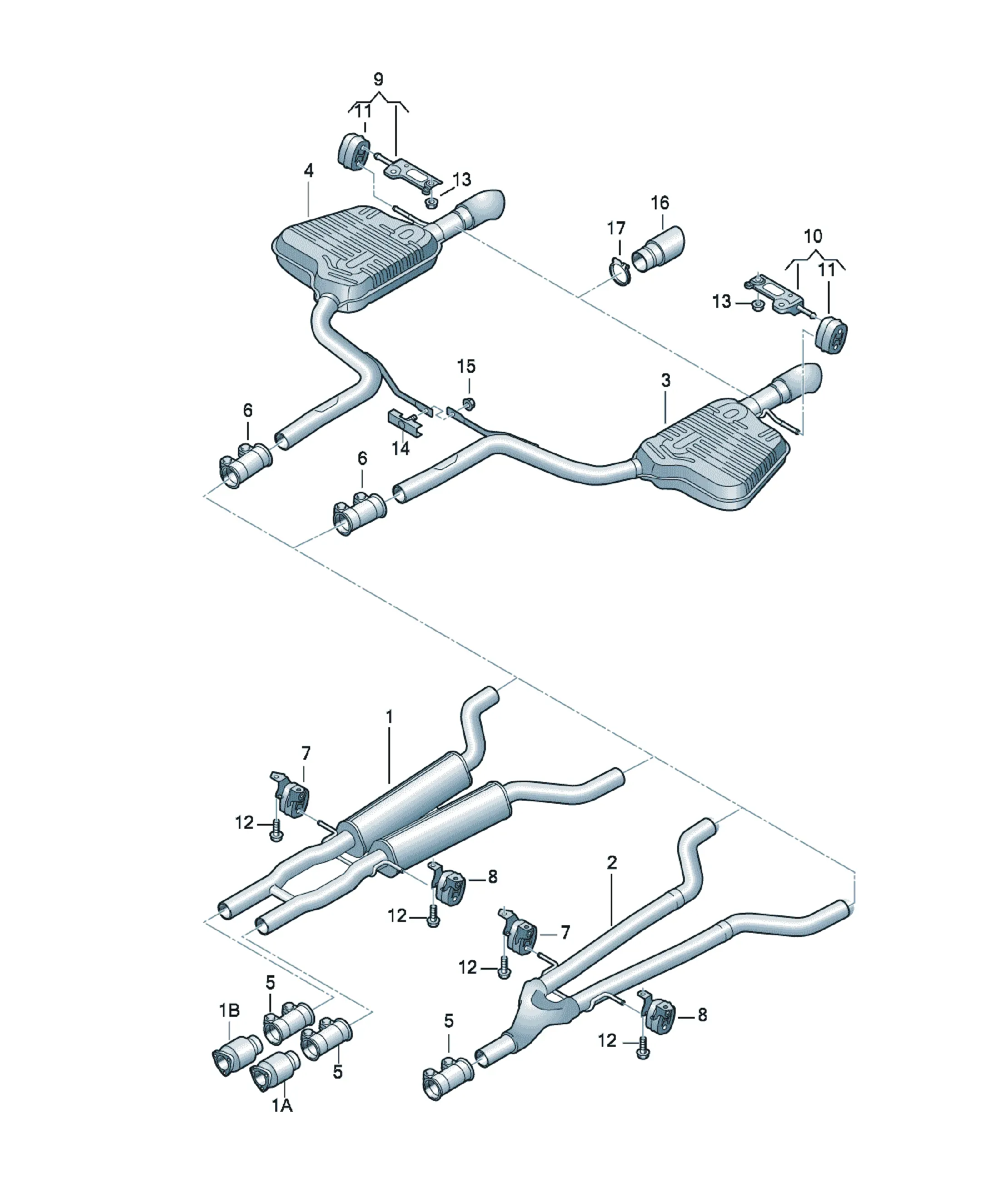

Exhaust system

Assembly diagrams

11 diagrams

Parts

42 parts

4F0253409 Offers

[Name] [Model info] [QTY]
Centre silencer 8-cylinder 1
4F0253409B Offers

[Name] [Model info] [QTY]
Centre silencer 6-cylinder+ 1
BBJ,BDW
4F0253409M Offers

[Name] [Model info] [QTY]
Centre silencer 10-cylinder 1
4F0253409D Offers

[Name] [Model info] [QTY]
Centre silencer 6-cylinder+ 1
AUK,BKH,BDX,
BYU
4F0253144S Offers

[Name] [Note] [QTY]
bracket for exhaust silencer left rear 1
4F0253147 Offers

[Name] [QTY]
Retaining ring 2
N90994402 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X30 4
N01508315 Offers

[Name] [Note] [QTY]
Hexagon collar nut M8 4
8E0253375 Offers

[Name] [QTY]
Console 1
N90486204 Offers

[Name] [Note] [QTY]
hex. nut with washer M8 1
4F0253681B Offers

[Name] [Model info] [QTY]
Trim for exhaust tail pipe 6, 8-cyl.+ 2
Petr. engine
4F0253681E Offers

[Name] [Model info] [QTY]
Trim for exhaust tail pipe diesel eng. 2
[Name] [Model info]
Not for this model 10-cylinder
[Name] [Model info]
Not for this model 10-cylinder
8E0253139 Offers

[Name] [Model info] [QTY]
Clamp 6-,8-cyl. 2
4F0253301H Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with front silencer left 10-cylinder 1
4F0253302 Offers

[Name] [Note] [Model info] [QTY]
Exhaust pipe with front silencer right 10-cylinder 1
4F0253409AB Offers

[Name] [Model info] [QTY]
Exhaust pipe 6-cylinder+ 1
diesel eng.
4F0253609AB Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left 6-cylinder+ 1
diesel eng.
4F0253609H Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left "ROK"+ 1
Saloon+
8-cylinder
4F0253609A Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left 6-cylinder+ 1
Petr. engine
4F0253609Q Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left 10-cylinder 1
Replacements: 4F0253609BP
4F0253609AL Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left "ROK"+ 1
Saloon+
10-cylinder
Replacements: 4F0253609BQ
4F0253609G Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left 8-cylinder 1
4F0253609K Offers

[Name] [Note] [Model info] [QTY]
Rear silencer left "ROK"+ 1
6-cylinder
4F0253610K Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right "ROK"+ 1
6-cylinder
4F0253610H Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right "ROK"+ 1
Saloon+
8-cylinder
4F0253610AL Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right "ROK"+ 1
Saloon+
10-cylinder
Replacements: 4F0253610BL
4F0253610Q Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right 10-cylinder 1
Replacements: 4F0253610BK
4F0253610AB Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right 6-cylinder+ 1
diesel eng.
4F0253610G Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right 8-cylinder 1
4F0253610A Offers

[Name] [Note] [Model info] [QTY]
Rear silencer right 6-cylinder+ 1
Petr. engine
1K0253141F Offers

[Name] [Note] [Model info] [QTY]
dual clip 50X95MM 6-cylinder+ 2
Petr. engine
1K0253141G Offers

[Name] [Note] [Model info] [QTY]
dual clip 55X95MM 8-cylinder 2
1K0253141H Offers

[Name] [Note] [Model info] [QTY]
dual clip 60X95MM 10-cylinder 2
1K0253141G Offers

[Name] [Note] [Model info] [QTY]
dual clip 55X95MM 6-cylinder+ 1
diesel eng.
1K0253141H Offers

[Name] [Note] [Model info] [QTY]
dual clip 60X95MM 10-cylinder 2
1K0253141G Offers

[Name] [Note] [Model info] [QTY]
dual clip 55X95MM 8-cylinder 2
1K0253141F Offers

[Name] [Note] [Model info] [QTY]
dual clip 50X95MM 6-cylinder 2
4F0253144M Offers

[Name] [Note] [QTY]
bracket for exhaust silencer right front 1
4F0253144N Offers

[Name] [Note] [QTY]
bracket for exhaust silencer left front 1
4F0253144R Offers

[Name] [Note] [QTY]
bracket for exhaust silencer right rear 1
