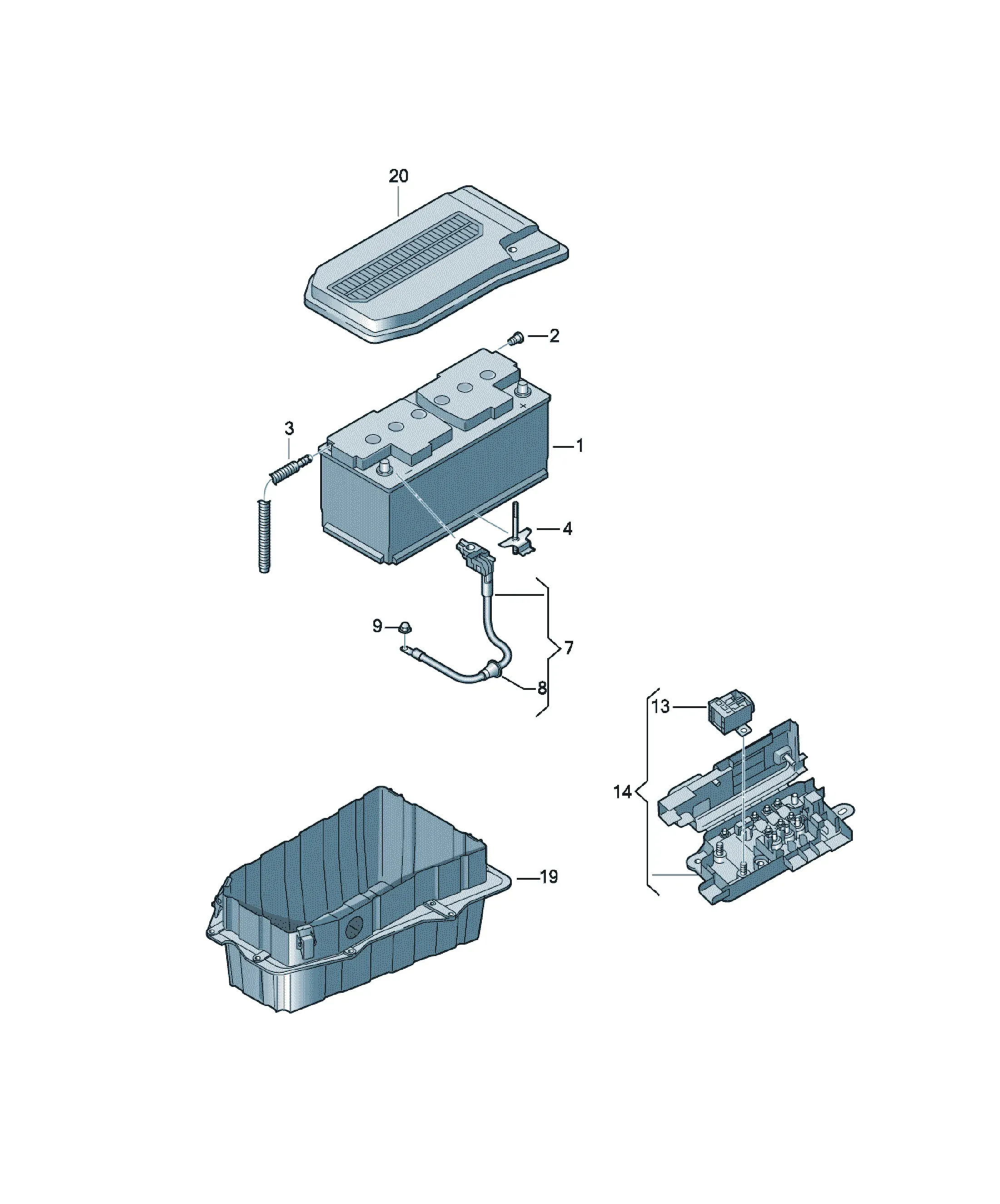

Battery

[Name] [Note] [QTY]

battery with charge state indicator, filled and charged 80AH/380A 1

Replacements: 000915089G

[Name] [Note] [QTY]

Battery, filled and charged 92AH/520A 1

fleece

Replacements: 000915089BE

[Name] [Note] [QTY]

Battery, filled and charged 105AH/580A 1

fleece

Replacements: 000915089BF

[Name] [Note] [QTY]

battery with charge state indicator, filled and charged 95AH/450A 1

Replacements: 000915089J

[Name] [Note] [QTY]

battery with charge state indicator, filled and charged 110AH/520A 1

Replacements: 000915089K

[Name] [Note] [QTY]

Battery, filled and charged 115AH/600A 1

Replacements: 000915105CF

[Name] [QTY]

Dividing element, pyrotechnic 1

Replacements: 4F0915519A

mating connector

1T0971613 Flat contact housing 2 pin 1

possible replacement yellow/green

3AA972571B flatcontact housing with cable 2 pin 1

yellow/orange

L=3344MM

8T0972571B flatcontact housing with cable 2 pin 1

Yellow/violet

L=4330MM

[Name] [QTY]

Main fuse socket with battery overload protection trip switch 1

mating connector

8T0972571B flatcontact housing with cable 2 pin 1

Yellow/violet

L=4330MM

[Name] [Note]

battery box

see illustration: 803-000

[Name] [QTY]

Bungs 1

[Name] [Note]

Cover

see illustration: 803-000

[Name] [Note] [QTY]

corrugated pipe 190MM 1

[Name] [QTY]

clamping piece 1

[Name] [QTY]

Control unit for battery monitoring 1

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Weld screw with cap nut M8X20 1
