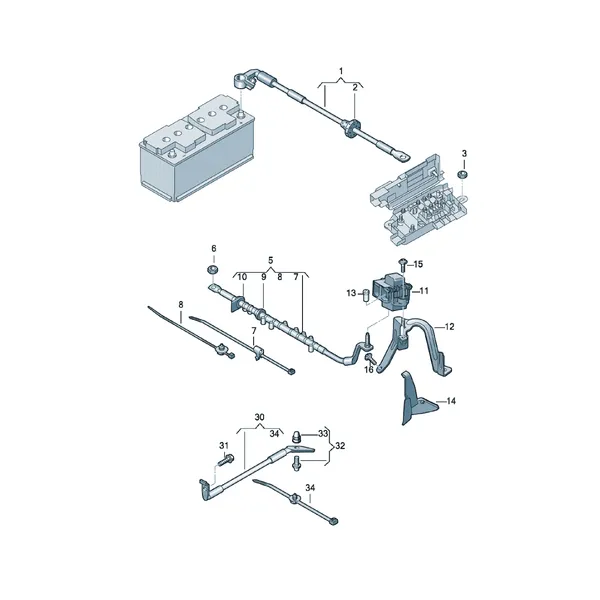

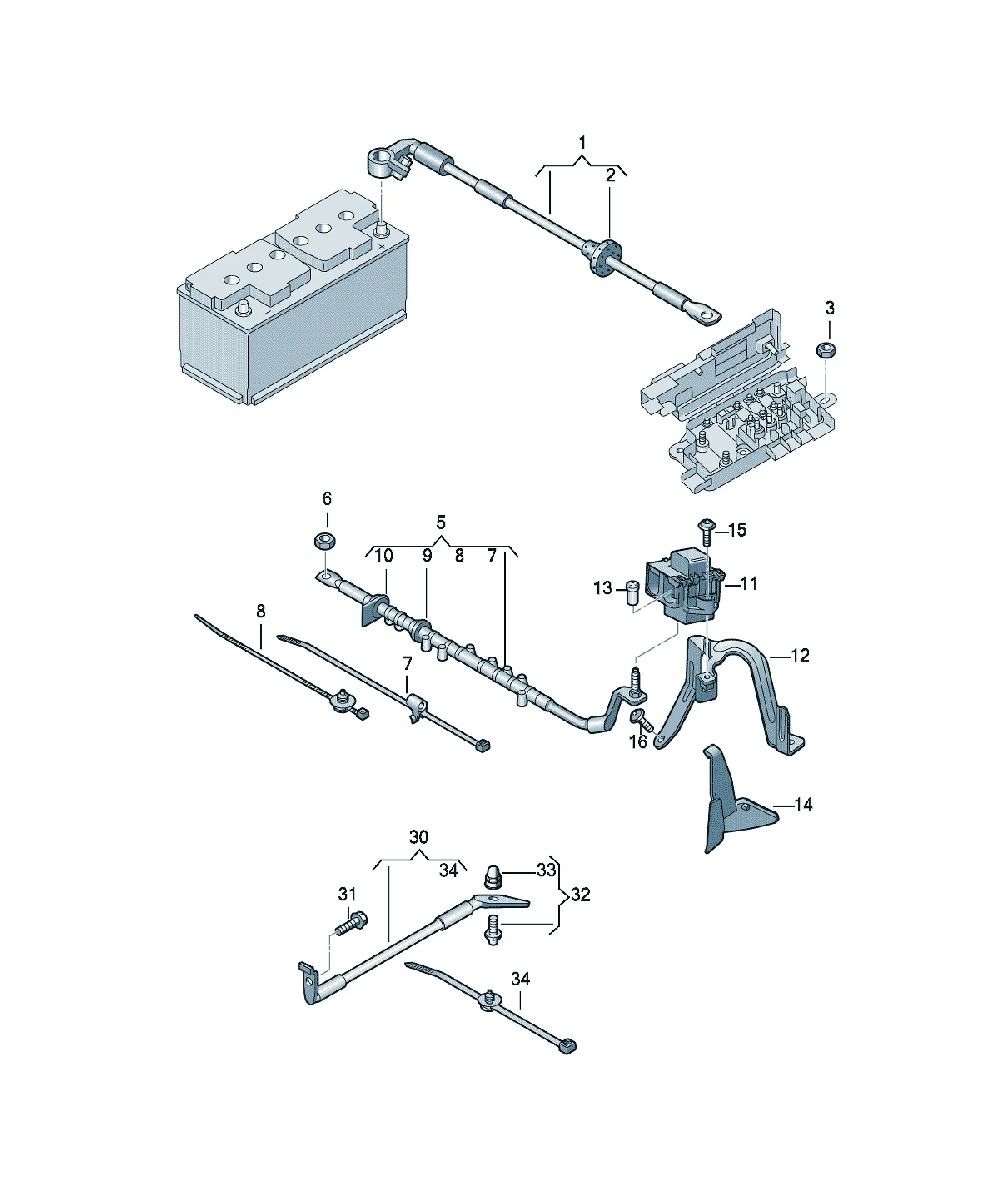

Battery wiring set

[Name] [Note] [Model info] [QTY]

Protective cap KL.30 PR:TE5+G1G 1

Connection piece

heater

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

Coupling element

wiring harness for interior

mating connector

1J0973332 Flat contact housing 2 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 2 pin 1

Connection piece black

Control unit for battery monitoring

mating connector

5Q0973802 flat connector housing 2 pin 1

black

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [Model info] [QTY]

Wiring set for battery + PR:J0Z,J2V, 1

for models with battery: 110AH/520A J0P

for models with battery: 115AH/600A

for models with battery: 105AH/580A

[Name] [Note] [Model info] [QTY]

Wiring set for battery + PR:J0R,J1U 1

for models with battery: 80AH/380A

for models with battery: 95AH/450A

[Name] [Note] [Model info] [QTY]

Wiring set for battery + PR:J0B 1

for models with battery: 92AH/520A

[Name] [QTY]

Grommet 1

No replacement part

[Name] [Note] [Model info] [QTY]

Slave start socket '+' PR:TA0,T8T, 1

and TE1,T41,TF1,

Wiring connector TC6,TH1

[Name] [Note] [Model info] [QTY]

Slave start socket '+' PR:TE5+G0R 1

and

Wiring connector

[Name] [Note] [Model info] [QTY]

Slave start socket '+' PR:TE5+G1G 1

and

Wiring connector

[Name] [Model info] [QTY]

holder for wiring harness PR:TE5+G0R 1

[Name] [Model info] [QTY]

holder for wiring harness PR:TE5+G1G 1

[Name] [Model info] [QTY]

holder for wiring harness PR:TA0,T8T, 1

TC6,TF1,TE1,

T41,TH1

[Name] [Note] [QTY]

contact pin '-' 1

[Name] [Note] [QTY]

Slave start socket '+' 1

modify in workshop

[Name] [QTY]

Cable holder 1

[Name] [Note] [QTY]

Socket head bolt M6X20 X

[Name] [Note] [QTY]

round hd. screw M6X12 X

[Name] [Note]

Earth line

see illustration: 915-000

Included in position: 7

[Name] [Note] [QTY]

Hexagon collar nut M6 1

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [Note] [Model info] [QTY]

Earth line 6.0 Ltr. Diesel eng.+ 1

12-cylinder

[Name] [Note] [Model info] [QTY]

Earth line 3.0Ltr. 6-cylinder+ 1

diesel eng.

[Name] [Note] [Model info] [QTY]

Earth line 3.0Ltr. 6-cylinder+ 1

Petr. engine

[Name] [Note] [Model info] [QTY]

Earth line 3.6ltr. 6-cylinder+ 1

Petr. engine

[Name] [Note] [Model info] [QTY]

Earth line 4.2 Ltr. 8-cylinder+ 1

Petr. engine

[Name] [Note] [Model info] [QTY]

Earth line 4.2 Ltr. 8-cylinder+ 1

diesel eng.

[Name] [Note] [QTY]

Hexagon bolt M10X20 1

bracket for engine

[Name] [Note] [QTY]

Hex collared bolt M8X20 1

bracket for engine right

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

bracket for engine right

[Name] [Note] [QTY]

Hexagon bolt M8X18 1

bracket for engine right

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X14 1

right

bracket for engine

[Name] [Note] [QTY]

Weld screw with cap nut M8X20 1

right

Side member

[Name] [Note] [QTY]

domed cap nut M8 X

Side member right

Replacements: WHT000869

[Name] [Note] [QTY]

Cable ties 4,6X200MM 1

For hole/material thickness: 6,5/2,5-3,5MM

toothed quadrant outer

[Name] [Model info] [QTY]

wiring harness for battery + and alternator PR:TA0,T8T, 1

TE1,T41,TF1,

(Main fuse socket > Slave socket) TC6,TH1

[Name] [Model info] [QTY]

wiring harness for battery + and alternator PR:TE5+G0R 1

(Main fuse socket > Slave socket)

[Name] [Model info] [QTY]

wiring harness for battery + and alternator PR:TE5+G1G 1

(Main fuse socket > Slave socket)

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [Note] [QTY]

Cable tie with holder for weld pin: 5X200MM X

5MM

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

For hole/material thickness: 6,5/0,3-3MM

[Name] [Note] [QTY]

Grommet 36/8 1
