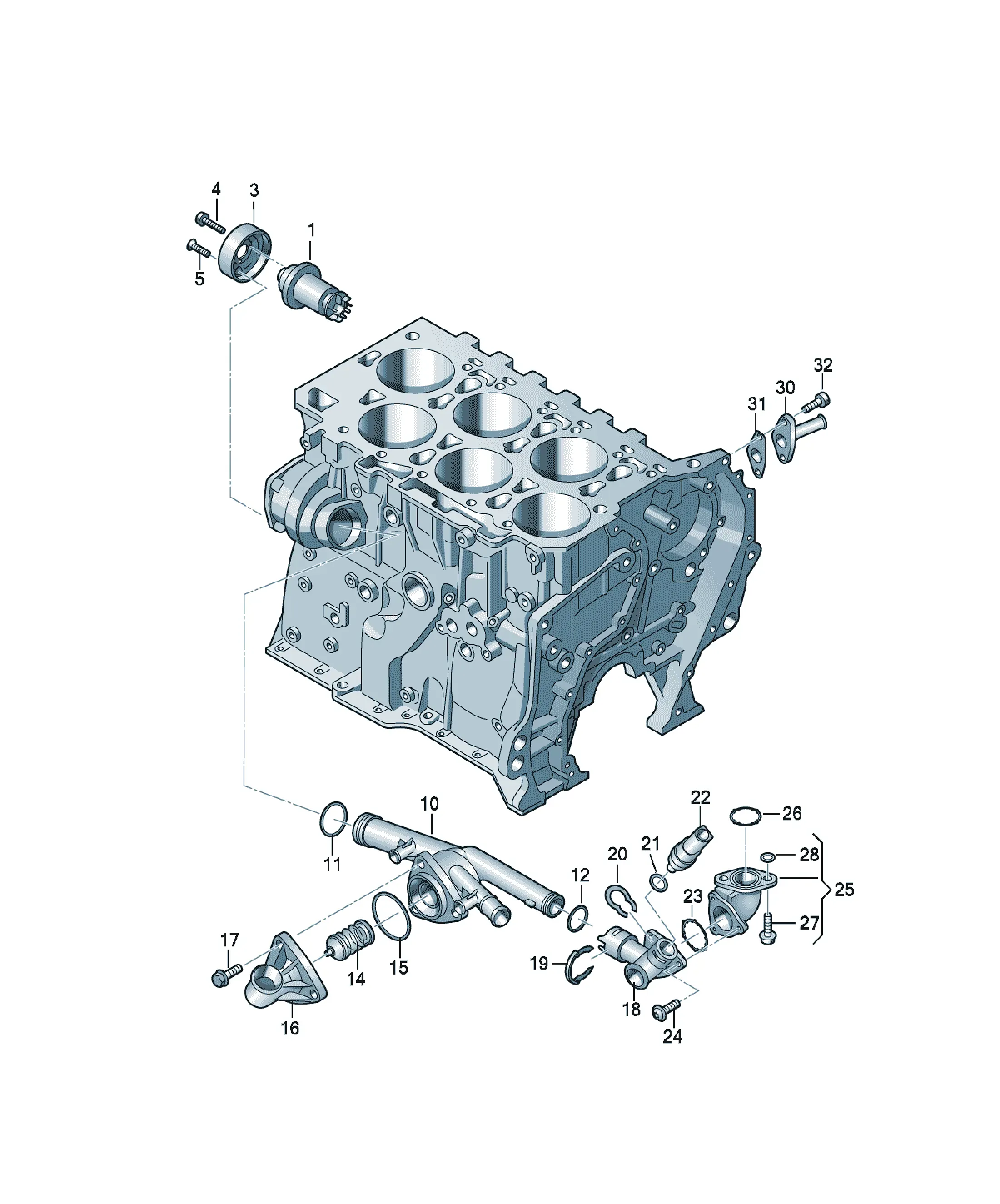

Cooling system

[Name] [QTY]

Coolant pump with glued in sealing ring 1

Replacements: 022121011BX

Old part

022121011A Coolant pump with glued in sealing ring 1

[Name] [QTY]

Coolant pump with glued in sealing ring 1

Exchange program parts: 022121011AX

Replacements: 022121011B

[Name] [QTY]

thermostat housing 1

[Name] [Note] [QTY]

O-ring 37,5X4X6 1

Replacements: WHT005190

[Name] [Note] [QTY]

seal ring 29X3,5 1

[Name] [Note] [QTY]

Coolant regulator 80C-94C 1

Replacements: 03H121113D

[Name] [Note] [QTY]

seal ring 56,2X3 1

[Name] [QTY]

cover for thermostat 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X20 3

[Name] [QTY]

Pipe union 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [Note] [QTY]

Coolant temperature sender 2 pin 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X25 3

[Name] [QTY]

water connection 1

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M8X25 2

[Name] [Note] [QTY]

O-ring 7X2 2

[Name] [QTY]

pulley 1

[Name] [QTY]

water connection 1

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X11 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X14 3

[Name] [Note] [QTY]

oval head countersunk bolt with multi-point socket head M6X18 3
