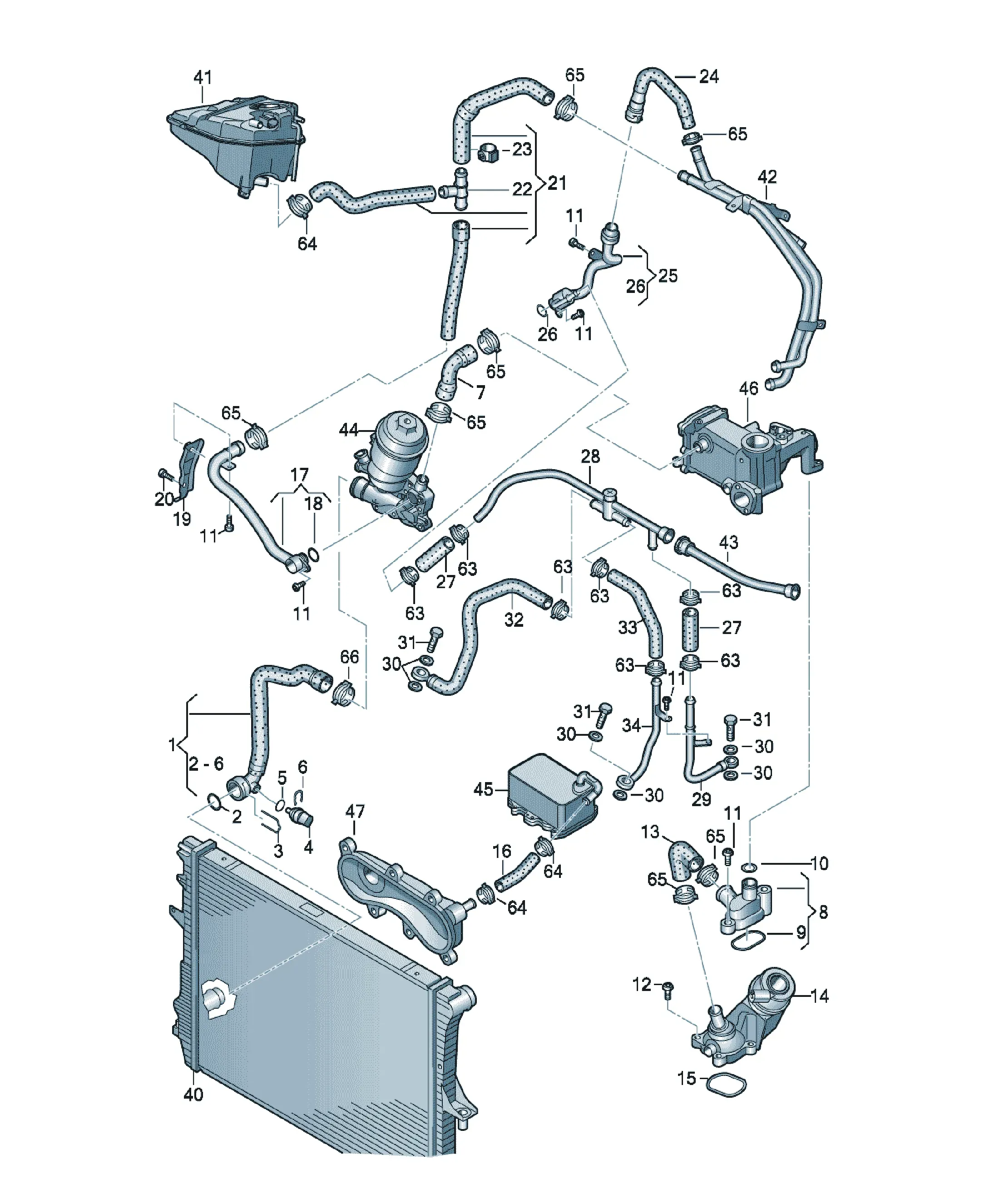

Cooling system

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

O-ring 16X2 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 X

[Name] [Note] [QTY]

round hd. screw M6X35 3

[Name] [QTY]

Coolant hose 1

Replacements: 059121625D

[Name] [QTY]

regulating valve 1

Replacements: 059121737AK

[Name] [Note] [QTY]

seal ring 1

Included in position: 14

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

Replacements: 059121075FE

[Name] [Note] [QTY]

O-ring 19,5X3 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X18 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

t-piece 20X16X20 1

[Name] [Note] [QTY]

Hose bracket 29 1

[Name] [Note] [QTY]

Coolant hose with quick release coupling rear 1

[Name] [QTY]

Coolant pipe 1

D - 18.02.2011>>

[Name] [QTY]

Coolant pipe 1

D >> - 18.02.2011

Replacements: 059121065CP

[Name] [Note] [QTY]

O-ring 16X2 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

Replacements: 059121086AG

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

retaining spring 38MM 2

[Name] [Note] [QTY]

seal ring 8X11,5 X

[Name] [Note] [QTY]

Banjo bolt 8 X

[Name] [QTY]

Coolant hose 1

Replacements: 059121454D

[Name] [QTY]

Coolant hose 1

Replacements: 059121453D

[Name] [QTY]

Breather line 1

Replacements: 059121465B

[Name] [QTY]

Coolant temperature sender 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Coolant pipe

see illustration: 121-016

[Name] [Note]

Coolant pipe

see illustration: 121-016

[Name] [Note]

oil filter with flange

see illustration: 115-057

[Name] [Note]

Oil cooler

see illustration: 115-057

[Name] [Note]

Cooler for exhaust recuperation

see illustration: 131-013

[Name] [Note]

Cover

see illustration: 103-052

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Intermediate flange 1

Replacements: 059121506E

[Name] [QTY]

seal ring 1

Replacements: 059121149E
