Temperature sensor

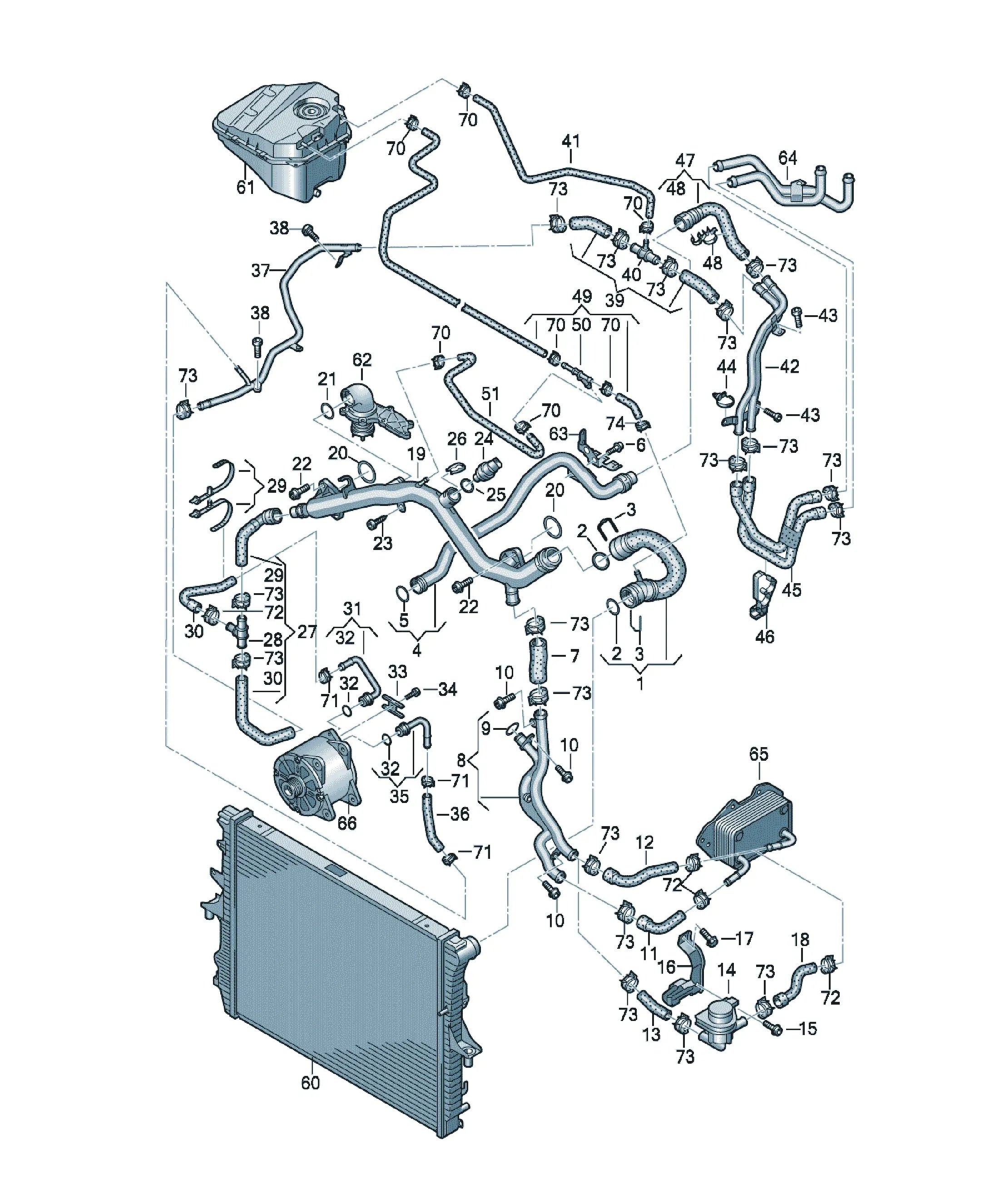

Cooling system

Assembly diagrams

24 diagrams

Parts

71 parts
  • 7L8122101D Offers

    [Name] [QTY]

    Coolant hose with quick release coupling 1

  • N10124408 Offers

    [Name] [Note] [QTY]

    Hexagon socket head bolt (combi) M6X20 3

  • 06E121082C Offers

    [Name] [QTY]

    Coolant hose 1

  • 06E121058E Offers

    [Name] [Model info] [QTY]

    Coolant hose PR:8Z4,8Z5, 1

    8Z6

  • 06E121088B Offers

    [Name] [Model info] [QTY]

    Coolant hose PR:8Z9 1

  • 06E121601C Offers

    [Name] [Model info] [QTY]

    Additional coolant pump PR:8Z9 1

    mating connector

    8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

    black

    Dark green

    Grey

  • N10124408 Offers

    [Name] [Note] [Model info] [QTY]

    Hexagon socket head bolt (combi) M6X20 PR:8Z9 1

  • 06E121521F Offers

    [Name] [Model info] [QTY]

    Bracket for additional coolant pump PR:8Z9 1

  • N10636501 Offers

    [Name] [Note] [Model info] [QTY]

    bolt,hex.hd.with shoul.(combi) M8X90 PR:8Z9 2

  • 06E121088F Offers

    [Name] [Model info] [QTY]

    Coolant hose PR:8Z9 1

  • 06E121045Q Offers

    [Name] [QTY]

    Coolant pipe 1

    D >> - 30.04.2012

    Replacements: 06E121045AE

    Items supplied

    Pipe 1

    06E121119C seal ring 23X28,4X4,5 1

    06E121119E seal ring 40,0X34,9X6,0 2

  • 06E121045AE Offers

    [Name] [Note] [QTY]

    Coolant pipe 1

    contains additional positions: 20,21

    D - 15.06.2015>>

    Replacements: 06E121045BA

    Items supplied

    Pipe 1

    06E121119C seal ring 23X28,4X4,5 1

    06E121119E seal ring 40,0X34,9X6,0 2

  • 06E121045Q Offers

    [Name] [Note] [QTY]

    Coolant pipe 1

    Alternative installation: 06E 121 045 AE

    contains additional positions: 20,21

    D - 30.04.2012>> - 15.06.2015

    Replacements: 06E121045AE

    Items supplied

    Pipe 1

    06E121119C seal ring 23X28,4X4,5 1

    06E121119E seal ring 40,0X34,9X6,0 2

  • 4E0121666 Offers

    [Name] [Note] [QTY]

    O-ring 38X4 2

  • 06E121119E Offers

    [Name] [Note] [QTY]

    seal ring 40,0X34,9X6,0 2

    Replacements: 06E121119K

  • 06E121119C Offers

    [Name] [Note] [QTY]

    seal ring 23X28,4X4,5 1

    center

    Replacements: 06E121119H

  • N10124408 Offers

    [Name] [Note] [QTY]

    Hexagon socket head bolt (combi) M6X20 3

  • N10412804 Offers

    [Name] [Note] [QTY]

    Hexagon socket head panel bolt 5X16 1

  • 06A919501A Offers

    [Name] [QTY]

    Coolant temperature sender 1

    Replacements: 05C919501

    mating connector

    1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

    8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

    black

  • N90316801 Offers

    [Name] [Note] [QTY]

    O-ring 19,6X3,65 1

  • 032121142 Offers

    [Name] [QTY]

    retaining spring 1

  • 7L8121065Q Offers

    [Name] [QTY]

    Coolant hose with quick release coupling 1

    D >> - 28.05.2012

  • 7P0121156L Offers

    [Name] [QTY]

    Coolant hose 1

    D - 28.05.2012>>

  • N90794401 Offers

    [Name] [Note] [QTY]

    t-piece 20X16X20 1

    D >> - 28.05.2012

  • 4A0820199 Offers

    [Name] [Note] [QTY]

    double cable tie 7X213/140MM X

    D >> - 28.05.2012

  • 4E0121142 Offers

    [Name] [Note] [QTY]

    retaining spring 38MM 2

  • 7L8121070AP Offers

    [Name] [QTY]

    Coolant hose 1

    D >> - 28.05.2012

  • 06E121647G Offers

    [Name] [Note] [QTY]

    Pipe union left 1

    Replacements: 06E121647J

  • 06E121647J Offers

    [Name] [Note] [QTY]

    Pipe union left 1

  • WHT001011 Offers

    [Name] [Note] [QTY]

    O-ring 12,2X1,65 2

  • 07L121077D Offers

    [Name] [QTY]

    Bracket 1

    D >> - 22.11.2010

    Replacements: 07L121077E

  • 07L121077E Offers

    [Name] [QTY]

    Bracket 1

    D - 22.11.2010>>

  • N10156206 Offers

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X30 1

  • 06E121647F Offers

    [Name] [Note] [QTY]

    Pipe union right 1

  • 7L8121070AQ Offers

    [Name] [QTY]

    Coolant hose 1

  • 7L8121065AC Offers

    [Name] [Note] [QTY]

    Coolant pipe right outer 1

  • N10632003 Offers

    [Name] [Note] [QTY]

    Oval socket head bolt with hex drive M6X16 2

  • 7L8122073F Offers

    [Name] [Note] [QTY]

    Coolant hose rear 1

  • 06E121065Q Offers

    [Name] [Note] [QTY]

    Coolant pipe plastic 1

    Items supplied

    Pipe 1

    N 90316801 O-ring 19,6X3,65 1

    Quick acting coupling 1

    Potential individual parts

  • N90761001 Offers

    [Name] [Note] [QTY]

    t-piece 20X20X8 1

  • 7L8122447M Offers

    [Name] [Note] [QTY]

    Vent hose rear 1

  • 7L8121070AD Offers

    [Name] [Note] [QTY]

    Coolant pipe rear 1

    feed/return

  • N10632001 Offers

    [Name] [Note] [QTY]

    Hexagon socket head bolt M6X16 2

  • N90772601 Offers

    [Name] [Note] [QTY]

    cable binder - corrugated pipe 4,6X200 1

  • 7L8122073E Offers

    [Name] [Note] [QTY]

    Coolant hose feed/return 1

  • 7L6121129 Offers

    [Name] [Note] [QTY]

    Bracket 18X22X22 1

  • 7L8121073C Offers

    [Name] [QTY]

    Coolant hose with quick release coupling 1

  • N10328301 Offers

    [Name] [Note] [QTY]

    Bracket 13X25 1

  • 7L6122447BD Offers

    [Name] [QTY]

    Coolant hose 1

  • N90316801 Offers

    [Name] [Note] [QTY]

    O-ring 19,6X3,65 1

  • 1K0121087B Offers

    [Name] [Note] [QTY]

    Distributor 8X8X8X60 1

  • 7L8122447K Offers

    [Name] [Note] [QTY]

    Vent hose front center 1

  • N91140701 Offers

    [Name] [Note] [QTY]

    Hexagon socket oval head bolt (combi) M6X18 1

  • [Name] [Note]

    Cooler for coolant

    see illustration: 121-071

  • [Name] [Note]

    Reservoir

    see illustration: 121-071

  • [Name] [Note]

    Coolant regulator

    see illustration: 121-006

  • [Name] [Note]

    Support

    see illustration: 971-007

  • [Name] [Note]

    Coolant pipe

    see illustration: 819-017

  • [Name] [Note]

    Oil cooler

    see illustration: 115-003

  • [Name] [Note]

    Alternator

    see illustration: 903-000

  • 06E121058D Offers

    [Name] [QTY]

    Coolant hose 1

    D - 07.06.2010>>

  • 06E121058F Offers

    [Name] [QTY]

    Coolant hose 1

    D >> - 07.06.2010

  • N90686701 Offers

    [Name] [Note] [QTY]

    Spring band clamp 14X12 X

  • N90926401 Offers

    [Name] [Note] [QTY]

    Spring band clamp 19X12 X

  • N90686902 Offers

    [Name] [Note] [QTY]

    Spring band clamp 23X12 X

  • N90687001 Offers

    [Name] [Note] [QTY]

    Spring band clamp 27X12 X

  • N90770201 Offers

    [Name] [Note] [QTY]

    Spring band clamp 17X12 X

  • 06E121044N Offers

    [Name] [QTY]

    Coolant pipe 1

    D - 07.06.2010>> - 12.06.2014

    Replacements: 06E121044AF

    Items supplied

    06E121500 Coolant pipe return 1

    06E121525 Coolant pipe feed 1

    N 90925001 O-ring 17X3 1

    Potential individual parts

  • 06E121044M Offers

    [Name] [QTY]

    Coolant pipe 1

    D >> - 07.06.2010

    Replacements: 06E121044AE

    Items supplied

    Coolant pipe return 1

    Coolant pipe feed 1

    N 90925001 O-ring 17X3 1

    Potential individual parts

  • 06E121044AF Offers

    [Name] [QTY]

    Coolant pipe 1

    D - 12.06.2014>>

    Items supplied

    06E121500 Coolant pipe return 1

    06E121525 Coolant pipe feed 1

    N 90925001 O-ring 17X3 1

    Potential individual parts

  • N90925001 Offers

    [Name] [Note] [QTY]

    O-ring 17X3 1
