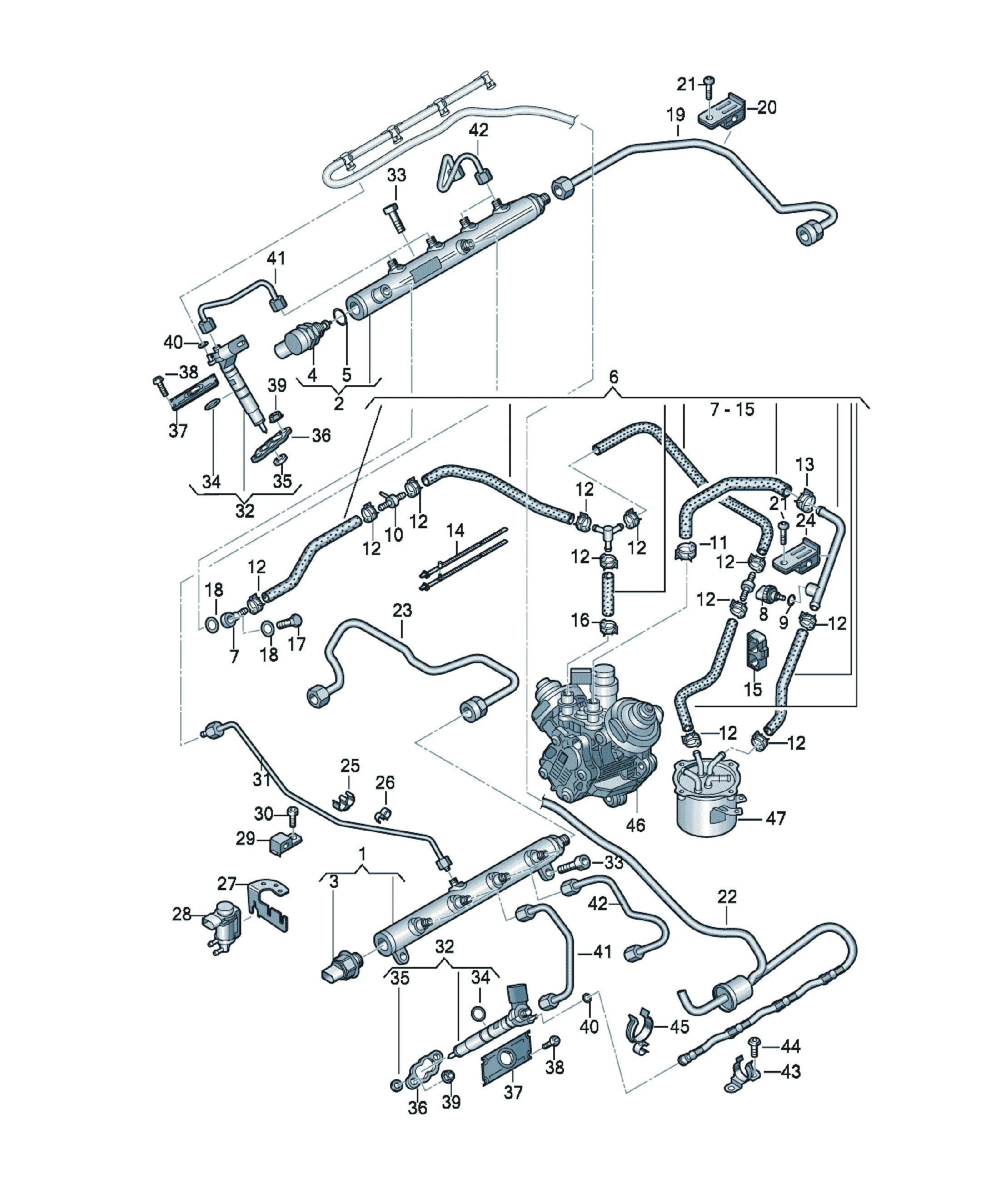

Fuel rail

[Name] [Note] [QTY]

Fuel rail left 1

[Name] [QTY]

t-piece 1

[Name] [Note] [QTY]

Spring band clamp 19X12 1

[Name] [Note] [QTY]

Spring band clamp 14,5X12 9

[Name] [Note] [QTY]

Spring band clamp 19X12 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Bracket 2 point 1

[Name] [Note] [QTY]

Spring band clamp 17X12 1

[Name] [Note] [QTY]

Banjo bolt M12 1

Replacements: N 0210719

[Name] [Note] [QTY]

seal ring 12X17 2

[Name] [QTY]

Fuel line 1

[Name] [Note] [QTY]

Fuel rail right 1

D - 09.11.2009>>

[Name] [Note] [QTY]

Fuel rail right 1

D >> - 09.11.2009

[Name] [QTY]

Retaining clip 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 1

[Name] [Model info] [QTY]

Fuel hose CCFA 1

D >> - 12.07.2010

[Name] [Model info] [QTY]

Fuel hose CCFC 1

D - 12.07.2010>>

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Retaining clip 1

[Name] [Note] [QTY]

Clip 5/6 3

[Name] [Note] [QTY]

Clip 6-7/8-9 3

[Name] [QTY]

Retainer for valve 1

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

1K0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Retaining clip 1

[Name] [Note] [QTY]

Pressure sensor 2000 BAR 1

M18X1,5

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 1

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Injector unit 8

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X80 4

[Name] [Note] [QTY]

O-ring 16,2X1,5 8

[Name] [QTY]

seal ring 8

Injector unit

[Name] [QTY]

tensioning plate 8

[Name] [QTY]

End cap 8

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M5X12 20

[Name] [Note] [QTY]

Hexagon collar nut M6 16

[Name] [Note] [QTY]

Pressure regulating valve 1

also use: 057 130 119 A 1

D - 31.05.2010>>

Accompanying details: 057130119A

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Note] [QTY]

Pressure regulating valve 1

also use: 057 130 119 A 1

D >> - 31.05.2010

Accompanying details: 057130119A

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Note] [QTY]

O-ring 2,8X1,5 8

Replacements: WHT007480

[Name] [Note] [QTY]

pressure pipe 3-4-5-6 4

[Name] [Note] [QTY]

pressure pipe 1-2-7-8 4

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 1

[Name] [Note] [QTY]

Clip 4,3/28 1

[Name] [Note]

high pressure pump

see illustration: 130-040

[Name] [Note]

Fuel filter

see illustration: 127-050

[Name] [QTY]

O-ring 1

[Name] [QTY]

Fuel line 1

feed- and return pipe in pairs

D >> - 17.05.2010

3-TEILIG

[Name] [QTY]

Fuel line 1

feed- and return pipe in pairs

D - 17.05.2010>>

2-TEILIG

[Name] [Note] [QTY]

Fuel line return 1

D - 17.05.2010>>

1-TEILIG

[Name] [Note] [QTY]

Banjo fitting 8X7 1

[Name] [QTY]

Temperature sensor 1

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note] [QTY]

O-ring 5,6X2N 1
