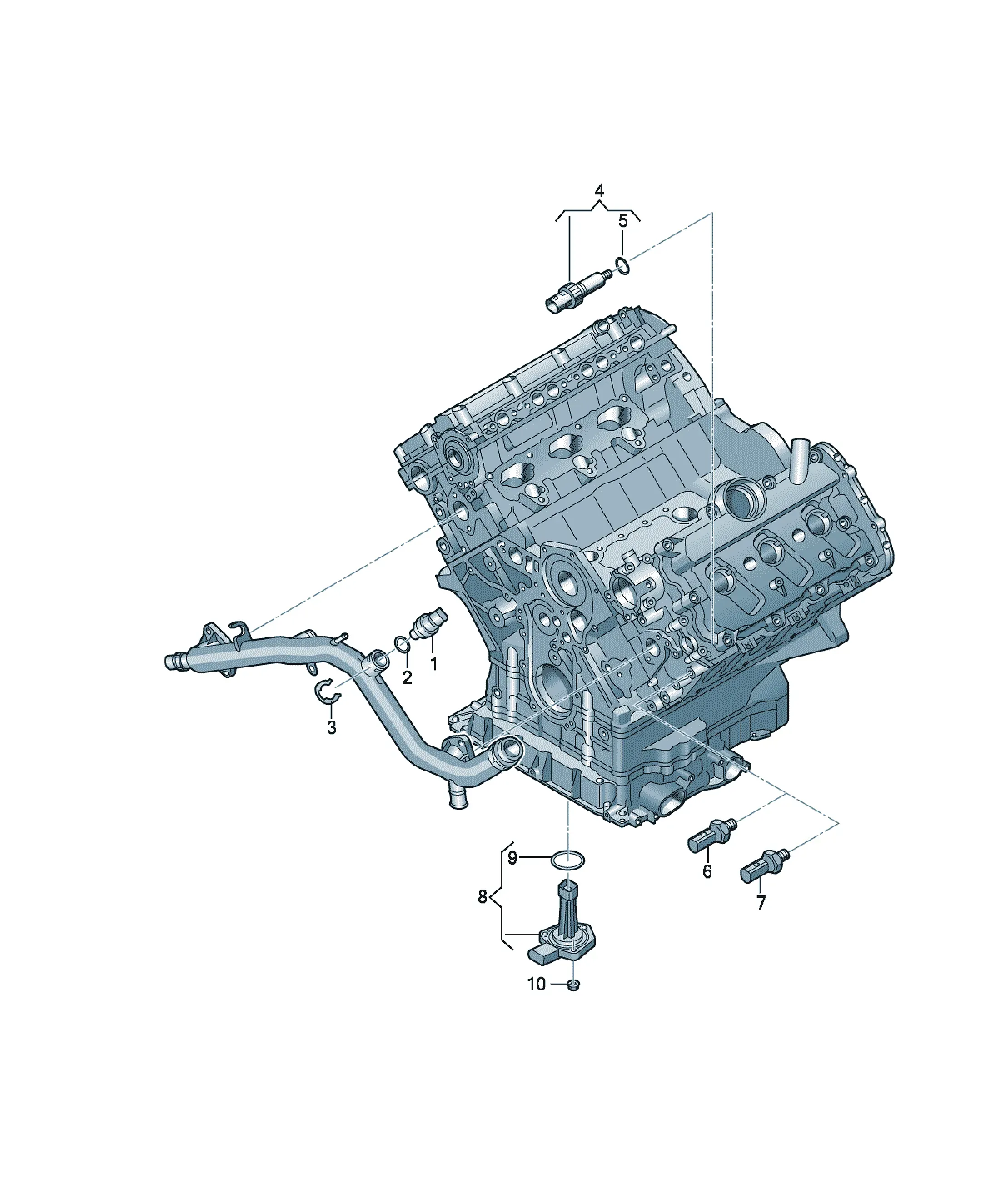

Engine and gearbox sensors

[Name] [Note] [QTY]

Coolant temperature sender 1

Coolant pipe

additionally to be used items: 2

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Hexagon collar nut M6 3

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

Coolant temperature sender

[Name] [Note] [QTY]

retaining spring 19,6X3,65 1

Coolant temperature sender

[Name]

Temperature sensor

Cylinder head

Not for this model

[Name]

Temperature sensor

Cylinder head

Not for this model

[Name] [Note] [QTY]

Oil pressure switch 0,75-1,05BAR 1

1 pin

Grey

M10X1

mating connector

1J0973081 Flat contact housing with contact locking mechanism 1 pin 1

black

[Name] [Note] [QTY]

Oil pressure switch 2,3-2,8BAR 1

2 pin

violet

M10X1

also to be used for: 06E.919.081.C

2,5-3,2BAR

mating connector

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

oil level sensor 1

Replacements: 03C907660S

mating connector

8K0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

seal ring 1
