Air suspension

Air suspension

Assembly diagrams

5 diagrams

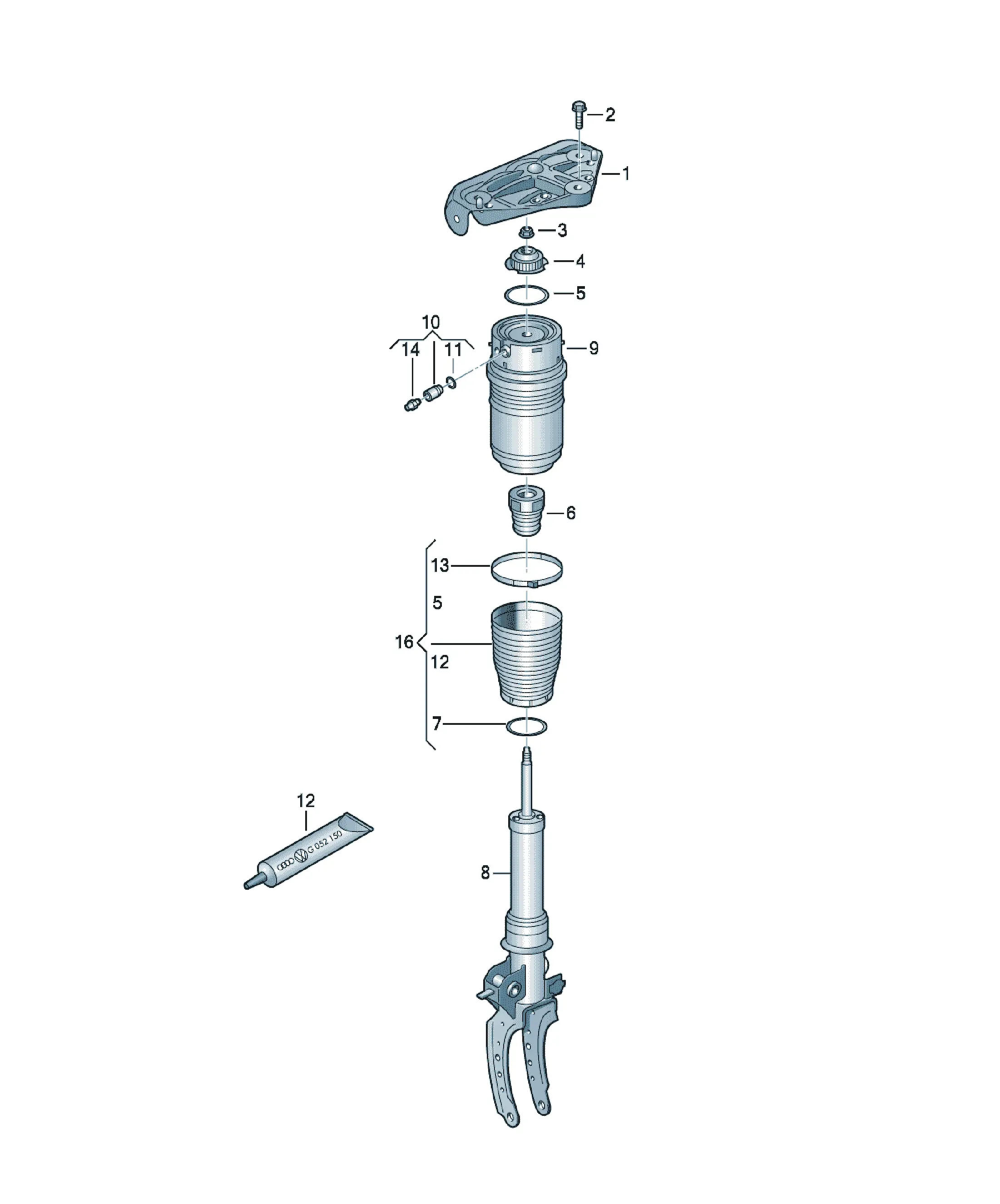

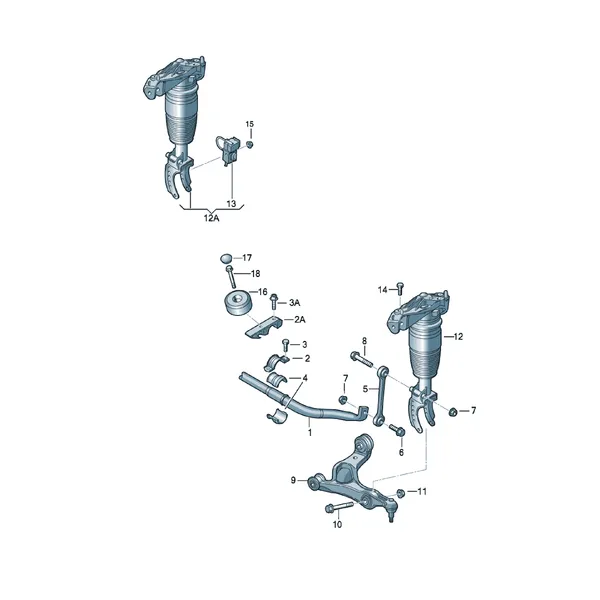

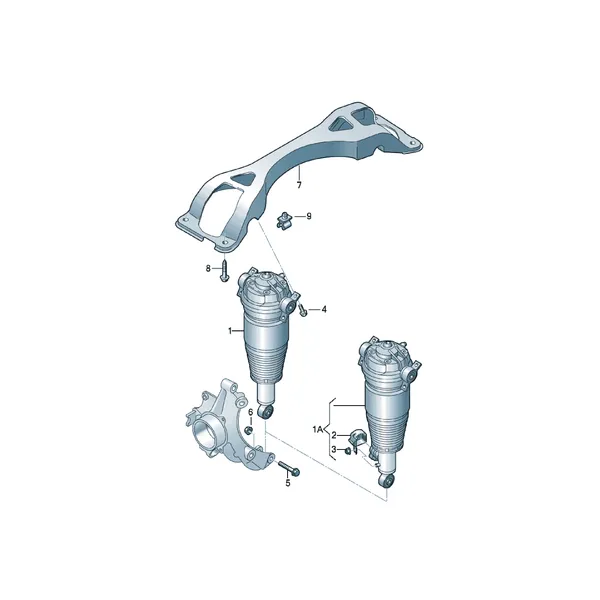

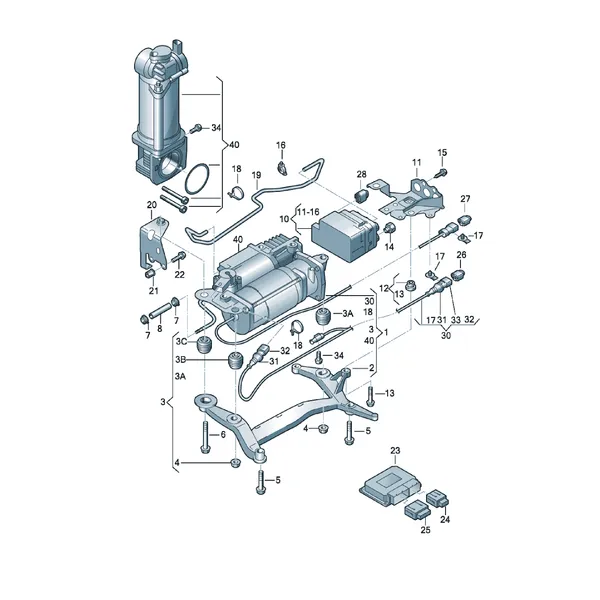

Air suspension diagram

Parts

17 parts

7L0412391E Offers

[Name] [Note] [QTY]
Bracket aluminium 2
7L0616813B Offers

[Name] [QTY]
Pressure valve 2
7L0616817 Offers

[Name] [QTY]
O-ring 2
G052150A2 Offers

[Name] [Note] [QTY]
Lithium lubricating grease 180G X
7L0616029 Offers

[Name] [QTY]
terminal 2
7L0616758 Offers

[Name] [Note] [QTY]
Connection piece M10X1 2
7L0498137 Offers

[Name] [QTY]
Protective sleeve with assembly parts 2
repair set
7L0412137A Protective sleeve 1
7L0616029 terminal 1
N 91095601 O-ring 96X4 1
N 90432402 O-ring 70X4N 1
G 052150A2 Lithium lubricating grease 180G 1
N10127707 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X26 8
N90966402 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M12X1,5 2
7L0412327A Offers

[Name] [Note] [QTY]
Mounting upper 2
N91095601 Offers

[Name] [Note] [QTY]
O-ring 96X4 2
7L0412303A Offers

[Name] [QTY]
rubber stop for shock absorber 2
N90432402 Offers

[Name] [Note] [QTY]
O-ring 70X4N 2
7L8413031L Offers

[Name] [Note] [QTY]
Gas shock absorber left 1
***** Caution Hazardous ******
Replacements: 7L8413031M
7L8413032L Offers

[Name] [Note] [QTY]
Gas shock absorber right 1
***** Caution Hazardous ******
Replacements: 7L8413032M
7L8616404B Offers

[Name] [Note] [QTY]
air spring right 1
7L8616403B Offers

[Name] [Note] [QTY]
air spring left 1
