Air suspension

Air suspension

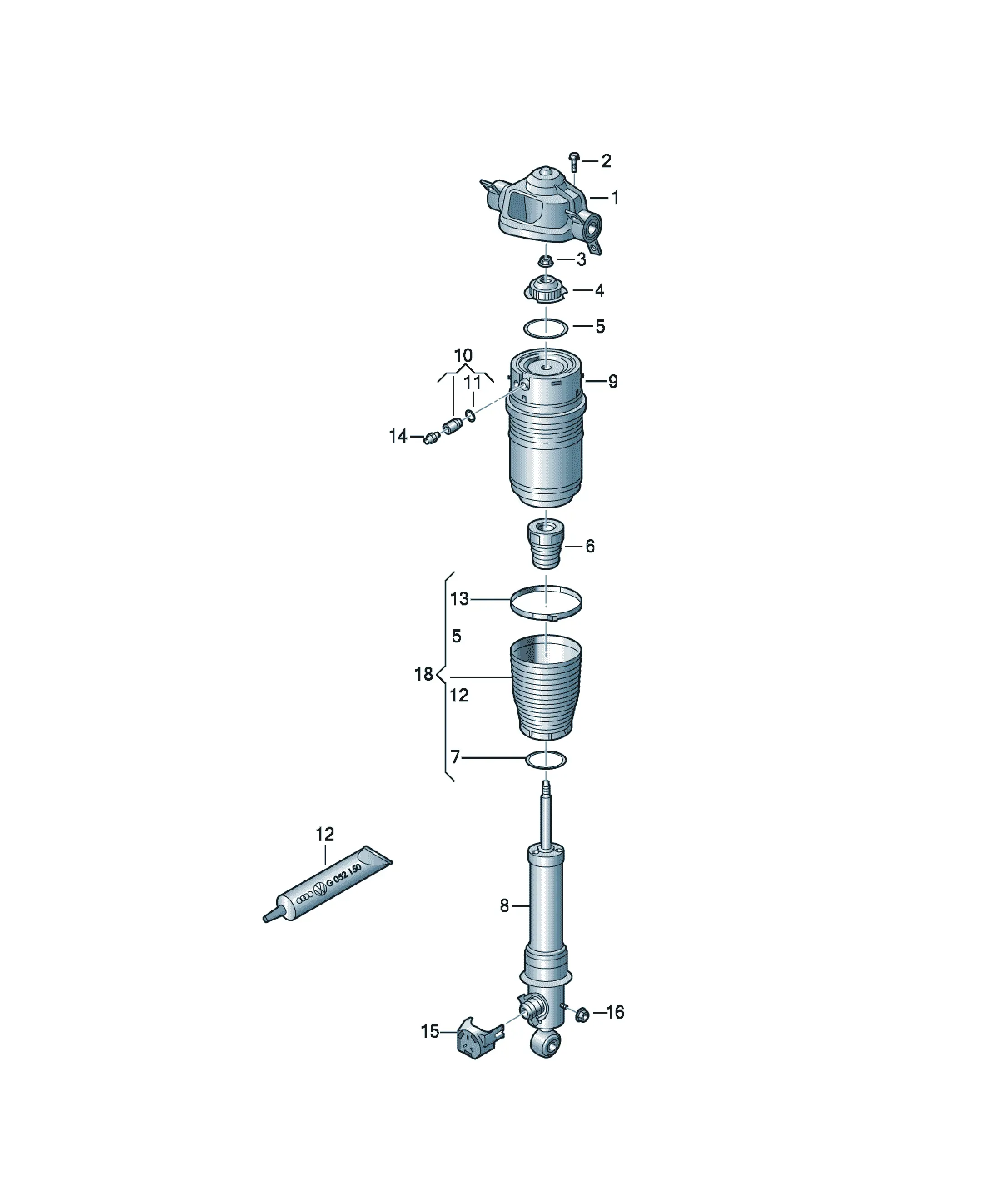

Assembly diagrams

5 diagrams

Parts

22 parts

7L0512301C Offers

[Name] [QTY]
Bracket 2
7L0616814B Offers

[Name] [QTY]
Pressure valve 2
7L0616817 Offers

[Name] [QTY]
O-ring 2
G052150A2 Offers

[Name] [Note] [QTY]
Lithium lubricating grease 180G X
7L0616029 Offers

[Name] [QTY]
terminal 2
7L0616758 Offers

[Name] [Note] [QTY]
Connection piece M10X1 2
7L0512136A Offers

[Name] [Note] [QTY]
Protective cap right 1
7L0512135A Offers

[Name] [Note] [QTY]
Protective cap left 1
N02300213 Offers

[Name] [Note] [QTY]
hexagon nut, self-locking M6 2
7L0498137 Offers

[Name] [QTY]
Protective sleeve with assembly parts 2
repair set
7L0412137A Protective sleeve 1
7L0616029 terminal 1
N 91095601 O-ring 96X4 1
N 90432402 O-ring 70X4N 1
G 052150A2 Lithium lubricating grease 180G 1
N10127707 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X26 8
N90966402 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M12X1,5 2
7L0412327A Offers

[Name] [Note] [QTY]
Mounting upper 2
N91095601 Offers

[Name] [Note] [QTY]
O-ring 96X4 2
7L0512131C Offers

[Name] [QTY]
Stop buffer 2
N90432402 Offers

[Name] [Note] [QTY]
O-ring 70X4N 2
7L8513029F Offers

[Name] [Note] [QTY]
Gas shock absorber left 1
D >> - 02.04.2012
Replacements: 7L8513029M
7L8513028M Offers

[Name] [Note] [QTY]
Gas shock absorber right 1
D - 02.04.2012>>
Replacements: 7L8513028N
7L8513029M Offers

[Name] [Note] [QTY]
Gas shock absorber left 1
D - 02.04.2012>>
Replacements: 7L8513029N
7L8513028A Offers

[Name] [Note] [QTY]
Gas shock absorber right 1
D >> - 02.04.2012
Replacements: 7L8513028M
4L0616503 Offers

[Name] [Model info] [QTY]
air spring 12-cylinder 2
7L8616503B Offers

[Name] [Model info] [QTY]
air spring 6-,8-cyl. 2
