Mounting parts

Front body panel

Assembly diagrams

16 diagrams

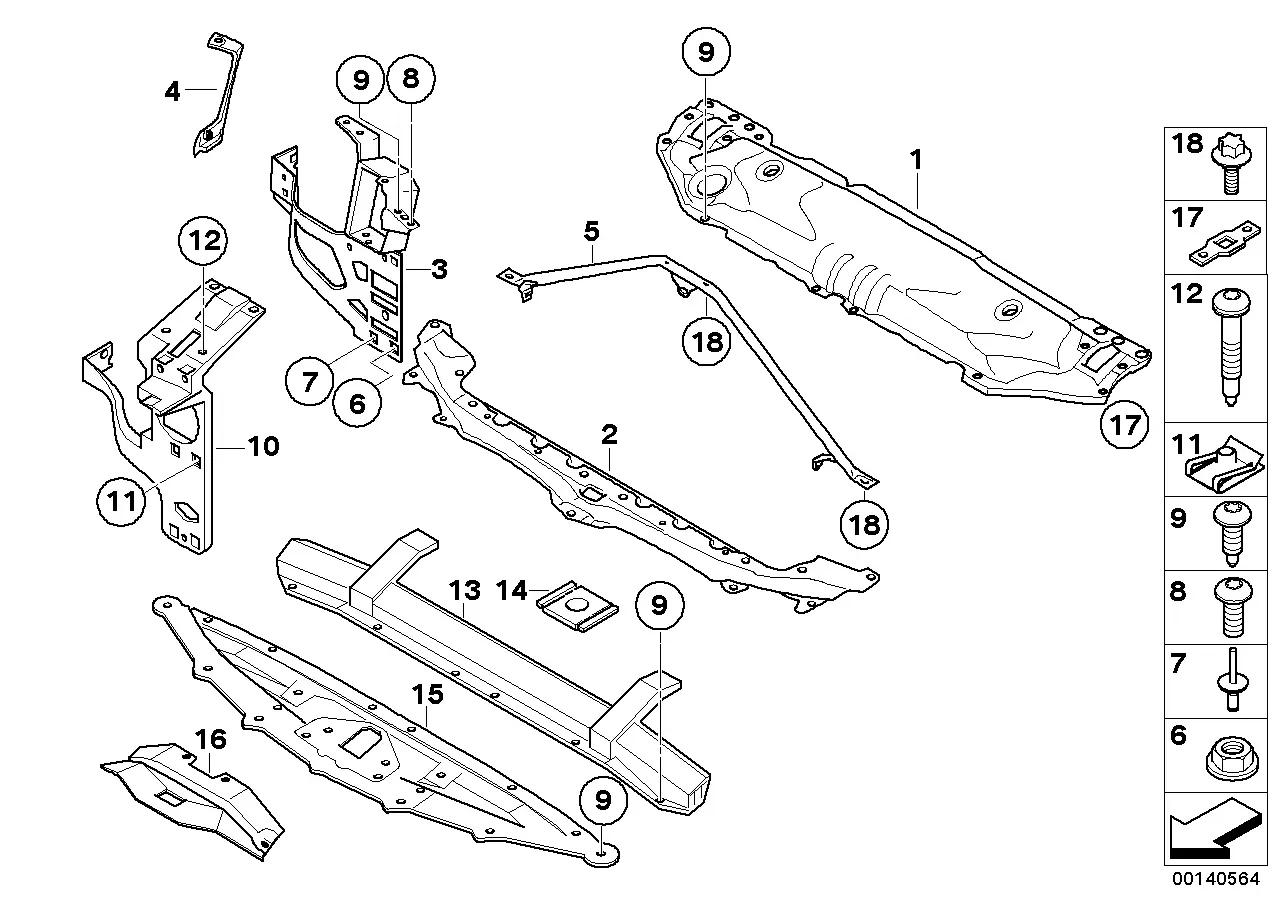

Front body panel diagram

Parts

14 parts

Label Repair work aluminium
71217145087 Offers

EN/FR
QTY: 1
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
51647033741 Offers

?
QTY: 1
only in conjunction with
Reconditioned part number: ?
Weight: 1.330
Old part number: ?
51647163462 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.420
Old part number: 51647054360
51647163483 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.540
Old part number: 51647033731
51647163484 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.540
Old part number: 51647033732
51647161451 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.146
Old part number: 51647060813
51647161452 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.146
Old part number: 51647060814
51647033745 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.250
Old part number: ?
51117070183 Offers

M8
QTY: 8
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.010
Old part number: 51111835625
07147077319 Offers

M6
QTY: 4
Reconditioned part number: ?
Weight: 0.003
Old part number: ?
07146959923 Offers

ISA M6X18 SW
QTY: 8
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.010
Old part number: 07140421710
07147263759 Offers

ISA M6X21
QTY: 10
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.010
Old part number: 07147119148
51717070096 Offers

?
QTY: 2
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
51717063831 Offers

M8X23
QTY: 4
Reconditioned part number: ?
Weight: 0.016
Old part number: ?
