Mounting parts

Head-up display

Assembly diagrams

16 diagrams

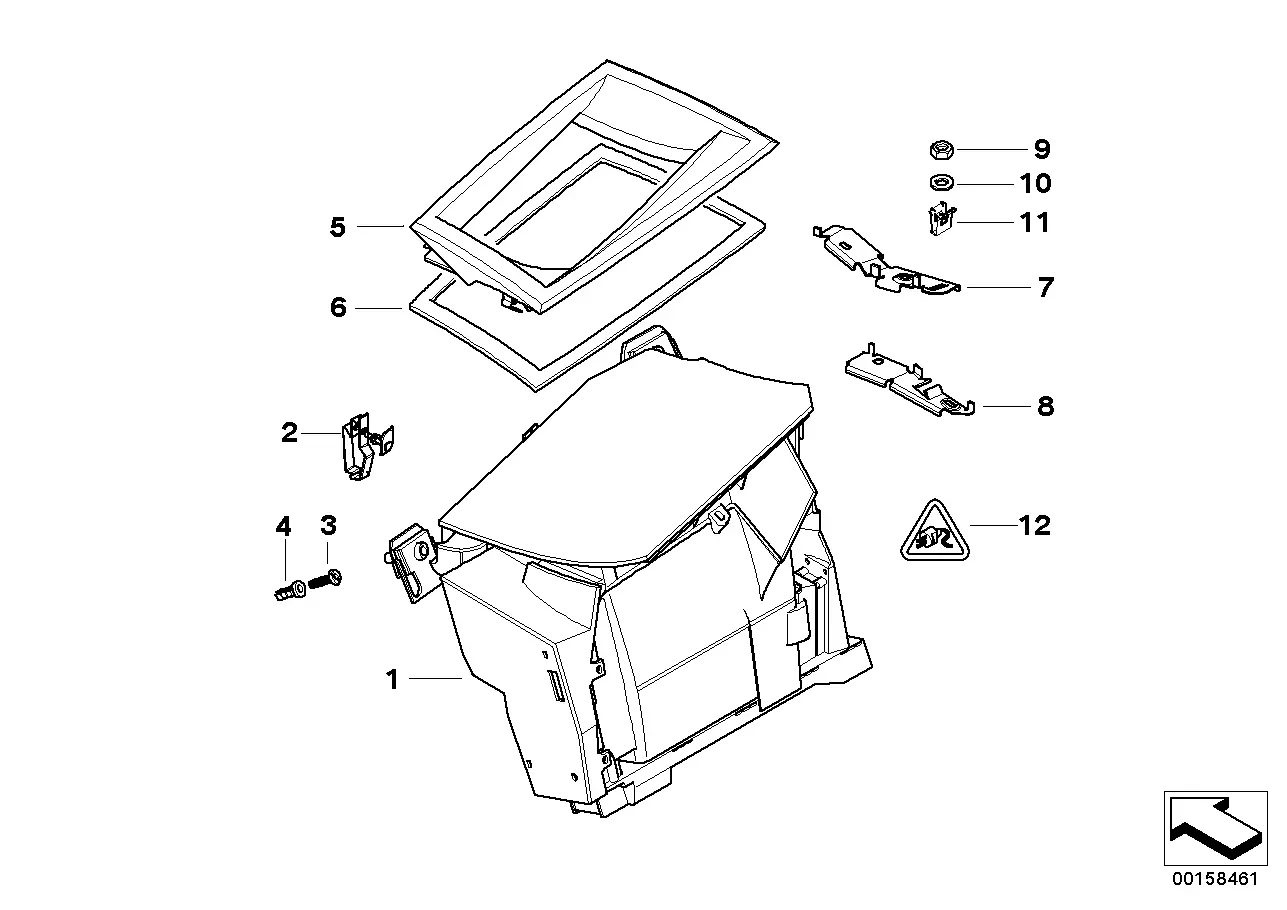

Head-up display diagram

Parts

17 parts

Repair kit, socket housing
61132471239 Offers

12+2 POL.
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: ?
Old part number: 61138384666
Envelope f optical waveguide
61138387214 Offers

2POL. /SCHWARZ
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 61130411826
Jack MQS ELA
61131393704 Offers

0.2-0.5 MM² SN
QTY: 12
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 61138366244
Jack MQS ELA
61136931880 Offers

0,5-0,75 MM² AG
QTY: 12
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 61138366260
62309190871 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 1.775
Old part number: 62309159641
62306933193 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.091
Old part number: ?
07129904259 Offers

M6X35-8.8-ZNS3
QTY: 2
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.009
Old part number: 88100390499
07147121926 Offers

M6
QTY: 2
Reconditioned part number: ?
Weight: 0.012
Old part number: ?
62306934586 Offers

BASALTGRAU
QTY: 1
Reconditioned part number: ?
Weight: 0.193
Old part number: ?
62306934584 Offers

SCHWARZ
QTY: 1
Reconditioned part number: ?
Weight: 0.193
Old part number: ?
62306936221 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.088
Old part number: ?
62306936871 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.023
Old part number: ?
62306936223 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.040
Old part number: ?
07119903769 Offers

M4
QTY: 4
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 88100302623
07119904205 Offers

9X4,3X0,8-200HV
QTY: 4
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 88100418352
62304332403 Offers

?
QTY: 4
Reconditioned part number: ?
Weight: 2.820
Old part number: ?
61138384550 Offers

12 POL.
QTY: 1
only in conjunction with
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
