Pump

Oil pump

Assembly diagrams

8 diagrams

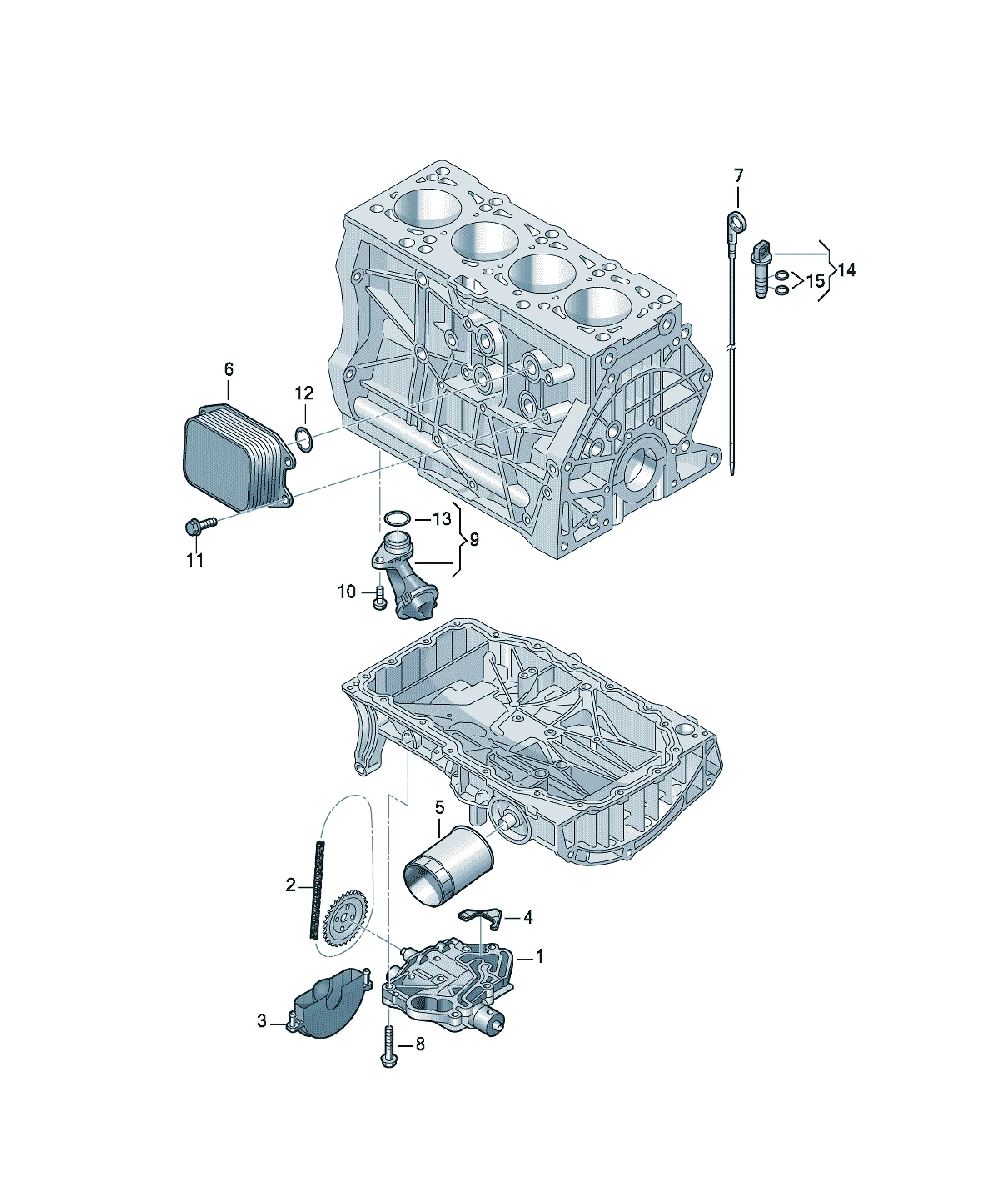

Oil pump diagram

Parts

15 parts

04E115103AD Offers

[Name] [QTY]
oil pump 1
04E115103AE Offers

[Name] [QTY]
oil pump 1
N10196103 Offers

[Name] [Note] [QTY]
Oval socket head bolt with hex drive M6X18 2
N10653301 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X20 4
04E115111D Offers

[Name] [QTY]
seal ring 4
N0282222 Offers

[Name] [Note] [QTY]
seal ring 20X3,15 1
04E115225E Offers

[Name] [QTY]
Drive chain 1
04E103669C Offers

[Name] [QTY]
Cover 1
04E115175A Offers

[Name] [QTY]
oil strainer 1
04E115561T Offers

[Name] [Note] [QTY]
oil filter 1
alternatively, you can use: 04E 115 561 H
04E115561H Offers

[Name] [Note] [QTY]
oil filter 1
alternatively, you can use: 04E 115 561 T
04E117021C Offers

[Name] [QTY]
Oil cooler 1
04E115611E Offers

[Name] [QTY]
Oil dipstick 1
N10655402 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X40 4
04E115251R Offers

[Name] [QTY]
suction line 1
