Pump

Oil pump

Assembly diagrams

8 diagrams

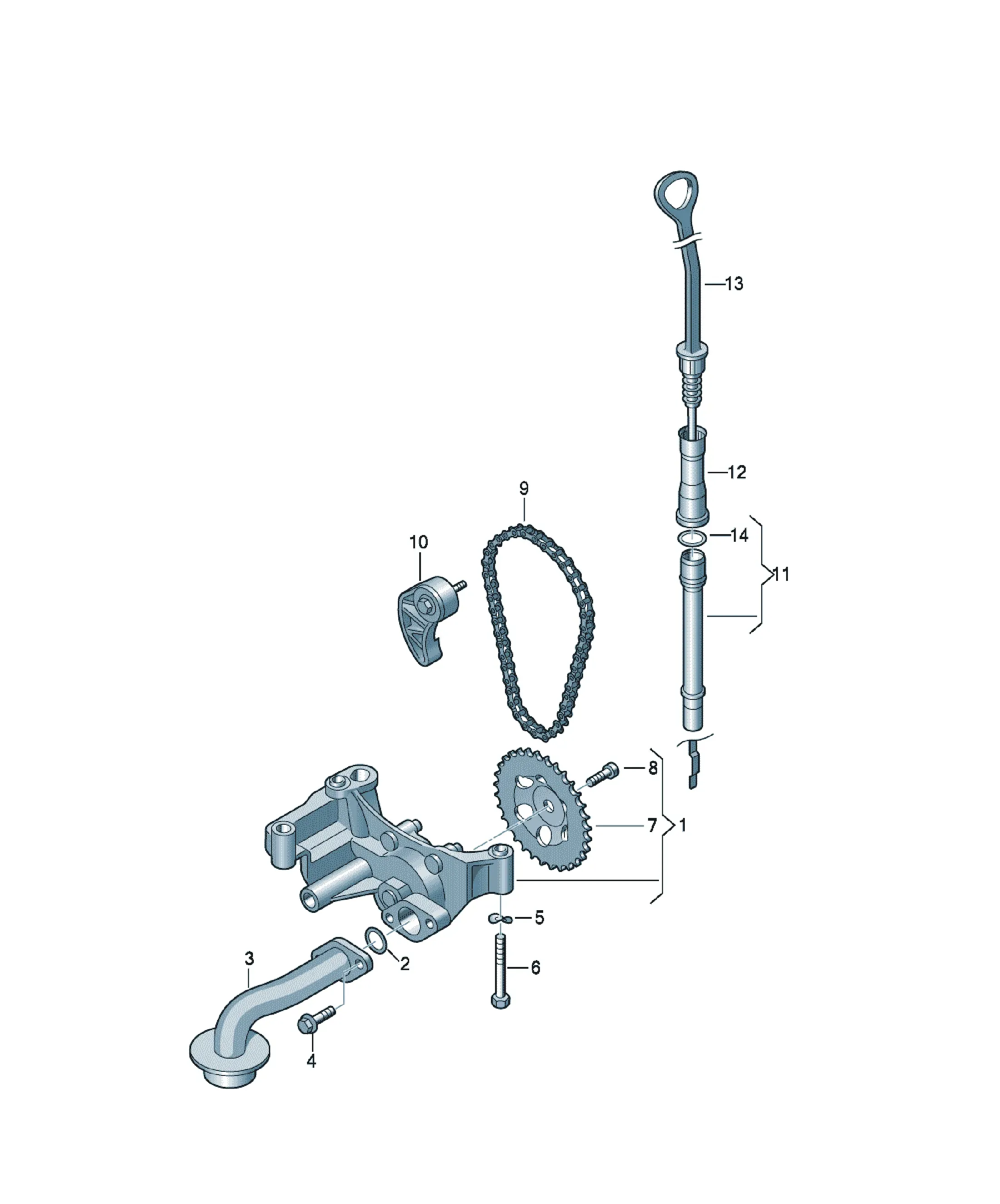

Oil pump diagram

Parts

14 parts

06A115105B Offers

[Name] [QTY]
oil pump 1
06A115130 Offers

[Name] [QTY]
chain tensioner 1
06D103634E Offers

[Name] [QTY]
tube for oil dipstick 1
06A103663C Offers

[Name] [QTY]
guide funnel 1
06B115611R Offers

[Name] [QTY]
Oil dipstick 1
[Name]
Not for this model
N0282222 Offers

[Name] [Note] [QTY]
seal ring 20X3,15 1
06A115251G Offers

[Name] [QTY]
suction line 1
N90945002 Offers

[Name] [Note] [QTY]
hexagon socket head bolt with shoulder M7X21,5 2
N0122345 Offers

[Name] [Note] [QTY]
Spring washer 7 3
N90704007 Offers

[Name] [Note] [QTY]
hexagon socket head bolt with shoulder M7X55 3
06A115121 Offers

[Name] [QTY]
Chain sprocket 1
N90366303 Offers

[Name] [Note] [QTY]
Cylinder screw, self-locking M8X22 1
06A115125B Offers

[Name] [QTY]
Drive chain 1
