Pump

Oil pump

Assembly diagrams

8 diagrams

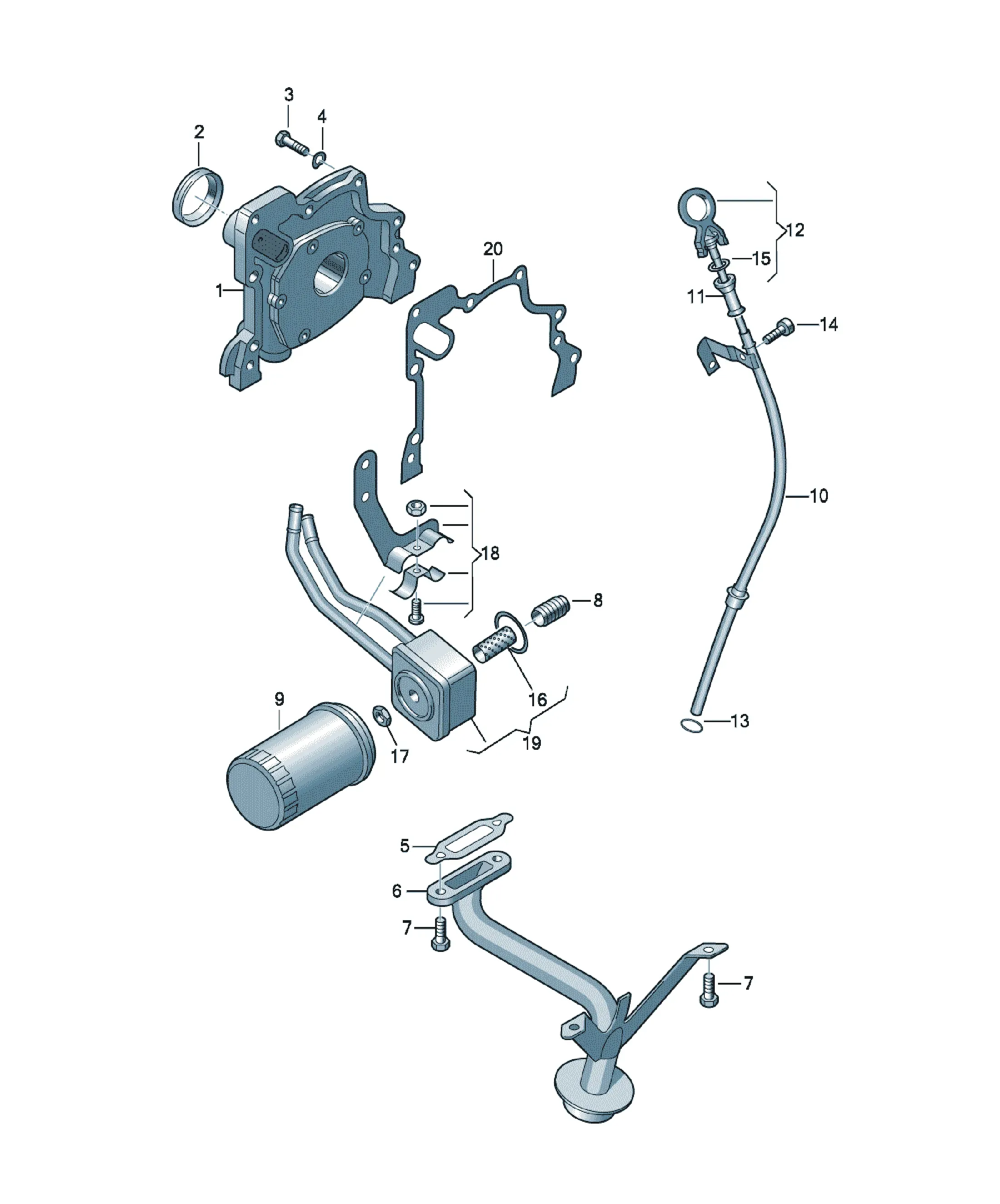

Oil pump diagram

Parts

22 parts

030115105P Offers

[Name] [QTY]
oil pump 1
036115629BB Offers

[Name] [QTY]
tube for oil dipstick 1
For vehicles without extended service interval
036115629BA Offers

[Name] [QTY]
tube for oil dipstick 1
For vehicles with extended service interval
030115636A Offers

[Name] [QTY]
Guide 1
030115611R Offers

[Name] [QTY]
Oil dipstick 1
N90032204 Offers

[Name] [Note] [QTY]
O-ring 7,3X2,4 1
N01471015 Offers

[Name] [Note] [QTY]
Socket head bolt with hex. socket head, self-locking M8X20 1
030115444 Offers

[Name] [Note] [QTY]
O-ring 6,16X2,35 1
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
036103085H Offers

[Name] [Note] [QTY]
Shaft oil seal 42X6 1
[Name] [Note] [QTY]
Seal 1
see illustration: 103-000
N0102228 Offers

[Name] [Note] [QTY]
Hexagon bolt M6X22 5
N0122265 Offers

[Name] [Note] [QTY]
Spring washer 6 5
[Name]
Not for this model
036115251AK Offers

[Name] [QTY]
suction line 1
D - 30.08.2012>>
036115251AJ Offers

[Name] [QTY]
suction line 1
D >> - 29.08.2012
N0902619 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X20 2
059115721 Offers

[Name] [QTY]
threaded union 1
030115561AN Offers

[Name] [QTY]
oil filter 1
