Pump

Oil pump

Assembly diagrams

8 diagrams

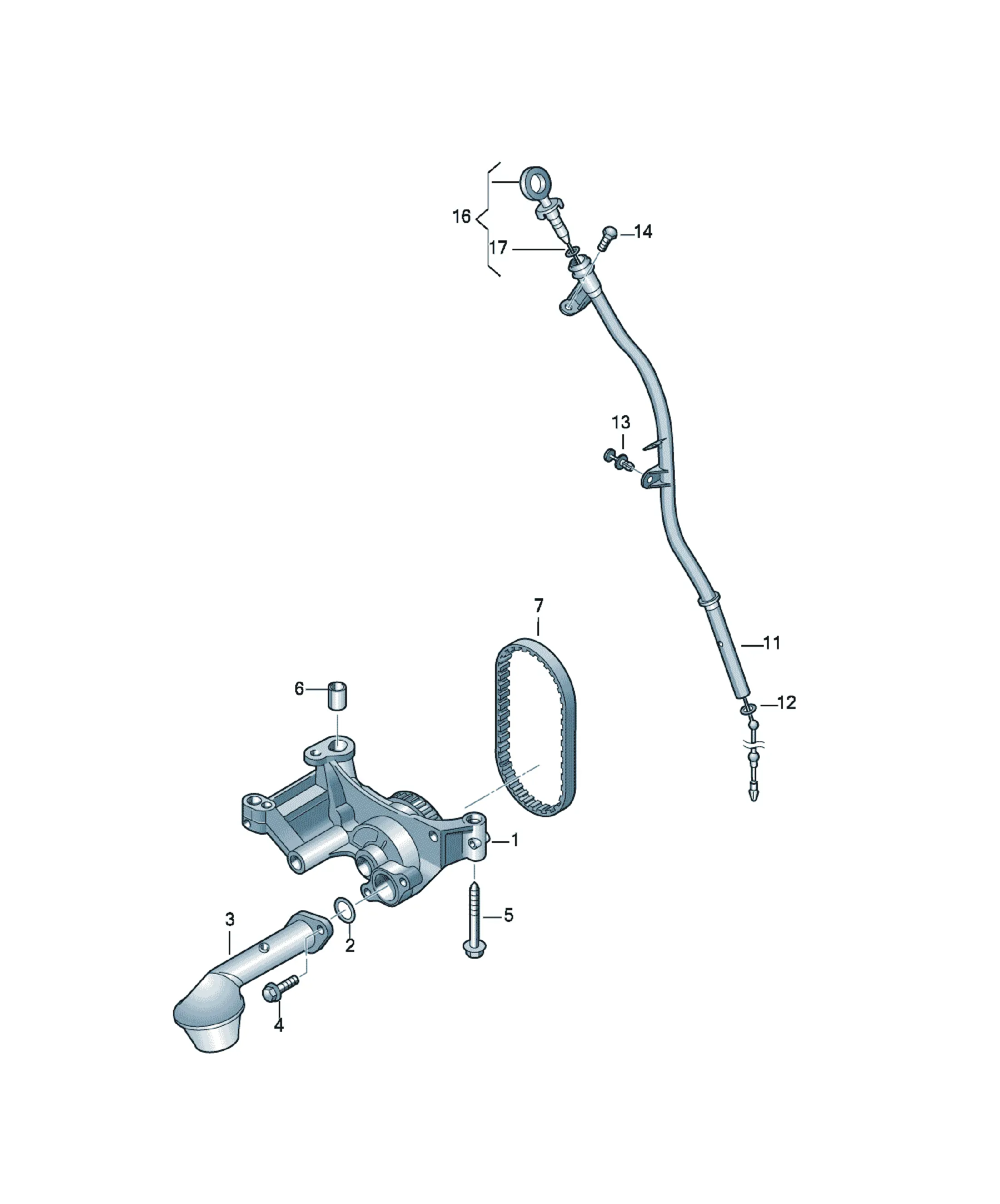

Oil pump diagram

Parts

14 parts

03L115105B Offers

[Name] [QTY]
oil pump 1
03L103634G Offers

[Name] [Model info] [QTY]
tube for oil dipstick CAYB,CAYC, 1
CLNA
03L103634H Offers

[Name] [Model info] [QTY]
tube for oil dipstick CFHD 1
N90043201 Offers

[Name] [Note] [QTY]
O-ring 10X2 1
4D0863788 Offers

[Name] [QTY]
Spreader rivet 1
N10338903 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X16 1
03L115611H Offers

[Name] [QTY]
Oil dipstick 1
WHT001969 Offers

[Name] [Note] [QTY]
O-ring 9X2,2 1
N0282222 Offers

[Name] [Note] [QTY]
seal ring 20X3,15 1
038115251B Offers

[Name] [QTY]
suction line 1
N10653301 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X20 2
N90704006 Offers

[Name] [Note] [QTY]
hexagon socket head bolt with shoulder M7X55 3
03D115143A Offers

[Name] [Note] [Model info] [QTY]
Centre sleeve 11X8,5 CFHD 2
03L115264A Offers

[Name] [Note] [QTY]
toothed belt Z=59 1
