Pump

Oil pump

Assembly diagrams

8 diagrams

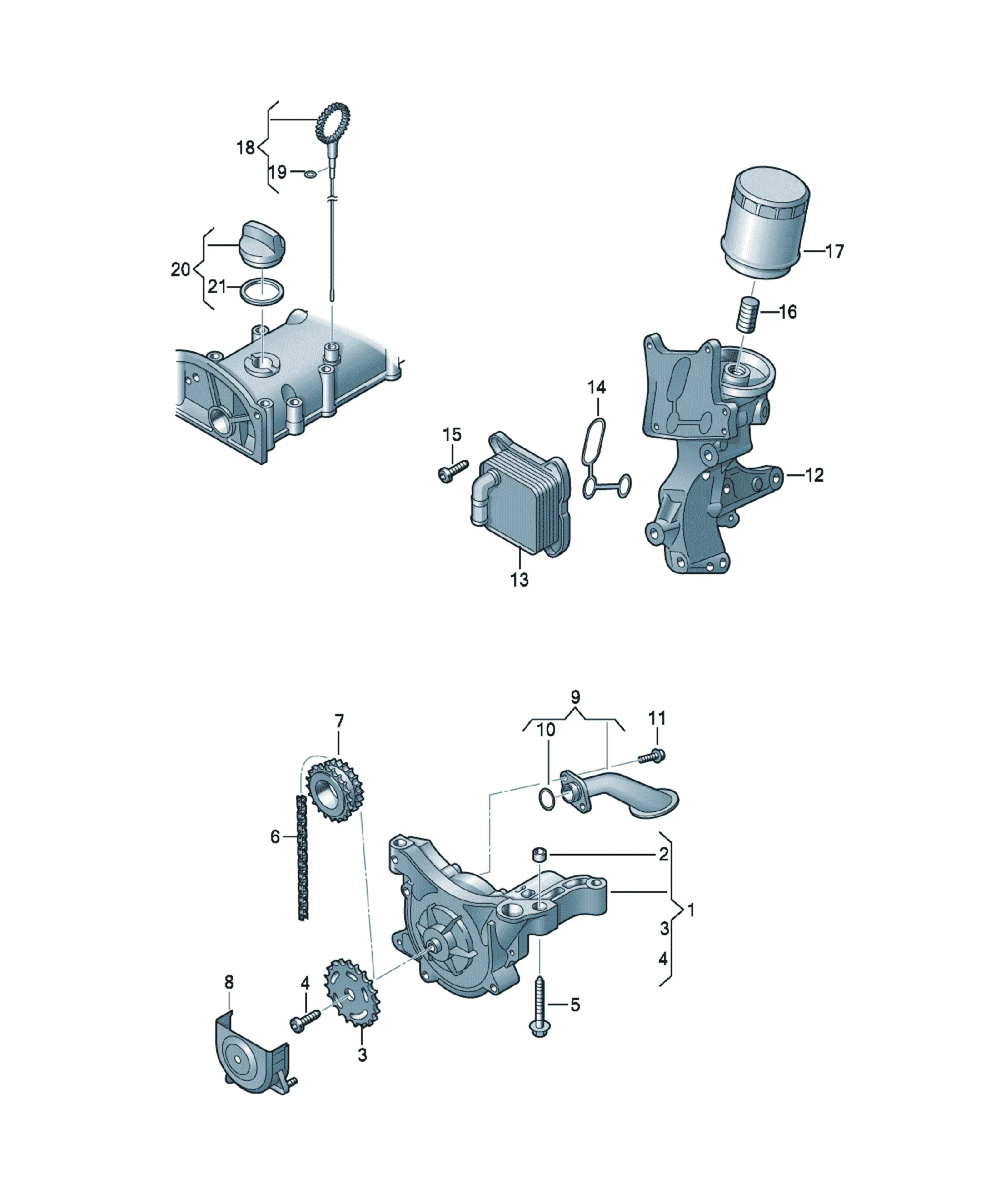

Oil pump diagram

Parts

21 parts

03F115105D Offers

[Name] [QTY]
oil pump 1
N0282222 Offers

[Name] [Note] [QTY]
seal ring 20X3,15 1
N10124408 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt (combi) M6X20 2
[Name] [Note]
bracket for alternator
see illustration, item: 903-015,12
03F117021A Offers

[Name] [QTY]
Oil cooler 1
03F115111A Offers

[Name] [QTY]
Seal 1
N91096701 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 4
03C115721D Offers

[Name] [QTY]
threaded union 1
03C115561H Offers

[Name] [QTY]
oil filter 1
03F115611E Offers

[Name] [QTY]
Oil dipstick 1
03F115331 Offers

[Name] [Note] [QTY]
O-ring 4,9X1,9 1
03D115143A Offers

[Name] [Note] [QTY]
Centre sleeve 11X8,5 2
[Name] [Note]
End cap
see illustration, item: 103-033,13
[Name] [Note]
Seal
see illustration, item: 103-033,14
03F115121B Offers

[Name] [QTY]
Chain sprocket 1
N90365901 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M8X22 1
N90853902 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M7X50 3
03F115225 Offers

[Name] [QTY]
Drive chain 1
[Name]
Chain sprocket
No replacement part
03F103669A Offers

[Name] [QTY]
Cover 1
03F115251B Offers

[Name] [QTY]
suction line 1
