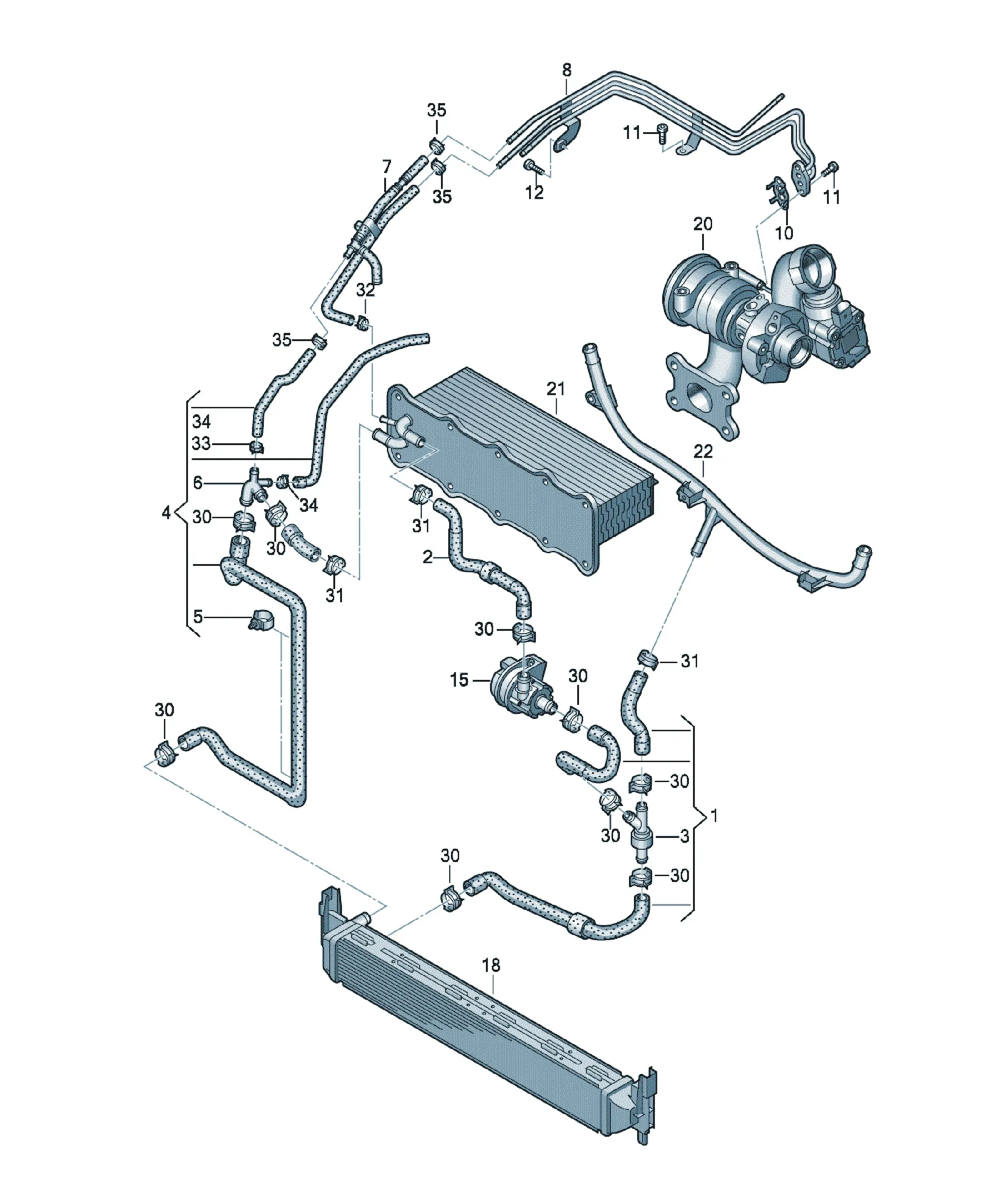

Cooling system

[Name] [QTY]

Coolant hose 1

D - 03.03.2014>>

[Name] [QTY]

Coolant hose 1

D >> - 03.03.2014

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 X

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 X

[Name] [QTY]

Coolant pump 1

Items supplied

5Q0965561H Circulation pump 1

Bracket 1

bush 1

mating connector

4F0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Additional cooler for coolant 1

for charge air cooler

[Name] [QTY]

Coolant hose 1

Items supplied

Coolant hose 364MM 1

Spacer ring 23X35X20 1

Chafe guard 219MM 1

[Name] [Note] [QTY]

Exhaust gas turbocharger 1

see illustration, item: 145-052,1

[Name] [Note] [QTY]

Charge air cooler 1

see illustration, item: 135-035,12

[Name] [Note] [QTY]

Coolant pipe 1

see illustration, item: 121-011,1

[Name] [QTY]

t-piece 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [QTY]

Coolant hose 1

D - 02.12.2013>>

[Name] [QTY]

Coolant hose 1

D >> - 02.12.2013

Items supplied

Coolant hose 78MM 1

Coolant hose 987MM 1

Coolant hose 399MM 1

Coolant hose 184MM 1

3C0121093D Hose bracket 23 1

5Q0121087 t-piece 1

N 90687001 Spring band clamp 27X12 2

N 90770201 Spring band clamp 17X12 1

N 90686701 Spring band clamp 14X12 1

N 91184901 Spring band clamp 14X12 1

8E0121349A Non-return valve 1

Potential individual parts

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

t-piece 1

D >> - 02.12.2013

[Name] [QTY]

t-piece 1

D - 02.12.2013>>

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1
