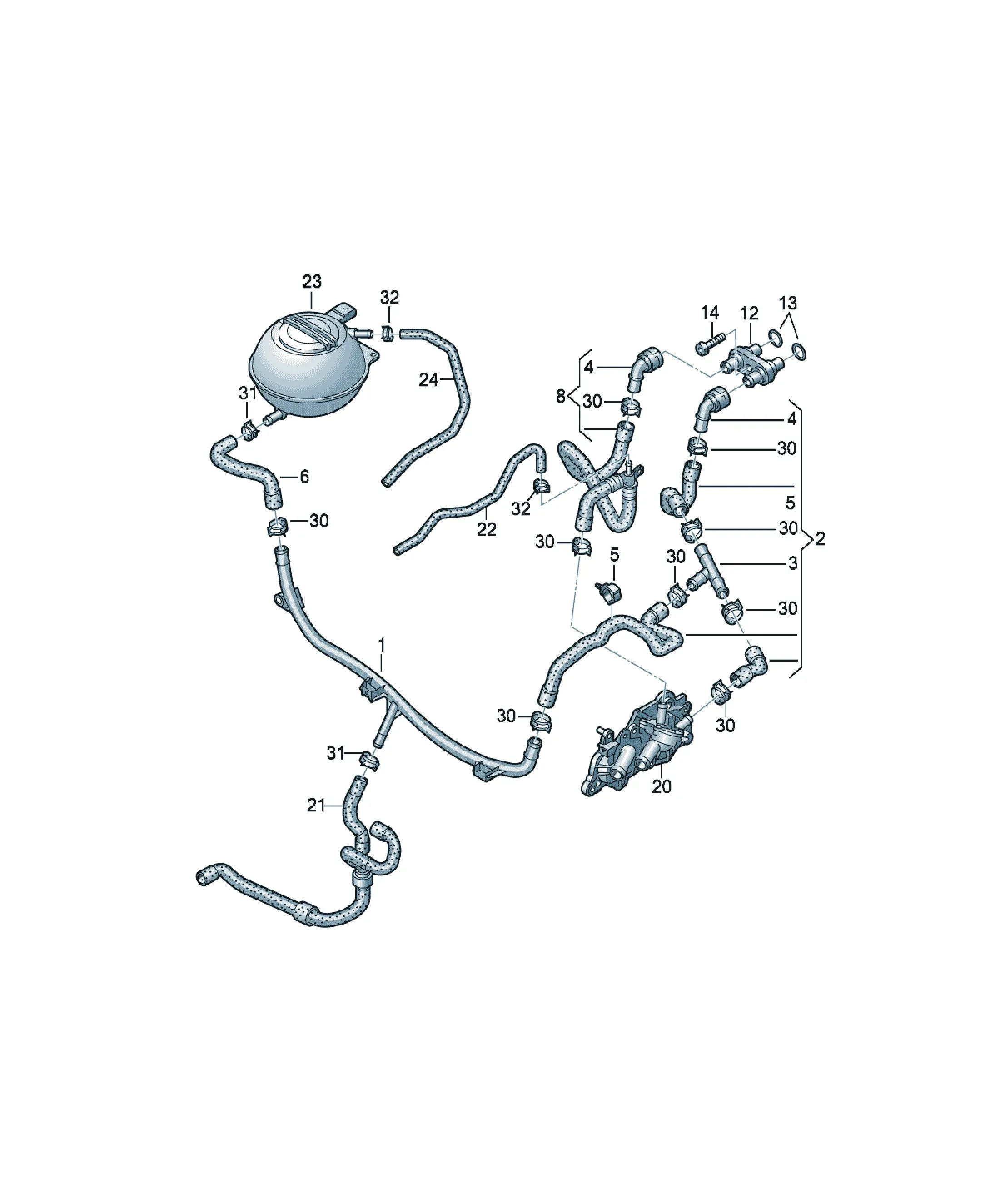

Cooling system

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant pipe 1

heat exchanger

[Name] [Note] [QTY]

O-ring 17,12X2,62 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X30 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

Coolant regulator 1

see illustration, item: 121-005,1 1

[Name] [Note] [QTY]

Coolant hose 1

see illustration, item: 121-001,1 1

[Name] [Note] [QTY]

Coolant hose 1

see illustration, item: 121-010,22 1

[Name] [Note] [QTY]

Coolant expansion tank 1

see illustration, item: 121-078,1 1

[Name] [Note] [QTY]

Coolant hose 1

see illustration, item: 121-001,7 1

[Name] [QTY]

t-piece 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

connection piece 1

[Name] [Note] [QTY]

Hose bracket 23MM 1

[Name] [QTY]

Coolant hose 1

(reservoir > thermostat)

[Name] [QTY]

Coolant hose 1
