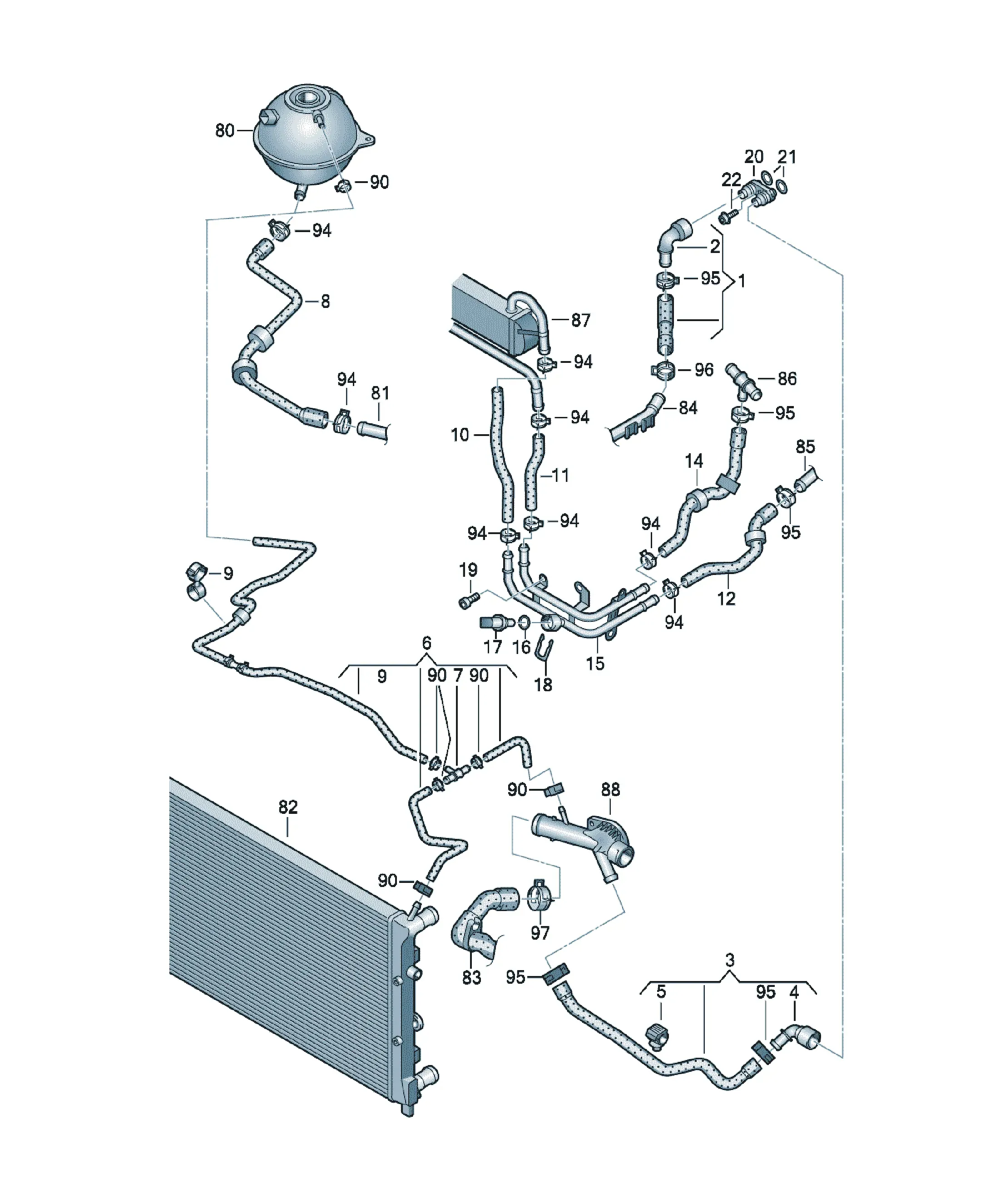

Cooling system

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

Coolant temperature sender 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 3

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

connection piece 1

[Name] [QTY]

Coolant pipe 1

heat exchanger

[Name] [Note] [QTY]

O-ring 17,12X2,62 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X30 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Quick acting coupling 1

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Distributor 8X8X8X60 1

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)

[Name] [Note]

Reservoir

see illustration: 121-086

[Name] [Note]

Coolant pipe

see illustration, item: 121-060,10

[Name] [Note]

Cooler for coolant

see illustration, item: 121-060,80

[Name] [Note]

Coolant hose

see illustration, item: 121-060,4

[Name] [Note]

Coolant pipe

see illustration, item: 121-060,10

[Name] [Note]

Additional coolant pump

see illustration, item: 121-060,6

[Name] [Note]

t-piece

see illustration, item: 121-060,2

[Name] [Note]

Cooler for exhaust recuperation

see illustration: 131-045

[Name] [Note]

flange

see illustration: 121-086

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
