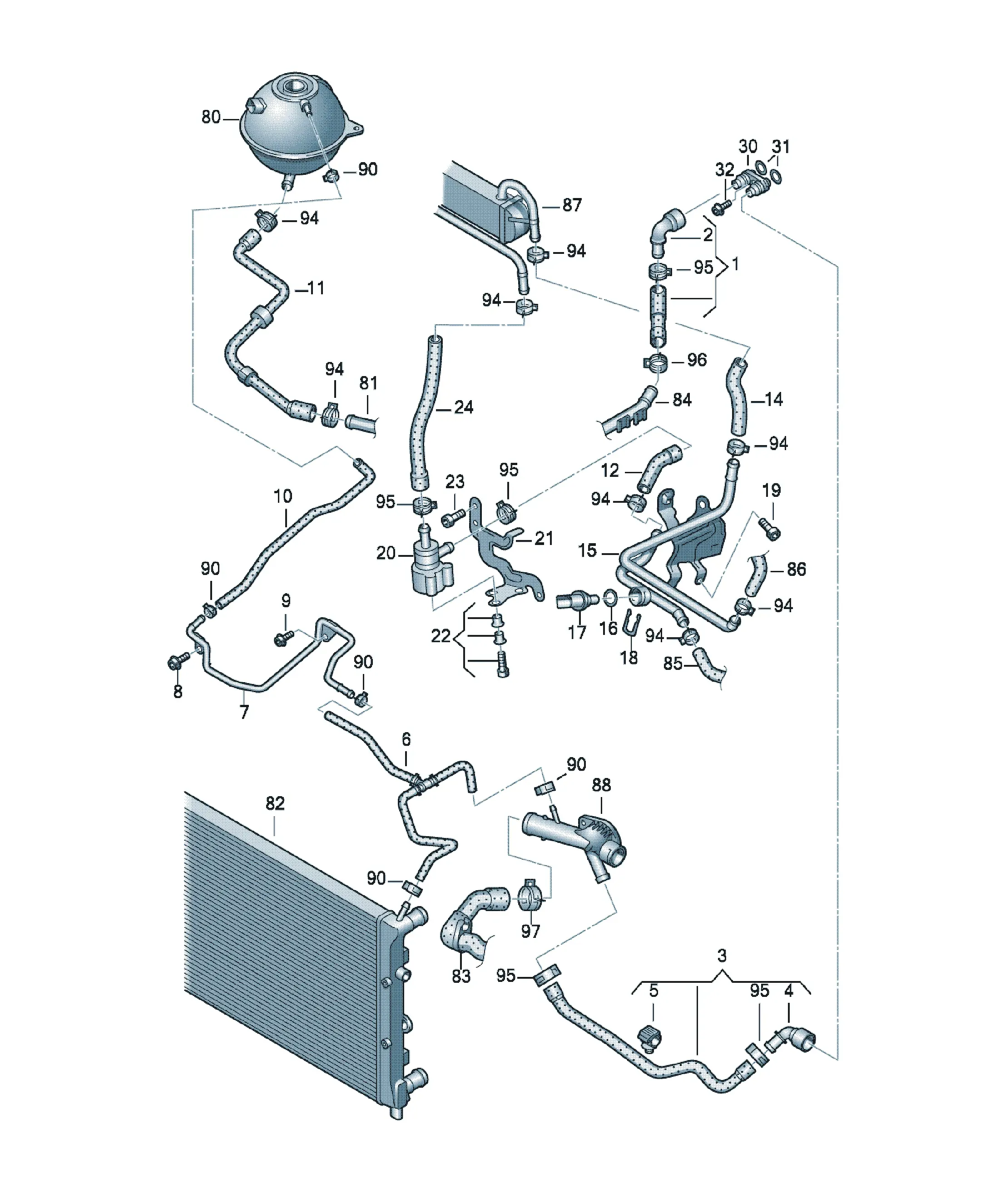

Cooling system

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)

[Name] [QTY]

Coolant hose 1

(reservoir > thermostat)

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

Coolant temperature sender 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 3

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

connection piece 1

[Name] [QTY]

Additional coolant pump 1

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [QTY]

1 set attachment parts 1

repair set

WHT003361 Hexagon socket flat head bolt TP 3,5X20-R 3

03L121275 Rubber bush 3

03L121199 Sleeve 3

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X16 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant pipe 1

heat exchanger

[Name] [Note] [QTY]

O-ring 17,12X2,62 2

heat exchanger

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X30 1

heat exchanger

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

connection piece 1

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X12 1

[Name] [Note]

Reservoir

see illustration, item: 121-083,20

[Name] [Note]

Coolant regulator housing with thermostat

see illustration, item: 121-005,21

[Name] [Note]

Cooler for coolant

see illustration, item: 121-083,30

[Name] [Note]

Coolant hose

see illustration, item: 121-045,4

[Name] [Note]

Coolant pipe

see illustration, item: 121-045,10

[Name] [Note]

Coolant hose

see illustration, item: 121-045,4

[Name] [Note]

Coolant hose

see illustration, item: 121-045,1

[Name] [Note]

Cooler for exhaust recuperation

see illustration, item: 131-030,5

[Name] [Note]

flange

see illustration, item: 121-083,1

[Name] [Note] [QTY]

round hd. screw M6X10 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
