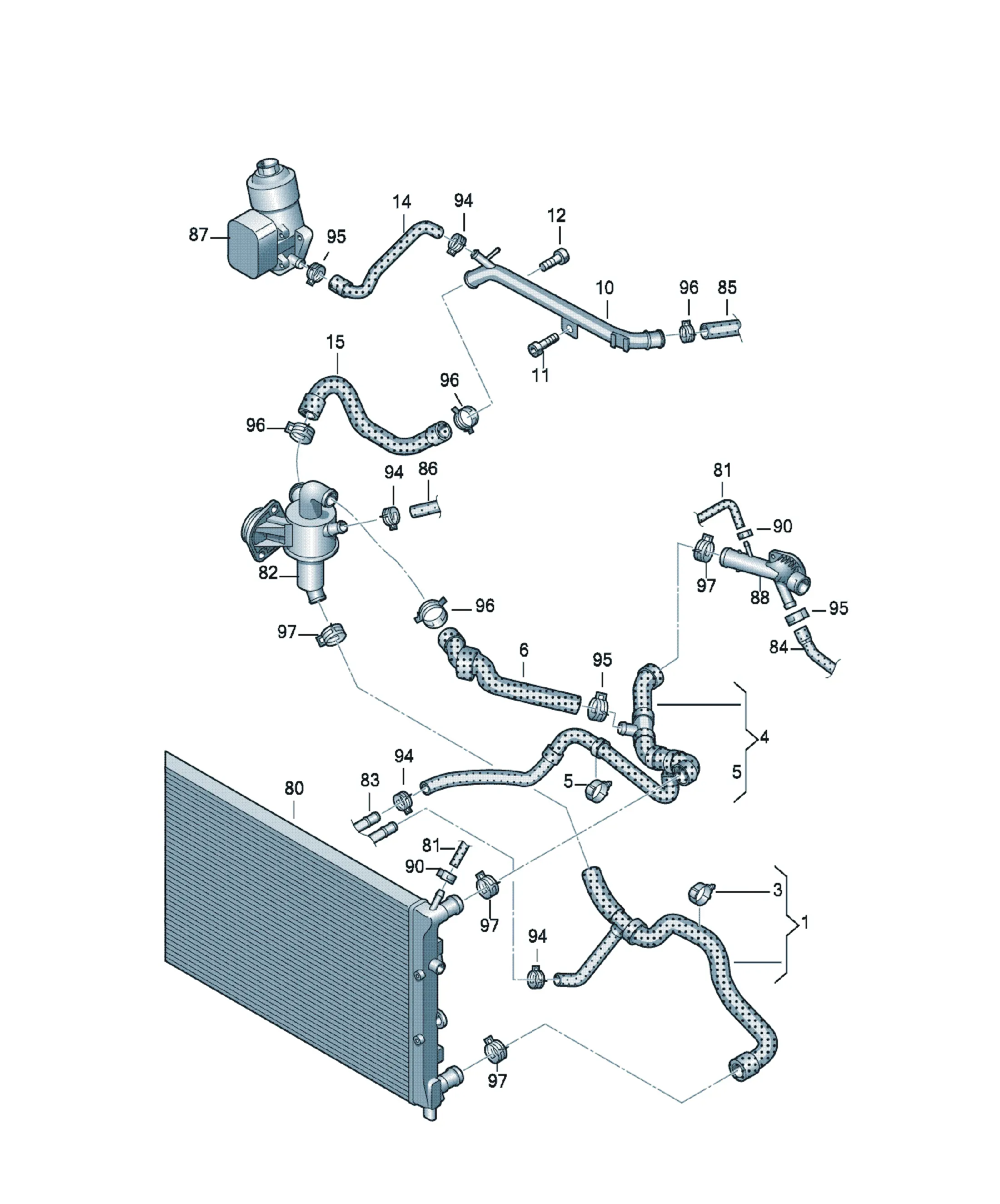

Cooling system

[Name] [Note] [QTY]

Coolant hose return 1

[Name] [Note] [QTY]

Coolant pipe plastic 1

[Name] [Note] [QTY]

Hex socket head locating bolt M10X12 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M7X20 1

[Name] [QTY]

Coolant hose 1

(oil cooler > water pipe)

[Name] [QTY]

Coolant hose 1

(Coolant regulator housing > coolant pipe)

[Name] [QTY]

Hose bracket 1

[Name] [Note] [QTY]

Coolant hose feed 1

contains additional positions: 6

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

Coolant hose 1

[Name] [Note]

Cooler for coolant

see illustration, item: 121-083,30

[Name] [Note]

Coolant hose

see illustration, item: 121-047,6

[Name] [Note]

Coolant regulator housing with thermostat

see illustration, item: 121-005,21

[Name] [Note]

Coolant pipe

see illustration, item: 121-047,15

[Name] [Note]

Coolant hose

see illustration, item: 121-047,3

[Name] [Note]

Coolant hose

see illustration, item: 121-047,1

[Name] [Note]

Coolant hose

see illustration, item: 121-047,11

[Name] [Note]

Oil cooler

see illustration: 115-026

[Name] [Note]

flange

see illustration, item: 121-083,1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
