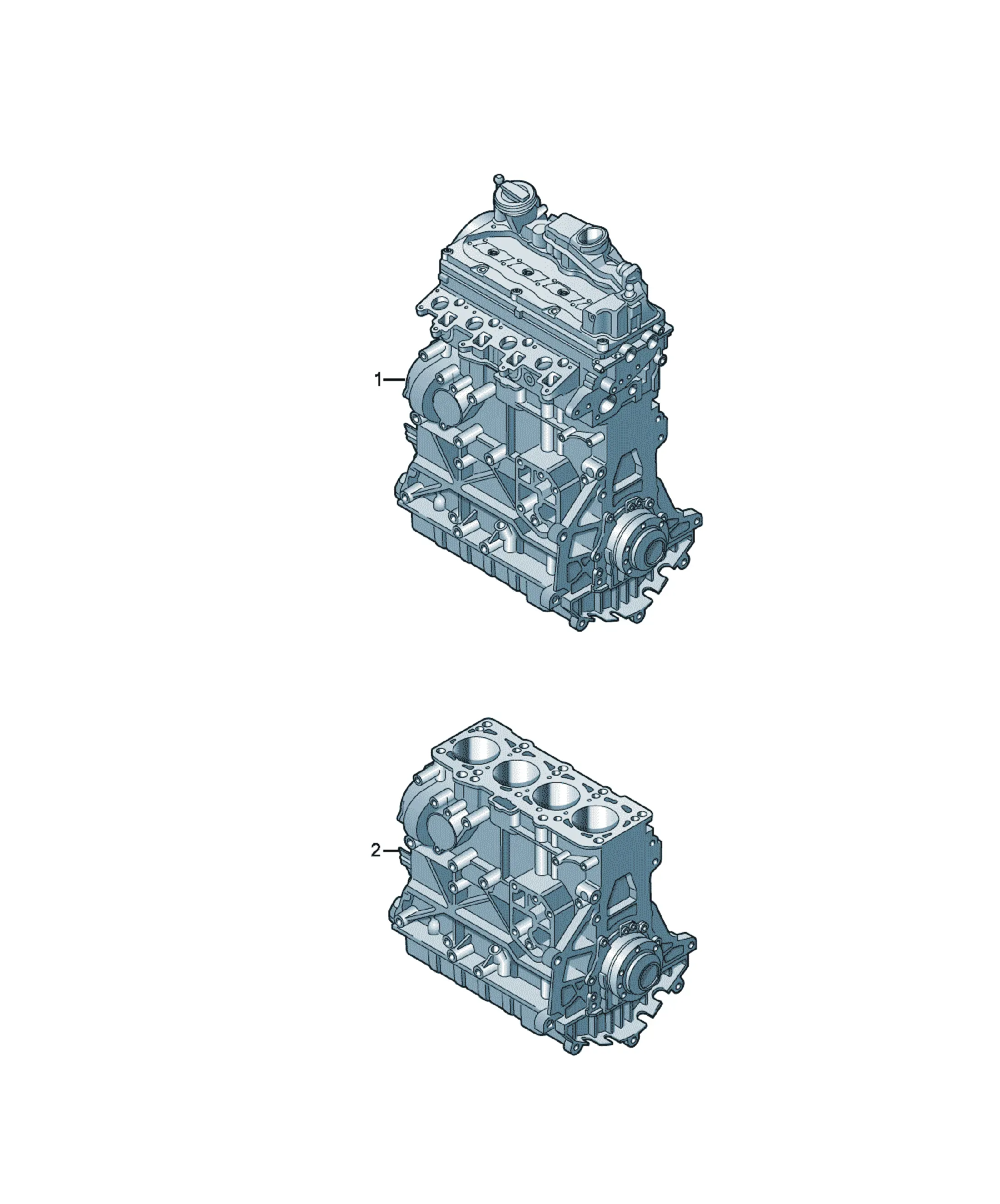

Base engine

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

100/103KW

marked with: 03L 021 A/B/C

03L 021 D

03L 021 AC

D >> - 15.07.2009* CBAA,CBAB 1

also use: *>>D06.04.2009

03L 130 235 S 1

Accompanying details: 03L130235S

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

Old part

03L100090 X Base engine 1

Cylinder block cast no.:

03L 103 021 A/B/AB

03L 103 023 A/B/AB

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

100/103KW

marked with: 03L 021 AH/ AM

03L 021 AN/ AJ

03L 021 BG/ BH

D - 16.07.2009>>*- 03.11.2009* CBAA,CBAB 1

Accompanying details: N 90281802

Replacements: 03L100035P

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

100/103KW

marked with: 03L 021 AH/ AM

03L 021 AN/ AJ

03L 021 BG/ BH

D - 16.07.2009>>* CBAA,CBAB 1

Accompanying details: N 90281802

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

100/103KW

marked with: 03L 021 AH/ AM

03L 021 AN/ AJ

03L 021 BG/ BH

D - 16.07.2009>>* CBAA,CBAB 1

Accompanying details: N 90281802

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

Old part

03L100090DX Base engine 1

Cylinder block cast no.:

03L 103 021 AH/AJ/BG

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

103KW

also use: N 902 818 02 1

D >> - 31.05.2010 CFFB 1

Accompanying details: N 90281802

Replacements: 03L100036TX

Items supplied

comprising:

Crankcase 1

piston 4

conrod 4

Crankshaft 1

balancer shaft 1

oil pump 1

oil sump 1

Cylinder head 1

cylinder head cover 1

Injector unit 4

Glow plug 4

Vacuum pump 1

Old part

03L100034QX Base engine 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CFFD,CFFA, 1

81-125KW CFFB,CFGB

also use: N 902 818 02 1

also use: 06B 105 313 C 7-speed dual clutch gearbox 1

For vehicles with:

Accompanying details: N 90281802; 06B105313C

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

81-125KW

D - 01.06.2010>> CFFD,CFFA, 1

CFFB,CFGB

also use: 06B 105 313 C 7-speed dual clutch gearbox 1

For vehicles with:

Accompanying details: 06B105313C

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

Old part

03L100036TX Base engine 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

03L100090JX Base engine 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CLJA 1

103KW

also use: N 902 818 02 1

Accompanying details: N 90281802; 06B105313C

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CLJA 1

103KW

Accompanying details: 06B105313C

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

Old part

03L100036TX Base engine 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

03L100090JX Base engine 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

120/125KW

D >> - 02.08.2009* CBBA,CBBB 1

also use: *>>D06.04.2009

03L 130 235 S 1

Accompanying details: 03L130235S

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

Old part

03L100090 X Base engine 1

Cylinder block cast no.:

03L 103 021 A/B/AB

03L 103 023 A/B/AB

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

120/125KW

also use: N 902 818 02 1

D - 03.08.2009>>*- 03.11.2009* CBBA,CBBB 1

Accompanying details: N 90281802

Replacements: 03L100035P

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

120/125KW

also use: N 902 818 02 1

D - 03.08.2009>>* CBBA,CBBB 1

Accompanying details: N 90281802

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

120/125KW

also use: N 902 818 02 1

D - 03.08.2009>>* CBBA,CBBB 1

Accompanying details: N 90281802

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Crankshaft 1

timing gear - crankshaft 1

oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head with valves, camshafts, injectors and glow plugs 1

cylinder head cover with gasket 1

Vacuum pump 1

Old part

03L100090DX Base engine 1

Cylinder block cast no.:

03L 103 021 AH/AJ/BG

[Name] [Note] [Model info] [QTY]

Short block 2.0 Ltr.

100-125KW

D >> - 15.07.2009* CBAA,CBAB 1

CBBA,CBBB

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03L100103 X Short block 1

Cylinder block cast no.:

03L 103 021 A/B/AB

03L 103 023 A/B/AB

Oil pan with engine oil sensor

[Name] [Note] [Model info] [QTY]

Short block 2.0 Ltr.

100/103KW

D - 16.07.2009>>* CBAA,CBAB 1

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

[Name] [Note] [Model info] [QTY]

Short block 2.0 Ltr.

100/103KW

D - 16.07.2009>>* CBAA,CBAB 1

Replacements: 03L100103F

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03L100103FX Short block 1

Cylinder block cast no.:

03L 103 021 AH/AJ/BG

[Name] [Note] [Model info] [QTY]

Short block 2.0 Ltr.

103KW

D >> - 31.05.2010 CFFB 1

Accompanying details: 06B105313C

Replacements: 03L100103R

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03L100103RX Short block 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

[Name] [Note] [Model info] [QTY]

Short block 2.0 Ltr.

81-125KW

D - 01.06.2010>> CFFD,CFFA, 1

CFFB,CFGB

also use: 06B 105 313 C 7-speed dual clutch gearbox 1

For vehicles with:

Accompanying details: 06B105313C

Replacements: 03L100103R

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03L100103RX Short block 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ

[Name] [Note] [Model info] [QTY]

Short block 2.0 Ltr. CLJA 1

103KW

Accompanying details: 06B105313C

Replacements: 03L100103R

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03L100103RX Short block 1

Cylinder block cast no.:

03L 103 021 AP/CA/CG/CJ
