Cylinder block

Cylinder block

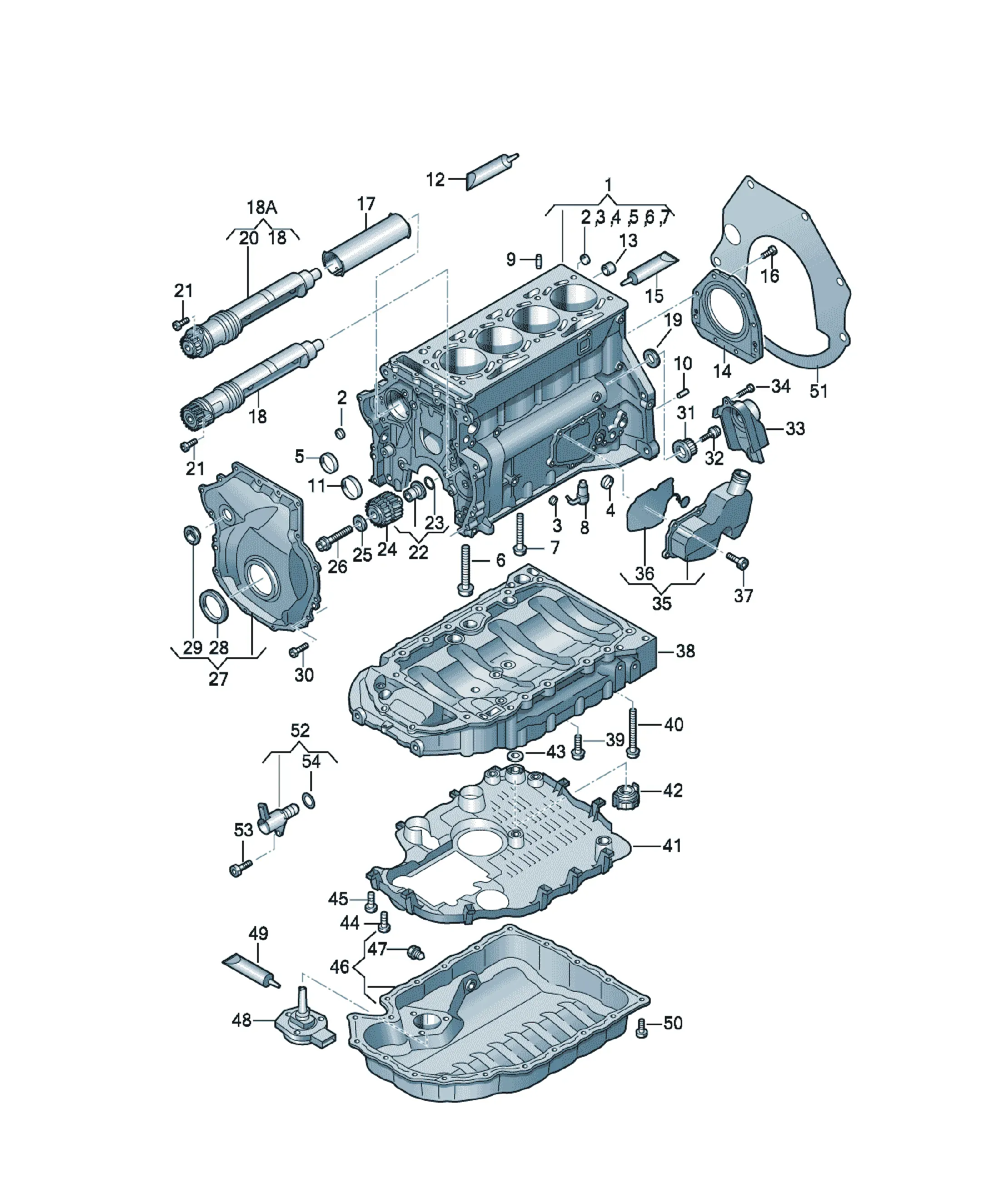

Assembly diagrams

5 diagrams

Parts

69 parts

Oil level sensor O-ring
038103196 Offers

[Name] [Model info] [QTY]
seal ring PR:QG0 1
cover for oil sump
03G103707 Offers

[Name] [Model info] [QTY]
cover for oil sump PR:QG0 1
Шестигранная гайка с буртиком
N01508213 Offers

[Name] [Note] [Model info] [QTY]
Hexagon collar nut M6 PR:QG0 3
Replacements: N 01508210
Силиконовый герметик
D174003A2 Offers

[Name] [Note] [QTY]
Silicone sealant 80ml X
Replacements: D 174003M2
06H103011H Offers

[Name] [Note] [QTY]
Crankcase housing 1
F >> 5N-9G003 000*
F >> 5N-9W038 500*
F >> 5N-9W513 000*
also use: Piston
see illustration, item: 107-000,1
Replacements: 06H103011N
06H103011AP Offers

[Name] [Note] [QTY]
Crankcase housing 1
F 5N-9G003 001>>*
F 5N-9W038 501>>*
F 5N-9W513 001>>*
also use: Piston
see illustration, item: 107-000,1
N10617101 Offers

[Name] [Note] [QTY]
Cylinder pin 8X12 2
06H103113 Offers

[Name] [Note] [QTY]
End cap 38 1
D000600A2 Offers

[Name] [Note] [QTY]
Locking fluid 18ml 1
Replacements: D 200005A2
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 2
06K103171G Offers

[Name] [Note] [QTY]
Sealing flange rear 1
see workshop manual
Replacements: 06K103171H
D174003A2 Offers

[Name] [Note] [QTY]
Silicone sealant 80ml X
Replacements: D 174003M2
N91073301 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 8
06H103199K Offers

[Name] [QTY]
Pipe 1
06H198205F Offers

[Name] [QTY]
Repair set for balancer shafts 1
Replacements: 06H198205N
repair set
06H103273DJ balancer shaft Inlet 1
06H103273DK balancer shaft Outlet 1
06H103085J Offers

[Name] [Note] [QTY]
Shaft oil seal 36,3X7 1
N0119078 Offers

[Name] [Note] [QTY]
End cap 14 2
N91073301 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 8
06H103559 Offers

[Name] [QTY]
Intermediate shaft 1
Replacements: 06H103559A
WHT001905 Offers

[Name] [Note] [QTY]
O-ring 10,3X2,4 1
06H103319Q Offers

[Name] [QTY]
Chain sprocket 1
Replacements: 06K103319A
WHT001396 Offers

[Name] [Note] [QTY]
thrust washer 8,2X28X3 1
Replacements: WHT001396A
N10544904 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X55 1
06H109210Q Offers

[Name] [QTY]
timing case 1
Replacements: 06H109210AG
06H103085G Offers

[Name] [Note] [QTY]
Shaft oil seal 60X8 1
Replacements: 06L103085
06H115418D Offers

[Name] [QTY]
Bungs 1
Replacements: 06H115418AA
N0119104 Offers

[Name] [Note] [QTY]
End cap 10 5
N91096702 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 15
06H103731F Offers

[Name] [QTY]
pulley 1
Replacements: 06H103731G
WHT001163B Offers

[Name] [Note] [QTY]
Hexagon collared bolt with multi-point socket head (duo) M6X16,5 1
06H109121G Offers

[Name] [QTY]
Toothed belt guard 1
N91073301 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 8
N10156206 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X30 1
06H103464L Offers

[Name] [QTY]
oil separator 1
06H103517D Offers

[Name] [QTY]
Seal 1
N10196103 Offers

[Name] [Note] [QTY]
Oval socket head bolt with hex drive M6X18 9
06J103603T Offers

[Name] [Model info] [QTY]
Engine oil sump upper part CAWA,CAWB, 1
CCTA
Replacements: 06J103603BD
06J103603AF Offers

[Name] [Model info] [QTY]
Engine oil sump upper part CCZA,CCZC 1
Replacements: 06J103603BF
N91048802 Offers

[Name] [Note] [Model info] [QTY]
Screw with int. serrations M8X20 CAWA,CAWB, 12
CCTA
N91048802 Offers

[Name] [Note] [Model info] [QTY]
Screw with int. serrations M8X20 CCZA,CCZC 11
N0119019 Offers

[Name] [Note] [QTY]
End cap 20 1
N91050601 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M8X85 2
06J103138F Offers

[Name] [Model info] [QTY]
Insert CAWA,CAWB, 1
CCTA
06J103138AE Offers

[Name] [Model info] [QTY]
Insert CCZA,CCZC 1
06H103156 Offers

[Name] [QTY]
Non-return valve 1
06J103147 Offers

[Name] [QTY]
Seal 1
N10156206 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X30 1
N10124304 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X20 2
06J103600T Offers

[Name] [Note] [Model info] [QTY]
oil sump-lower part 1
also use: 03G 103 707 PR:QG0 1
038 103 196 PR:QG0 1
N 015 082 13 PR:QG0 3
Accompanying details: 03G103707; 038103196; N 01508213
Replacements: 06J103600AF
N91167901 Offers

[Name] [Note] [QTY]
sealing plug M14X1,5 1
N0138158 Offers

[Name] [Note] [QTY]
seal ring 14X20 1
[Name] [Note]
oil level sensor
see illustration, item: 919-040,6
D174003A2 Offers

[Name] [Note] [QTY]
Silicone sealant 80ml X
Replacements: D 174003M2
N90982901 Offers

[Name] [Note] [QTY]
End cap 33 1
Replacements: N 90982902
N91096701 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 15
06J103645 Offers

[Name] [Model info] [QTY]
cover plate automatic 1
06J103645A Offers

[Name] [Model info] [QTY]
cover plate manual gearbox 1
Replacements: 06J103645D
06J103645D Offers

[Name] [Model info] [QTY]
cover plate Dual clutch gearbox 1
06H115243J Offers

[Name] [Model info] [QTY]
control valve CCZA,CCZC 1
Replacements: 06H115243M
mating connector
07P973702 Flat contact housing with contact locking mechanism 2 pin 1
black/yellow
Injection valve
[Name] [Model info]
control valve CAWA,CAWB,
Not for this model CCTA
[Name] [Model info]
Oval hexagon socket head bolt CAWA,CAWB,
Not for this model CCTA
N91096701 Offers

[Name] [Note] [Model info] [QTY]
Oval hexagon socket head bolt M6X16 CCZA,CCZC 1
[Name] [Model info]
O-ring CAWA,CAWB,
Not for this model CCTA
N91056801 Offers

[Name] [Note] [Model info] [QTY]
O-ring 12X2 CCZA,CCZC 1
N91118902 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M10X80 10
N91187501 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X50 6
06F103154 Offers

[Name] [Model info] [QTY]
oil spray jet CAWA,CAWB, 4
CCTA
Replacements: 06F103154C
06J103154B Offers

[Name] [Model info] [QTY]
oil spray jet CCZA,CCZC 4
Replacements: 06J103154AA
026103139 Offers

[Name] [Note] [QTY]
Cylinder pin 6X20 2
