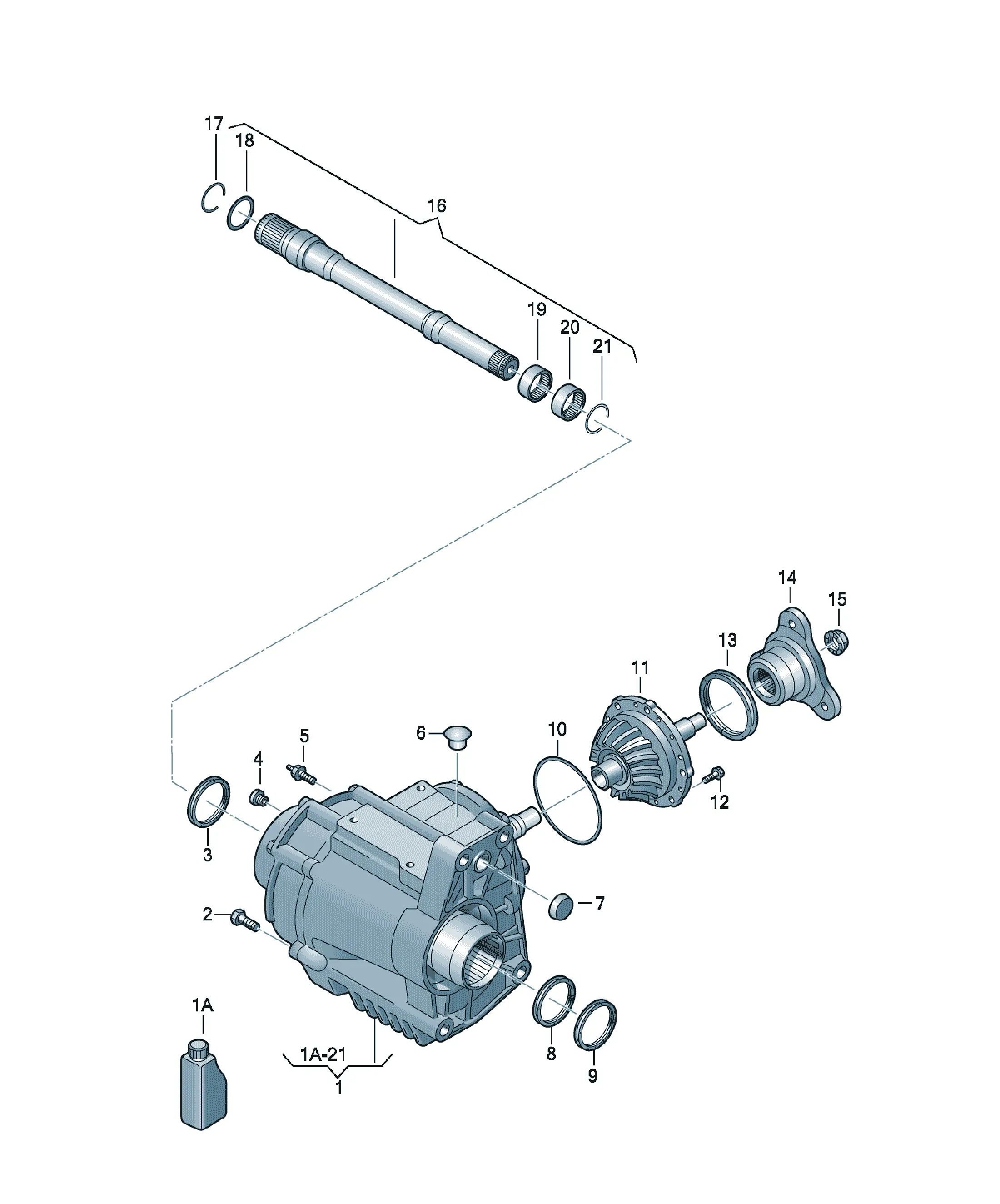

Transfer box

[Name] [QTY]

Final drive gearbox 1

[Name] [Note] [QTY]

O-ring 112X2,5 1

[Name]

Cover

No replacement part

[Name] [Note] [QTY]

Hexagon bolt M8X30 6

[Name] [Note] [QTY]

Shaft oil seal 48X68X8 1

Replacements: 02D525596G

[Name] [QTY]

flange 1

[Name] [Note] [QTY]

Hexagon nut M24X1,5 1

[Name] [Note] [QTY]

Flanged shaft 1

only for: 0A6 409 053 AF

[Name] [Note] [QTY]

Flanged shaft 1

not for: 0A6 409 053 AF

[Name] [Note] [QTY]

snap ring 33X2 1

[Name] [Note] [QTY]

O-ring 28X2,5 1

[Name] [Note] [QTY]

Needle bush 31,3X38X15 1

[Name] [Note] [QTY]

axle oil 1.0 Ltr. X

[Name] [Note] [QTY]

Hex collared bolt M10X40 4

[Name] [Note] [QTY]

Needle bush 31,3X38X15 1

[Name] [QTY]

snap ring 1

[Name] [Note] [QTY]

Shaft oil seal 40X83X8 1

Replacements: 0A6409399B

[Name] [Note] [QTY]

Seal bolt (combination) M10X1X10 2

[Name] [Note] [QTY]

double collared stud M10X45/M8X16 1

[Name] [QTY]

Cap for venting the gearbox 1

[Name] [Note] [QTY]

End cap 24 1

[Name] [Note] [QTY]

Shaft oil seal 31X48X8 1

Replacements: 0A6409189F

[Name] [Note] [QTY]

Shaft oil seal 65X88X8 1

Replacements: 0A6409529D
