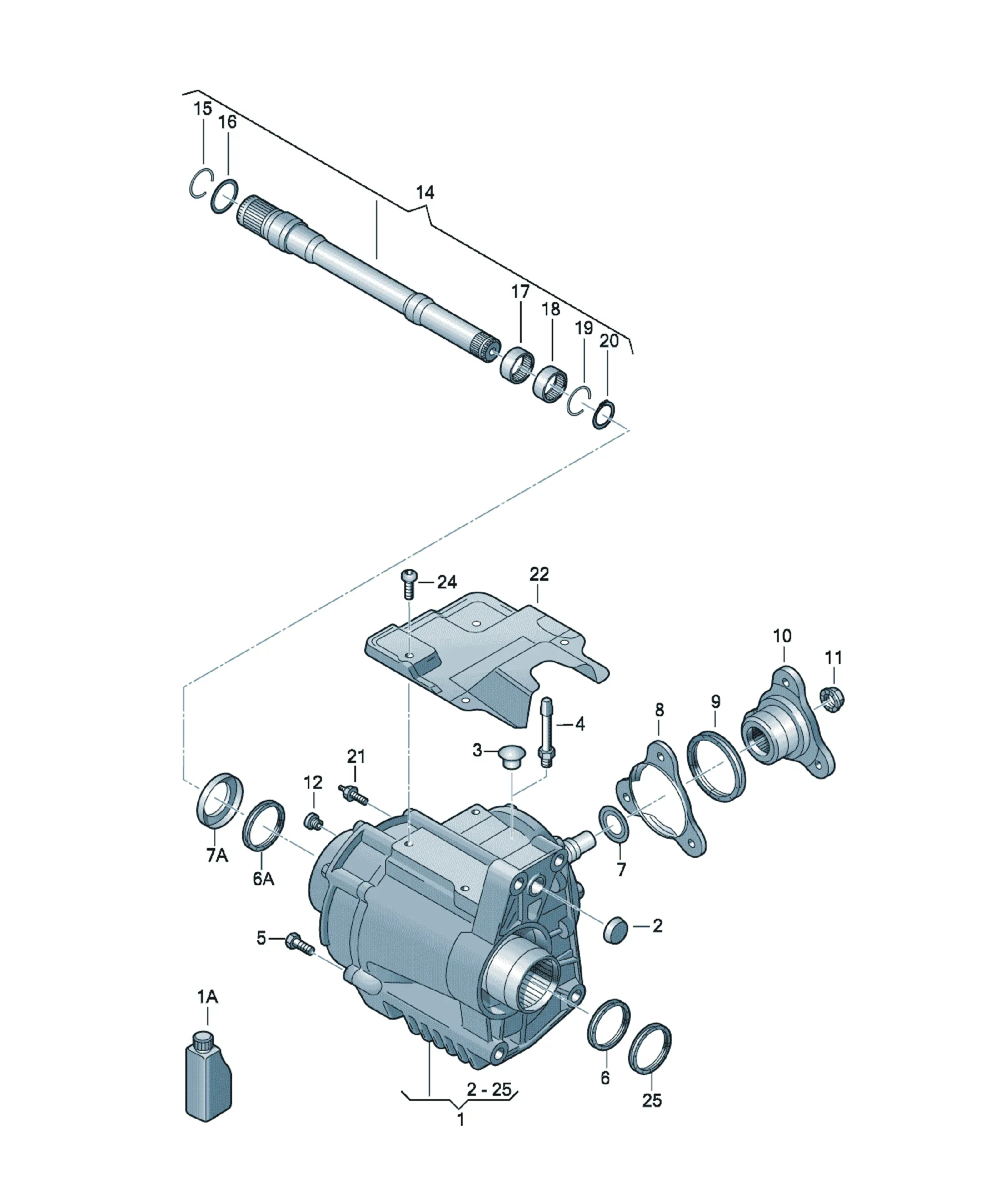

Transfer box

[Name] [QTY]

Final drive gearbox 1

[Name] [QTY]

flange 1

G 21 01 8>>

[Name] [QTY]

flange 1

G >> 21 01 8

[Name] [Note] [QTY]

Hexagon nut M24X1,5 1

[Name] [Note] [QTY]

Seal bolt (combination) M10X1X10 2

[Name] [Note] [QTY]

Flanged shaft 1

also use: >>G 02 118

0A6 409 596 1

Accompanying details: 0A6409596

[Name] [QTY]

snap ring 1

[Name] [Note] [QTY]

O-ring 28X2,5 1

[Name] [Note] [QTY]

Needle bush 31,3X38X15 1

[Name] [Note] [QTY]

Needle bush 31,3X38X15 1

[Name] [QTY]

snap ring 1

[Name] [Note] [QTY]

axle oil 1.0 Ltr. X

[Name] [Note] [QTY]

End cap 24 1

[Name] [Note] [QTY]

Securing ring 27X2,5 1

[Name] [Note] [QTY]

double collared stud M10X50/M8X16 1

[Name]

Guard plate

Not for this model

[Name]

Hexagon bolt

Not for this model

[Name] [Note] [QTY]

Shaft oil seal 65X88X8 1

Replacements: 0A6409529D

[Name] [QTY]

Cap for venting the gearbox 1

[Name] [QTY]

breather assy. 1

Not for this model

[Name] [Note] [QTY]

Hex collared bolt M10X40 4

[Name] [Note] [QTY]

Shaft oil seal 31X52X8 1

left

Replacements: 0A6409189E

[Name] [Note] [QTY]

Shaft oil seal 40X83X8 1

right

Replacements: 0A6409399B

[Name]

adjusting washer

Not for this model

[Name] [Note] [QTY]

Protective cap right 1

[Name] [QTY]

Cover cap 1

[Name] [Note] [QTY]

Shaft oil seal 48X68X8 1

G 21 01 8>>

Replacements: 02D525596G

[Name] [Note] [QTY]

Shaft oil seal 67X83X8 1

G >> 21 01 8

Replacements: 02D525596F
