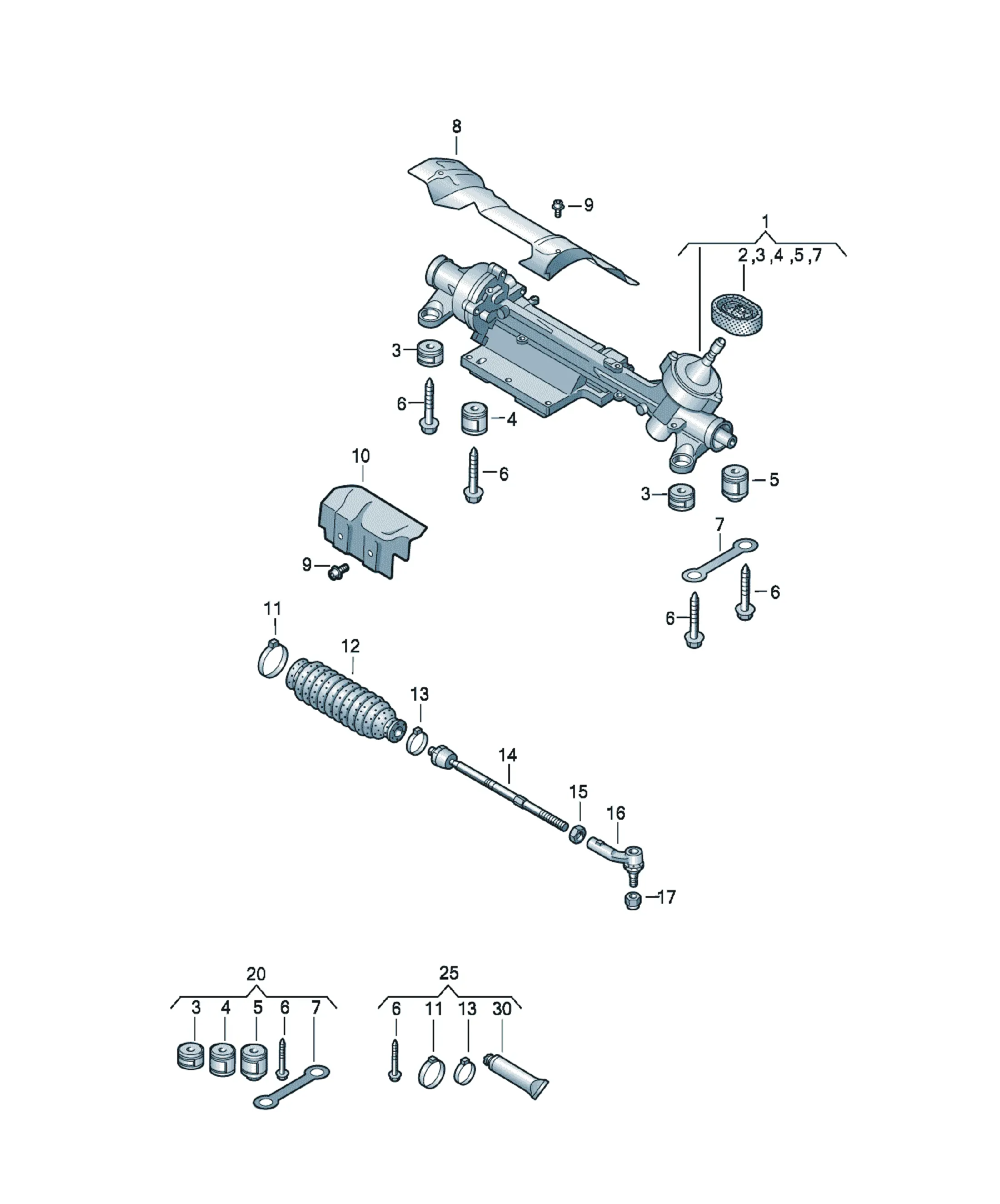

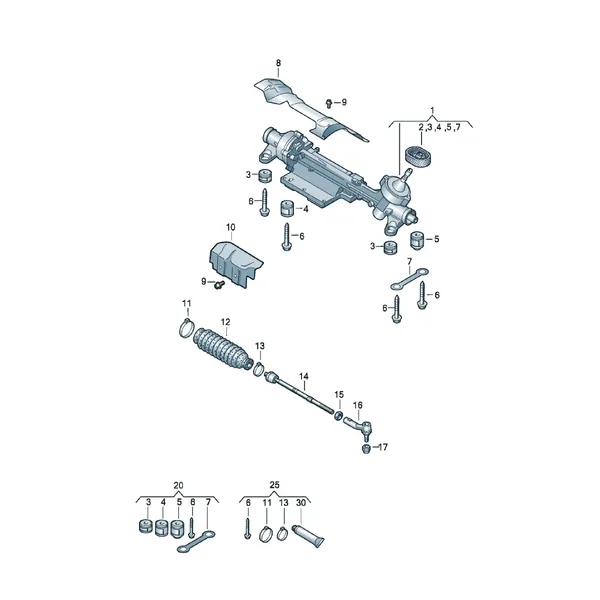

Steering gear

[Name] [QTY]

Steering gear 1

[Name] [Model info] [QTY]

Heat shield plate Frt.-wh.dr.+ 1

D >> - 21.09.2009 BWK,CAVA,

[Name] [Model info] [QTY]

Heat shield plate Frt.-wh.dr.+ 1

D - 09.08.2010>> CAXA

[Name] [Note] [QTY]

clamp 55,5X7X0,6 2

[Name] [Note] [QTY]

Gaiter 2

also use: G 052 168 A1 1

Accompanying details: G 052168A1

[Name] [Note] [QTY]

Spring band clamp 19,4-22,5 2

[Name] [QTY]

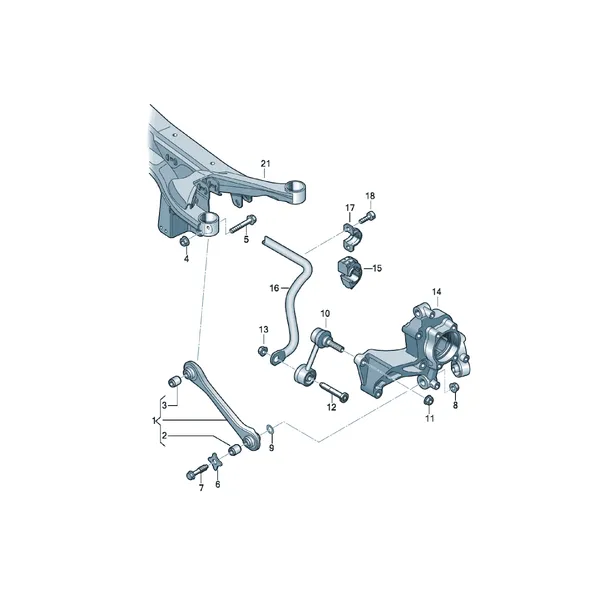

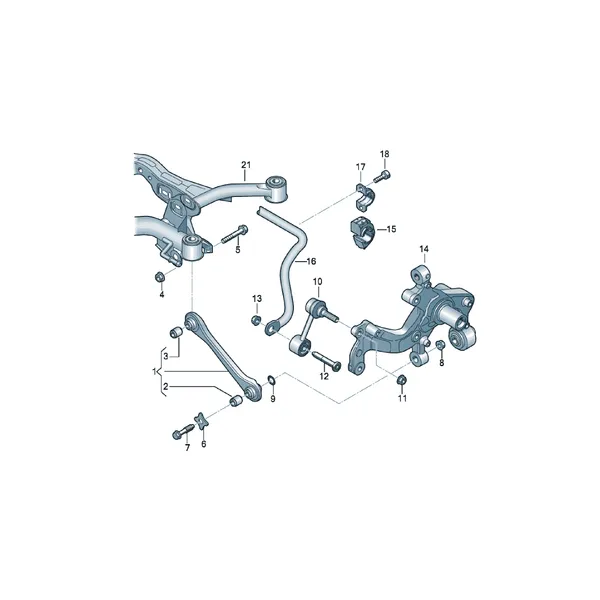

Track rod 2

[Name] [Note] [QTY]

Hexagon nut M16 2

[Name] [Note] [QTY]

tie rod end right 1

[Name] [Note] [QTY]

tie rod end left 1

[Name] [Note] [QTY]

hexagon nut, self-locking M12 2

[Name] [QTY]

seal ring 1

[Name] [QTY]

1 set of fasteners for steering gear 1

repair set

Rubber bush 20 2

Rubber bush 33 1

Rubber bush 39 1

Spacer 2

N 10560702 Hex collared bolt M10X70 4

[Name] [QTY]

1 set of fasteners for steering gear 1

Replacements: 5N0498169D; G 052168A1

repair set

N 90834901 clamp 55,5X7X0,6 2

1K0423933 Spring band clamp 19,4-22,5 2

N 10560702 Hex collared bolt M10X70 4

G 052168A1 Steering gear grease 10 gram 1

[Name] [Note]

Rubber bush

Included in position: 20

[Name] [Note] [QTY]

Steering gear grease 10 gram 1

[Name] [Note]

Rubber bush

Included in position: 20

[Name] [Note]

Rubber bush

Included in position: 20

[Name] [Note] [QTY]

Hex collared bolt M10X70 4

[Name] [Note]

Spacer

Included in position: 20

[Name] [QTY]

Heat shield plate 1

[Name] [Note] [QTY]

Hexagon socket head bolt, thread-forming M6X7 5
