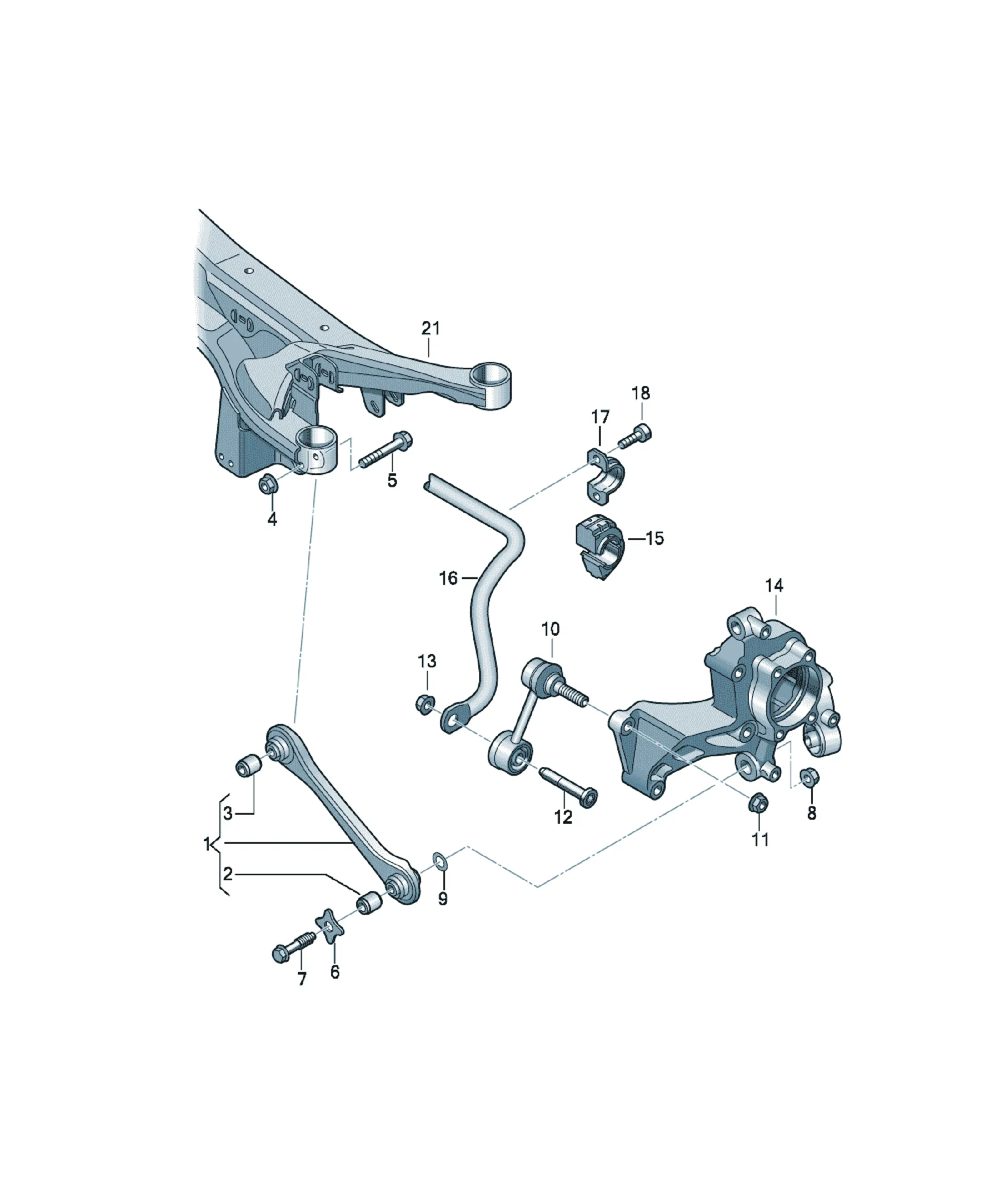

Rear suspension

[Name] [QTY]

Track rod 2

D - 04.11.2008>> - 07.09.2009

Replacements: 1K0501529H

[Name] [Note] [QTY]

Track rod right 1

D - 08.09.2009>>

[Name] [Note] [QTY]

Track rod left 1

D - 08.09.2009>>

[Name] [Note] [QTY]

Track rod left 1

D >> - 03.11.2008

[Name] [Note] [QTY]

Track rod right 1

D >> - 03.11.2008

[Name] [Note] [QTY]

Coupling rod 2

use if required: WHT 000 226 X

Accompanying details: WHT000226

Replacements: 1K0505465AA

[Name] [Note] [QTY]

Hexagon collar nut self-locking M10 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M10X55 2

[Name] [Note] [QTY]

Hexagon collar nut self-locking M10 2

[Name] [Note]

Wheel bearing housing

see illustration, item: 505-030,16

[Name] [Note] [Model info] [QTY]

Rubber bush 2 protrusions PR:0BE 2

D - 04.11.2008>> - 15.06.2009

[Name] [Note] [Model info] [QTY]

Rubber bush 3 protrusions PR:0BC 2

D >> - 03.11.2008

[Name] [Note] [Model info] [QTY]

Rubber bush 1 protrusion PR:0BC 2

D - 04.11.2008>> - 15.06.2009

[Name] [Note] [Model info] [QTY]

Rubber bush 3 protrusions PR:0BC 2

D - 16.06.2009>>

[Name] [Note] [Model info] [QTY]

Rubber bush 4 nubs PR:0BE 2

D >> - 03.11.2008

[Name] [Note] [Model info] [QTY]

Rubber bush 4 nubs PR:0BE 2

D - 16.06.2009>>

[Name] [Note] [Model info] [QTY]

Anti-roll bar 21,7X3 PR:0BE 1

D >> - 03.11.2008

Accompanying details: 1K0511327AS

[Name] [Note] [Model info] [QTY]

Anti-roll bar 21,7X3 PR:0BE 1

D - 04.11.2008>> - 15.06.2009

also use: 1K0 511 327 AS 2

Accompanying details: 1K0511327AS

[Name] [Note] [Model info] [QTY]

Anti-roll bar 21,7X3 PR:0BE 1

D - 16.06.2009>>

Accompanying details: 1K0511327AS

[Name] [Note] [Model info] [QTY]

Anti-roll bar 20,7X2,8 PR:0BC 1

D >> - 03.11.2008

Accompanying details: 1K0511327AR

[Name] [Note] [Model info] [QTY]

Anti-roll bar 20,7X2,8 PR:0BC 1

D - 04.11.2008>> - 15.06.2009

also use: 1K0 511 327 AR 2

Accompanying details: 1K0511327AR

[Name] [Note] [Model info] [QTY]

Anti-roll bar 20,7X2,8 PR:0BC 1

D - 16.06.2009>>

Accompanying details: 1K0511327AR

[Name] [QTY]

Clamp 2

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X28 4

[Name]

Not for this model

[Name] [Note]

Support frame

see illustration, item: 505-005,1

[Name]

Not for this model

[Name] [Note] [QTY]

Hexagon collar nut self-locking M12X1,5 2

[Name] [Note] [QTY]

Hex collared bolt M12X1,5X90 2

[Name] [QTY]

Washer 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M14X1,5X115 2

[Name] [Note] [QTY]

Hexagon collar nut M14X1,5 2

[Name] [Note] [QTY]

Retaining washer 14,5X30X3 2
