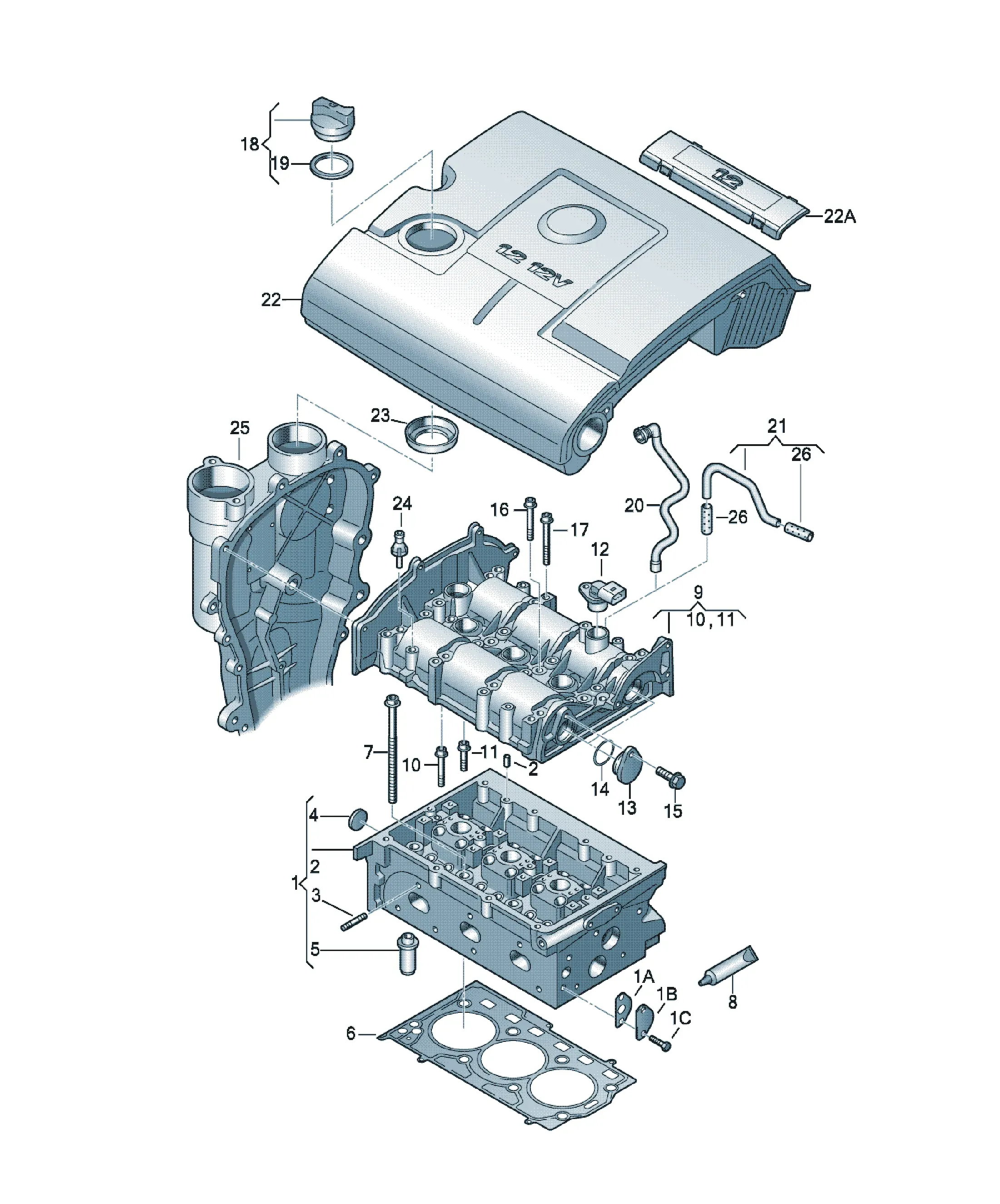

Головка блока цилиндров

[Name] [QTY]

cylinder head with valves 1

Items supplied

Valve stem seal 12

Inlet valve 6

exhaust valve 6

Valve spring 12

spring disc 12

cotter, split 24

equalizing element, hydraulic 12

roller rocker arm 12

Threaded pin ABGASSEITIG 7

Old part

03E103264AX cylinder head with valves 1

Cylinder head cast no.: 03E 103 373 E

With hydraulic compensation element

With roller rocker finger

[Name] [Note] [QTY]

Cylinder head 1

use if required: 036 131 550 H 1

036 131 281 1

N 010 293 15 2

Accompanying details: 036131550H; 036131281; N 01029315

repair set

03E103353J Cylinder head 1

N 10087802 Threaded pin M8X25 7

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M6X35

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M6X22 6

[Name] [Note] [QTY]

impulse sender 1

see illustration: 906-000

[Name] [QTY]

End cap 2

[Name] [Note] [QTY]

O-ring 21X2 2

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 4

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X65 8

[Name] [Note] [QTY]

End cap 1

Label CASTROL

[Name] [QTY]

Seal X

[Name] [QTY]

Seal X

[Name] [QTY]

Sealing plate X

[Name] [Note] [QTY]

Hexagon bolt M8X16 X

[Name] [Note] [QTY]

Cylinder pin 6X16 2

[Name] [QTY]

fresh air hose 1

D - 13.03.2012>>

[Name] [QTY]

fresh air hose 1

D >> - 12.03.2012

[Name] [QTY]

fresh air hose 1

[Name] [Note] [QTY]

Air filter 1

see illustration: 129-022

[Name] [Note] [QTY]

Cover 1.2 1

[Name]

Not for this model

[Name]

Not for this model

[Name] [Note] [QTY]

timing case 1

see illustration: 103-005

[Name] [QTY]

Vent hose 2

[Name] [Note] [QTY]

Threaded pin M8X28 7

[Name] [Note] [QTY]

End cap 24 1

[Name] [QTY]

Cylinder head gasket (metal) 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M9X1,25X138 8

[Name] [Note] [QTY]

Sealing compound paste 100G X

see workshop manual

[Name] [QTY]

cylinder head cover 1
