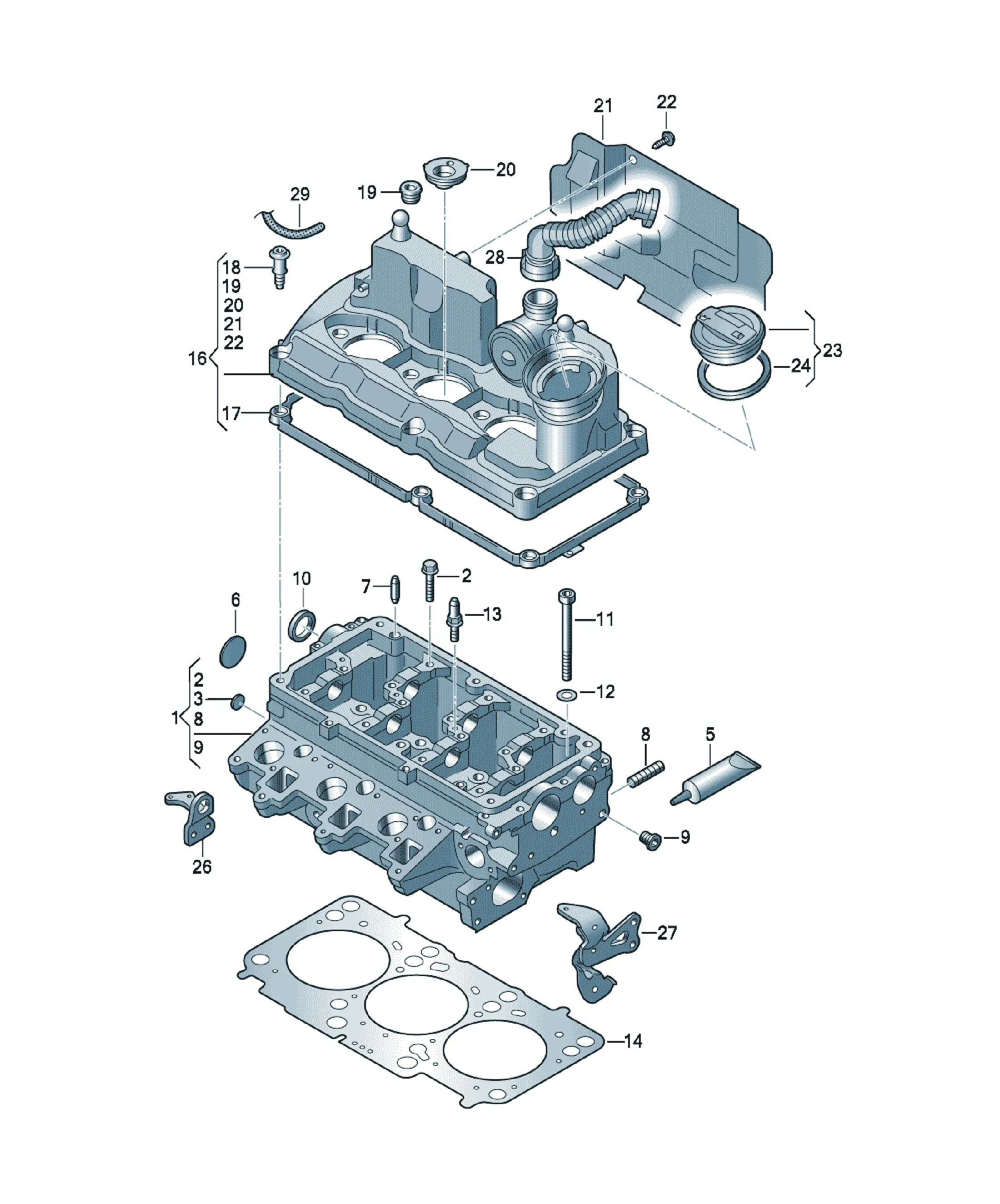

Головка блока цилиндров

[Name] [QTY]

Cylinder head with valves and camshaft, without injector nozzles 1

Items supplied

Socket head bolt 8

Washer 8

Valve stem seal 12

Inlet valve 6

exhaust valve 6

Valve spring 12

spring disc 12

cotter, split 24

equalizing element, hydraulic 12

roller rocker arm 12

Threaded pin Exh gas side 6

Camshaft Inlet 1

Camshaft Outlet 1

radial shaft seal 1

Old part

03P103265 X Cylinder head with valves and camshaft, without injector nozzles 1

Cylinder head cast no.: 03P 103 373

[Name] [QTY]

Cylinder head 1

[Name] [Note] [QTY]

shaft oil seal (shaft rotation: to right) 47X10X32 1

[Name] [Note] [QTY]

Socket head bolt M12X137 8

[Name] [Note] [QTY]

Washer 12,5X23X4,5 8

[Name] [Note] [QTY]

Hexagon bolt M6X16 3

[Name] [Note] [QTY]

Cylinder head gasket 1,63MM 1

2 holes

D >> - 31.05.2013

[Name] [Note] [QTY]

Cylinder head gasket 1,71MM 1

3 holes

D - 01.06.2013>>

[Name] [Note] [QTY]

Cylinder head gasket 1,71MM 1

3 holes

D >> - 31.05.2013

[Name] [Note] [QTY]

Cylinder head gasket 1,63MM 1

2 holes

D - 01.06.2013>>

[Name] [Note] [QTY]

Cylinder head gasket 1,55MM 1

1 hole

D - 01.06.2013>>

[Name] [Note] [QTY]

Cylinder head gasket 1,55MM 1

1 hole

D >> - 31.05.2013

[Name] [QTY]

cylinder head cover 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt with guide sleeve M6 6

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X32 20

[Name] [QTY]

seal ring 3

[Name] [QTY]

Heat shield 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 2

[Name] [QTY]

End cap 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Bracket 1

see illustration, item: 103-080,8

[Name] [Note] [QTY]

Suspension lug 1

see illustration, item: 103-080,10

[Name] [QTY]

Breather line 1

[Name] [Note] [QTY]

End cap 24 1

[Name] [Note] [QTY]

Silicon sealant 50ML X

[Name] [QTY]

End cap 1

[Name] [QTY]

dowel pin 2

[Name] [Note] [QTY]

Threaded pin M8X35 6

[Name] [Note] [QTY]

Seal bolt (combination) M10X1X10 1
