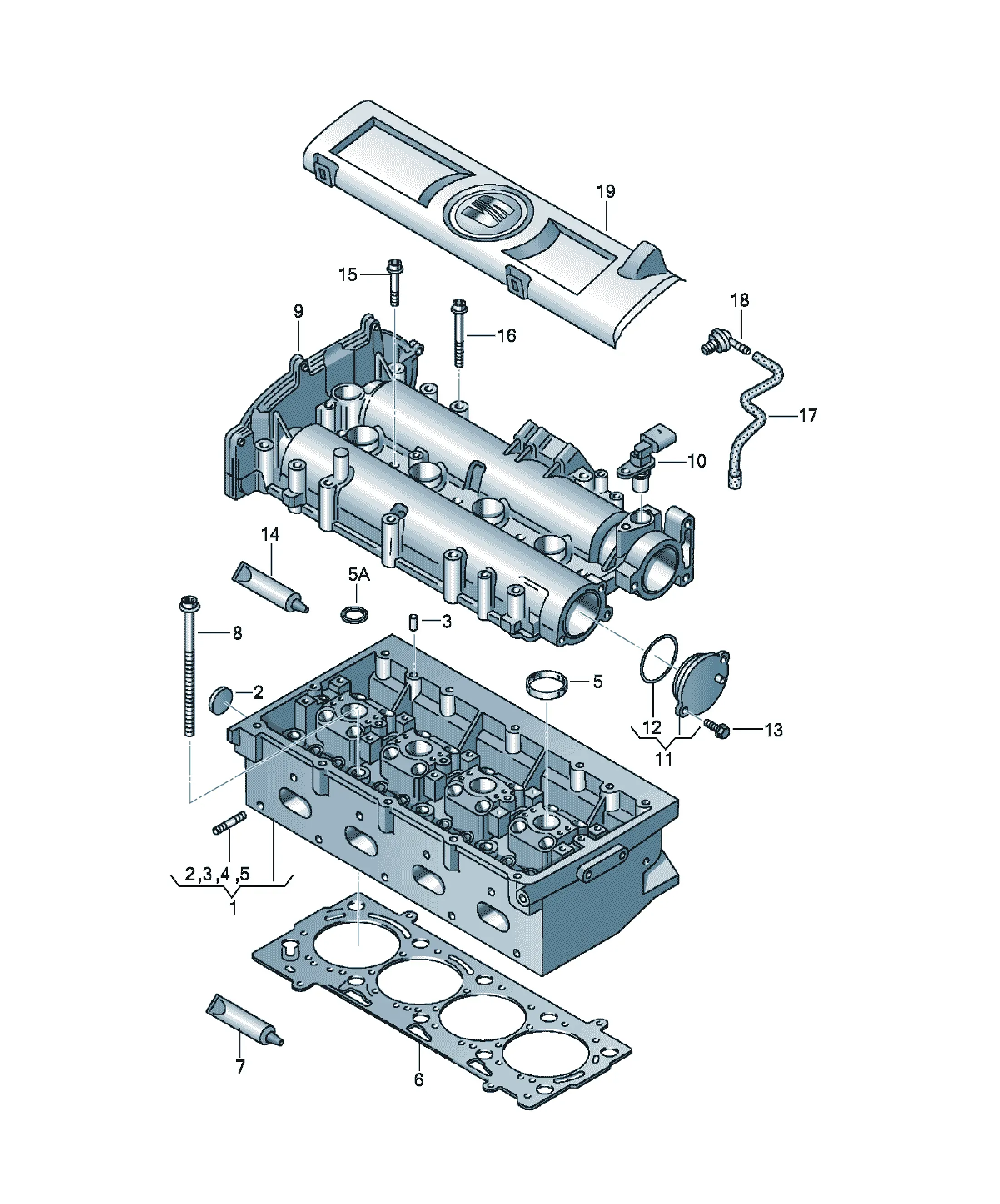

Головка блока цилиндров

[Name] [QTY]

Cylinder head with valves (without camshaft) 1

Items supplied

Valve stem seal 16

Inlet valve 8

exhaust valve 8

Valve spring 16

spring disc 16

cotter, split 32

equalizing element, hydraulic 16

Threaded pin Exh gas side 9

seal ring 4

[Name] [QTY]

Cylinder head with valves (without camshaft) 1

Items supplied

Valve stem seal 16

Inlet valve 8

exhaust valve 8

Valve spring 16

spring disc 16

cotter, split 32

equalizing element, hydraulic 16

Threaded pin Exh gas side 9

seal ring 4

[Name] [QTY]

Cylinder head 1

Items supplied

03C103353CB Cylinder head 1

WHT004984 Threaded pin M8X25 9

03C103196 seal ring 4

[Name] [Note] [QTY]

impulse sender 1

see illustration, item: 906-000,4

[Name] [QTY]

End cap 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

sealant 100G X

only for position: 11

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 5

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X65 10

[Name] [QTY]

Vent hose 1

[Name] [QTY]

Valve 1

[Name] [QTY]

Cover 1

[Name] [Note] [QTY]

End cap 24 1

[Name] [Note] [QTY]

Cylinder pin 6X16 2

[Name] [Note] [QTY]

Threaded pin M8X25 9

[Name] [QTY]

seal ring 4

[Name] [QTY]

oil strainer 1

[Name] [QTY]

Cylinder head gasket (metal) 1

[Name] [Note] [QTY]

sealant 50G X

see workshop manual

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M9X1,25X138 10

[Name] [QTY]

cylinder-head cover with camshaft 1
