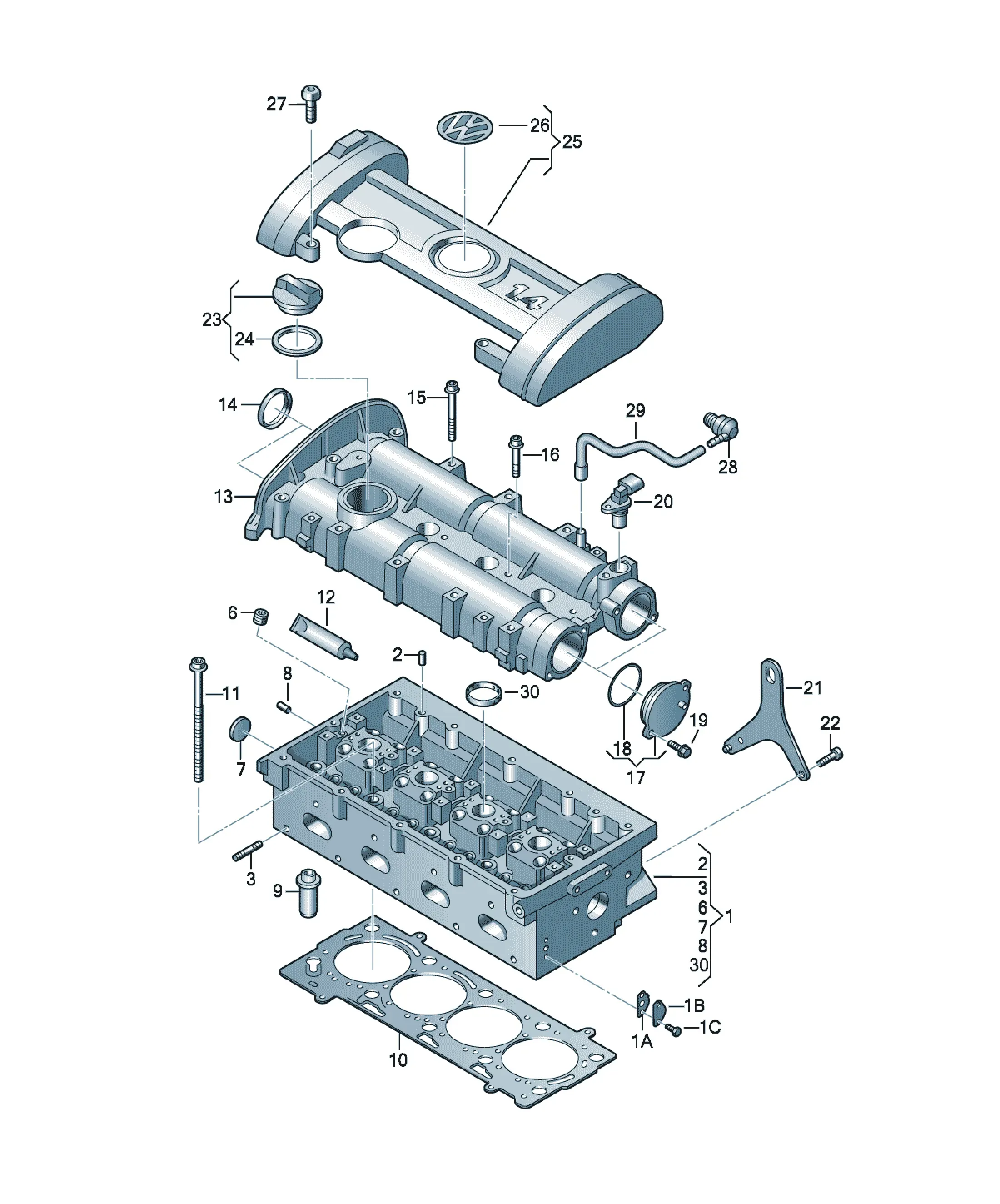

Головка блока цилиндров

[Name] [QTY]

seal ring X

[Name] [Note] [QTY]

Cylinder head 1

also use: 036 131 550 H 1

036 131 281 1

N 010 293 16 2

Accompanying details: 036131550H; 036131281; N 01029316

Items supplied

036103353CG Cylinder head 1

optional:

036103353CF Cylinder head 1

N 10087802 Threaded pin M8X25 9

03C103196 seal ring 4

[Name] [Note] [QTY]

Cylinder head with valves (without camshaft) 1

also use: 036 131 550 H 1

036 131 281 1

N 010 293 16 2

Accompanying details: 036131550H; 036131281

Items supplied

Valve stem seal 16

Inlet valve 8

exhaust valve 8

Valve spring 16

spring disc 16

cotter, split 32

equalizing element, hydraulic 16

Threaded pin 9

seal ring 4

[Name] [Note] [QTY]

cylinder head with valves 1

also use: 036 131 550 H 1

036 131 281 1

N 010 293 16 2

Accompanying details: 036131550H; 036131281; N 01029316

Old part

036103264CX cylinder head with valves 1

Cylinder head cast no.:

036 103 373 AF/AM

With hydraulic compensation element

With roller rocker finger

[Name] [QTY]

Cylinder head gasket (metal) 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M9X1,25X138 10

[Name] [Note] [QTY]

sealant 50G X

see workshop manual

[Name] [Note] [QTY]

sealant, flexible 100G X

only for: POS:13

[Name] [QTY]

cylinder head cover 1

[Name] [Note] [QTY]

Shaft oil seal 42X8 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X65 11

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 4

[Name] [QTY]

End cap 2

[Name] [Note] [QTY]

O-ring 45X3 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 4

[Name] [QTY]

Seal X

[Name] [QTY]

Sealing plate X

[Name] [Note] [QTY]

Hexagon bolt M8X16 X

[Name] [Note] [QTY]

Cylinder pin 6X16 2

[Name] [Note] [QTY]

impulse sender 1

see illustration: 906-010

[Name] [QTY]

Suspension lug 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X22 2

[Name] [QTY]

End cap 2

[Name] [QTY]

Seal X

[Name] [Note] [QTY]

Cover 'SEAT 1,4' 1

[Name] [QTY]

SEAT emblem 1

D - 04.11.2013>>

[Name] [QTY]

SEAT emblem 1

D >> - 03.11.2013

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 4

[Name] [QTY]

Valve 1

[Name] [QTY]

Vent hose 1

[Name] [Note] [QTY]

Threaded pin M8X25 9

[Name] [Model info] [QTY]

seal ring CAXA 1

[Name] [Note] [QTY]

sealing plug M16X1,5 1

[Name] [Note] [QTY]

End cap 24 1

[Name] [Note] [QTY]

Bungs 8 X

[Name] [Note] [QTY]

Bungs 7,4 4

[Name]

Not for this model
