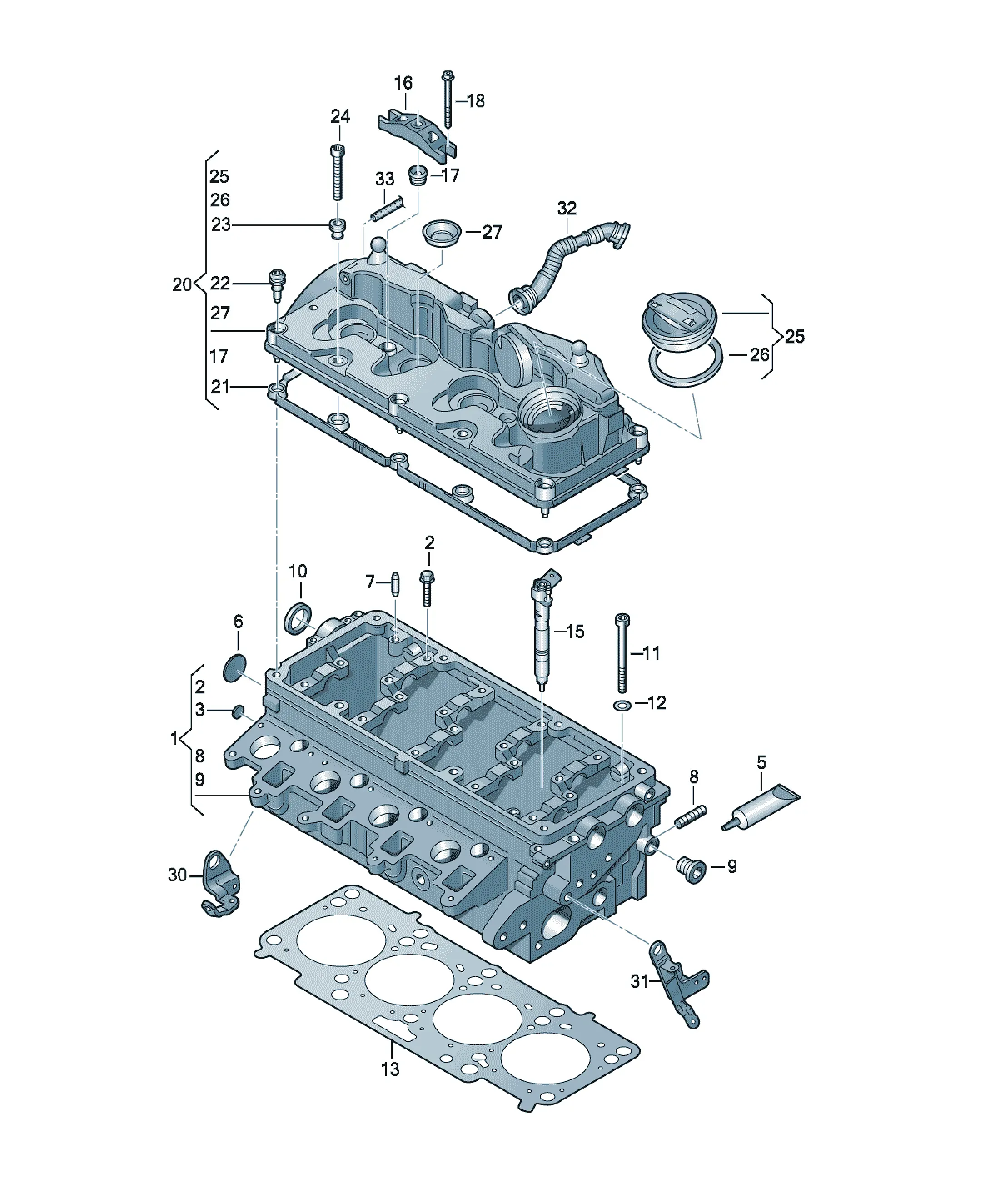

Головка блока цилиндров

[Name] [Model info] [QTY]

Cylinder head with valves and camshaft, without injector nozzles CFHD 1

Items supplied

Socket head bolt 10

Washer 10

Valve stem seal 16

Inlet valve 8

exhaust valve 8

Valve spring 16

spring disc 16

cotter, split 32

equalizing element, hydraulic 16

roller rocker arm 16

Threaded pin 8

Camshaft Inlet 1

Camshaft Outlet 1

radial shaft seal 1

Old part

03L103265DX Cylinder head with valves and camshaft, without injector nozzles 1

Cylinder head cast no.: 03L 103 373 J

[Name] [Model info] [QTY]

Cylinder head CFHD 1

Exchange program parts: 03L103265DX

[Name] [Model info] [QTY]

Cylinder head with valves and camshaft, without injector nozzles CAYB,CAYC, 1

CLNA

Items supplied

Socket head bolt 10

Washer 10

Valve stem seal 16

Inlet valve 8

exhaust valve 8

Valve spring 16

spring disc 16

cotter, split 32

equalizing element, hydraulic 16

roller rocker arm 16

Threaded pin 8

Camshaft Inlet 1

Camshaft Outlet 1

radial shaft seal 1

Old part

03L103265AX Cylinder head with valves and camshaft, without injector nozzles 1

Cylinder head cast no.: 03L 103 373 A

[Name] [Model info] [QTY]

Cylinder head CAYB,CAYC, 1

CLNA

Exchange program parts: 03L103063BX

[Name] [QTY]

shaft oil seal (shaft rotation: to right) 1

[Name] [Note] [QTY]

Socket head bolt M12X137 10

[Name] [Note] [QTY]

Washer 12,5X23X4,5 10

[Name] [Note] [Model info] [QTY]

Cylinder head gasket 1,55MM CFHD X

1 hole

[Name] [Note] [Model info] [QTY]

Cylinder head gasket 1,63MM CFHD X

2 holes

[Name] [Note] [Model info] [QTY]

Cylinder head gasket 1,55MM CAYB,CAYC, X

1 hole CLNA

[Name] [Note] [Model info] [QTY]

Cylinder head gasket 1,63MM CAYB,CAYC, X

2 holes CLNA

[Name] [Note] [Model info] [QTY]

Cylinder head gasket 1,71MM CAYB,CAYC, X

3 holes CLNA

[Name] [Note] [Model info] [QTY]

Cylinder head gasket 1,71MM CFHD X

3 holes

[Name] [Note] [Model info] [QTY]

Injector unit CAYB,CAYC, 4

see illustration: 130-050 CLNA

[Name] [Note] [Model info] [QTY]

Injector unit CFHD 4

see illustration: 130-040

[Name] [Note] [Model info] [QTY]

tensioning plate CAYB,CAYC, 2

see illustration: 130-050 CLNA

[Name] [Note] [Model info] [QTY]

tensioning plate CFHD 2

see illustration: 130-040

[Name] [Note] [QTY]

seal ring M6 2

only to be used for: 03L 103 469 R

marked with: 03L 103 475 C

[Name] [Note] [Model info] [QTY]

seal ring M6 CAYB,CAYC, 2

only to be used for: 03L 103 469 H CLNA

marked with: 03L 103 475 H

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M6X70.2 CFHD 2

see illustration: 130-040

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M6X70.2 CAYB,CAYC, 2

CLNA

see illustration: 130-050

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X32 24

[Name] [QTY]

cylinder head cover 1

[Name] [Note] [QTY]

Seal 1

only to be used for: 03L 103 469 H

marked with: 03L 103 475 H

[Name] [Note] [QTY]

Hexagon socket flat head bolt with guide sleeve 6

only to be used for: 03L 103 469 R

marked with: 03L 103 475 R

[Name] [Note] [QTY]

Decoupling element 2

only to be used for: 03L 103 469 R

marked with: 03L 103 475 R

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner hex round head CAYB,CAYC, 2

CLNA

see catalogue: 130-50

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner hex round head CFHD 2

see catalogue: 130-40

[Name] [QTY]

End cap 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

seal ring 4

only to be used for: 03L 103 469 R

marked with: 03L 103 475 R

[Name] [Note] [QTY]

seal ring 4

only to be used for: 03L 103 469 H

marked with: 03L 103 475 H

[Name] [Note] [QTY]

End cap 24 1

[Name] [Note] [QTY]

Bracket 1

see illustration: 103-080

[Name] [Note] [QTY]

Suspension lug 1

see illustration: 103-080

[Name] [Model info] [QTY]

Breather line CFHD 1

[Name] [Model info] [QTY]

Breather line CAYB,CAYC, 1

CLNA

[Name] [Note] [Model info] [QTY]

Vacuum hose CFHD 1

see illustration: 131-045

[Name] [Note] [Model info] [QTY]

Vacuum hose CAYB,CAYC, 1

see illustration: 131-040 CLNA

[Name] [Note] [QTY]

Silicon sealant 50ML X

[Name] [Note] [QTY]

End cap M6X32 1

[Name] [QTY]

dowel pin 2

[Name] [Note] [QTY]

Threaded pin M8X35 8

[Name] [Note] [QTY]

Seal bolt (combination) M10X1X10 1
