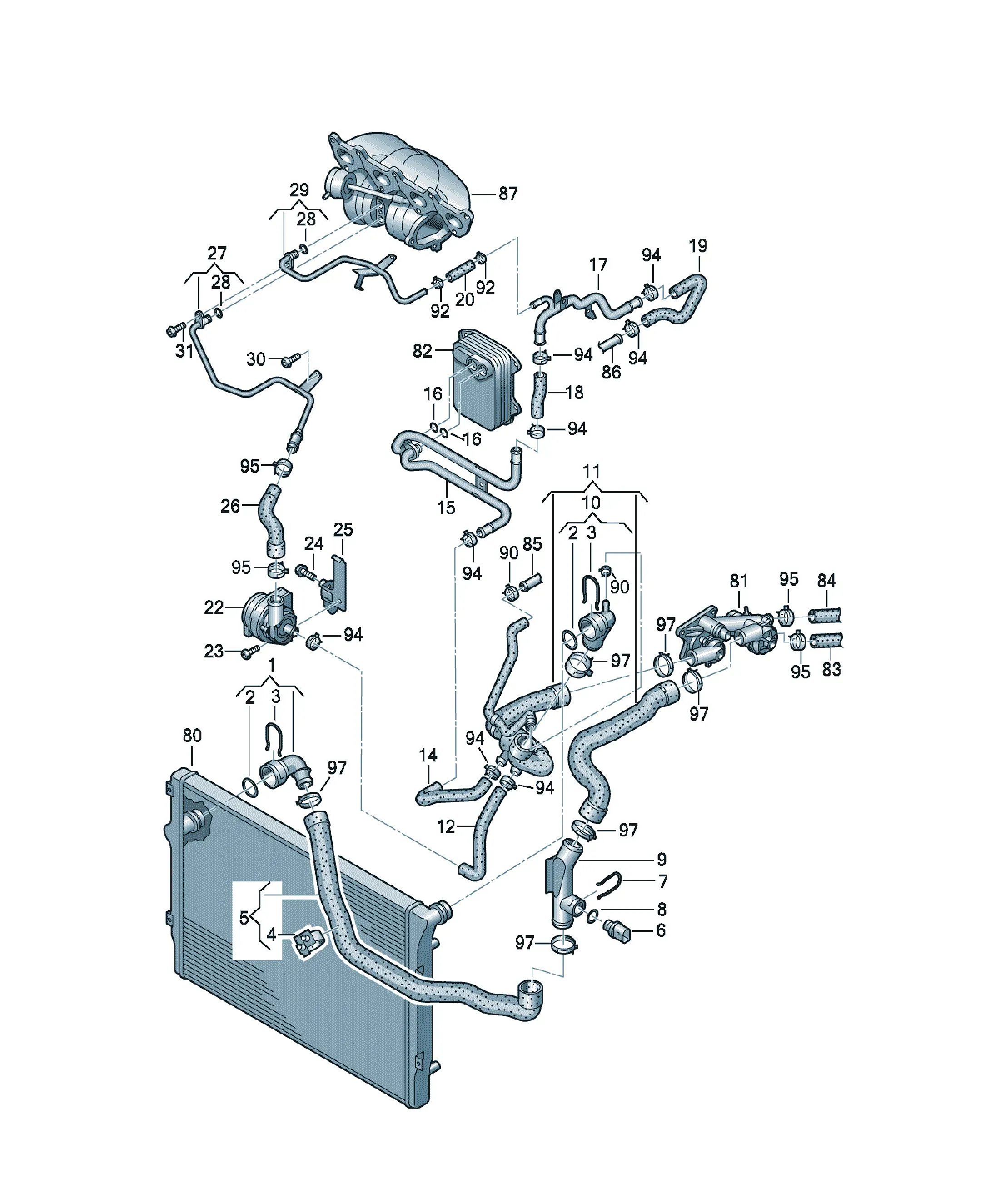

Система охлаждения

[Name] [QTY]

Quick acting coupling 1

[Name] [QTY]

Quick acting coupling 1

[Name] [QTY]

Coolant hose with quick release coupling 1

for models with towing attachment and used in cold and moderate climates

[Name] [QTY]

Coolant hose with quick release coupling 1

for vehicle use in warm climates

[Name] [QTY]

Coolant hose with quick release coupling 1

for vehicles without trailer operation and vehicle use in cold and mild climate zones

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 15X1,8 2

only for: 03C 121 050 H

[Name] [Note] [QTY]

O-ring 14X2,5 2

only for: 03C 121 050 N

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose 1

(Coolant pipe> coolant pipe)

[Name] [QTY]

Coolant hose 1

(Coolant pipe> coolant pipe)

[Name] [Note] [QTY]

O-ring 32X4 X

[Name] [QTY]

Coolant hose 1

(Coolant pipe> coolant pipe)

[Name] [QTY]

Additional coolant pump 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 1

[Name] [Note] [QTY]

Hex collared bolt M8X35 1

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 9,6X2,5 X

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

retaining spring 32MM X

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Hose bracket 35MM 1

[Name] [QTY]

Coolant hose 1

Replacements: 5N0122051AB

[Name] [QTY]

Coolant temperature sender 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [Note]

Cooler for coolant

see illustration, item: 121-080,30

[Name] [Note]

Coolant regulator housing

see illustration, item: 121-080,1

[Name] [Note]

Oil cooler

see illustration, item: 115-005,23

[Name] [Note]

Coolant hose

see illustration, item: 121-015,10

[Name] [Note]

Coolant hose

see illustration, item: 121-015,14

[Name] [Note]

Coolant pipe

see illustration, item: 121-015,8

[Name] [Note]

Coolant pipe

see illustration, item: 121-015,1

[Name] [Note]

Exhaust manifold with turbo- charger

see illustration, item: 145-050,1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
