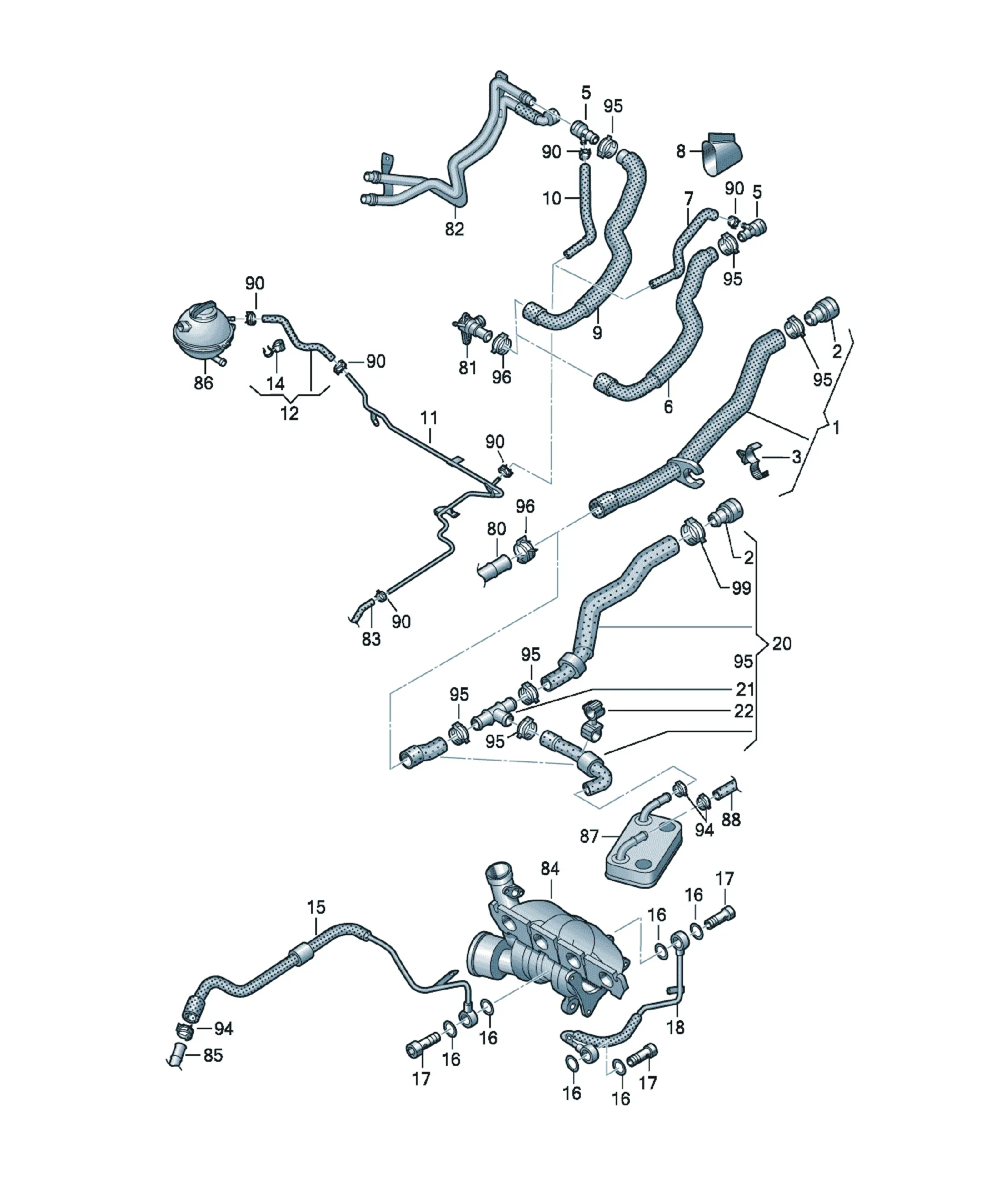

Система охлаждения

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant hose 1

for vehicles with auxiliary heater

or

Auxiliary heater for water circuit

[Name] [Model info] [QTY]

Coolant pipe CCZC,CCZA 1

[Name] [Model info] [QTY]

Coolant pipe CCTA,CCTB 1

[Name] [Model info] [QTY]

Coolant pipe CAWB,CAWA 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Clip A14-14XC01-14 1

[Name] [Note] [QTY]

Coolant pipe return 1

[Name] [Note] [QTY]

seal ring 14,2X17,9X1,5 X

[Name] [Note] [QTY]

Banjo bolt 10 X

[Name] [Note] [QTY]

Coolant pipe feed 1

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

Potential individual parts

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

[Name] [Note] [Model info] [QTY]

t-piece 20X20X20 PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

[Name] [Note] [Model info] [QTY]

Cable tie with hose retainer 7,0X213,5/23 PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

[Name] [Note] [QTY]

Hose bracket A14-25.5XC13-6 1

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

[Name] [Note] [Model info] [QTY]

Coolant hose with quick release coupling PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

contains additional positions: 5,7,8,90,95

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Heat reflective mat 1

[Name] [Note]

Coolant pipe

see illustration, item: 121-028,15

[Name] [Note]

water connection

see illustration, item: 121-004,23

[Name] [Note]

Coolant pipe

see illustration, item: 819-070,10

[Name] [Note]

Coolant hose

see illustration, item: 121-028,14

[Name] [Note]

Exhaust manifold with turbo- charger

see illustration, item: 145-055,1

[Name] [Note]

Coolant pipe

see illustration, item: 121-028,18

[Name] [Note]

Reservoir

see illustration, item: 121-082,20

[Name] [Note] [Model info]

Gear oil cooler PR:G1D

see illustration, item: 321-060,6

For vehicles with:

7-speed dual clutch gearbox

[Name] [Note] [Model info]

Coolant hose PR:G1D

see illustration, item: 121-028,30

For vehicles with:

7-speed dual clutch gearbox

[Name] [QTY]

Coolant hose 1

for vehicles with auxiliary heater

or

Auxiliary heater for water circuit

[Name] [Note] [QTY]

Coolant hose with quick release coupling 1

for vehicles with auxiliary heater

or

Auxiliary heater for water circuit

and

For vehicles with:

7-speed dual clutch gearbox

contains additional positions: 5,10,90,95

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X
