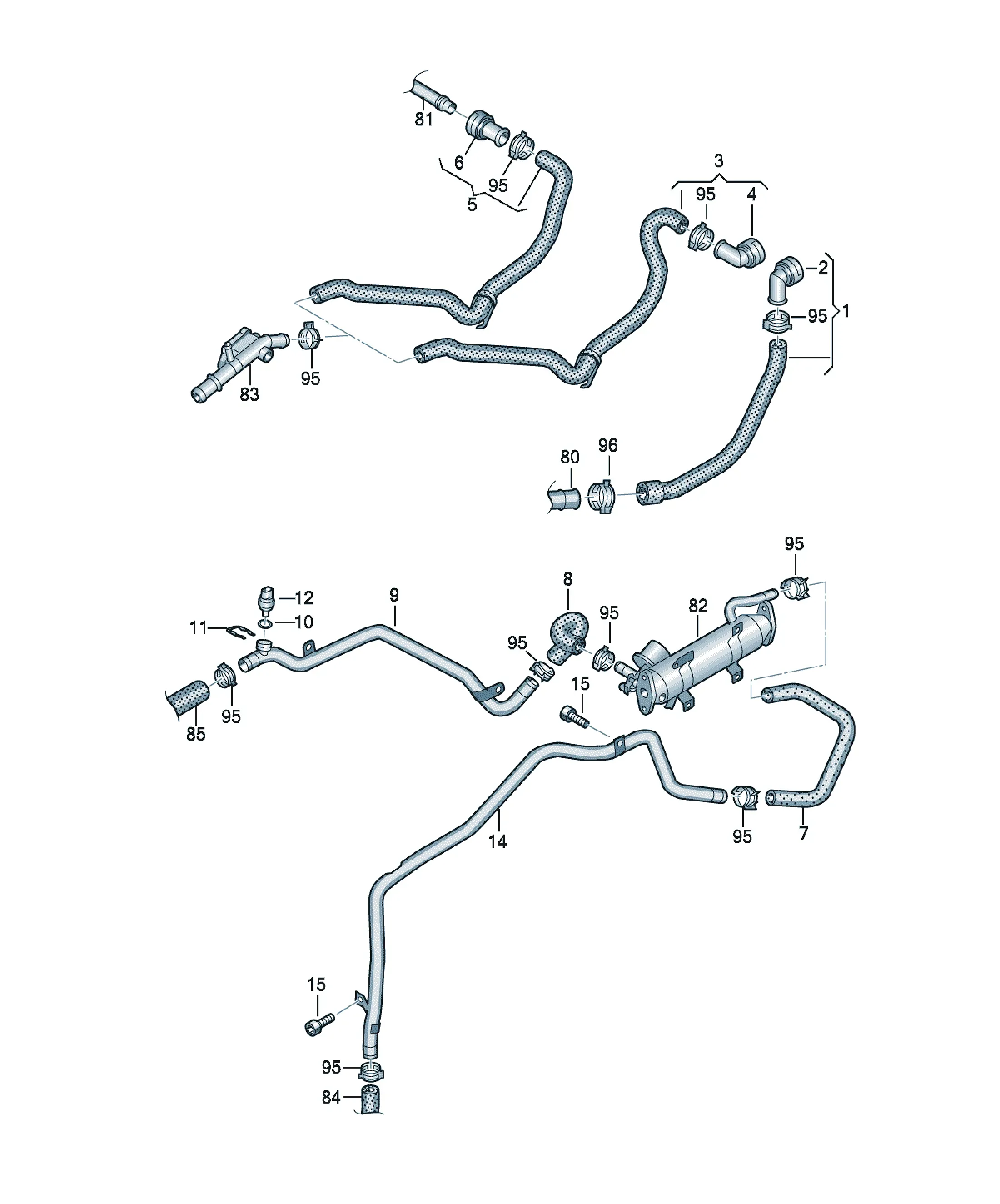

Система охлаждения

[Name] [Note] [QTY]

Coolant hose with quick release coupling return 1

Items supplied

Coolant hose 328MM 1

N 90687001 Spring band clamp 27X12 1

1K0122291J Quick acting coupling 1

Potential individual parts

WHT009245 O-ring 22X3,5 NW16 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant temperature sender 1

Coolant pump

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

Potential individual parts

[Name] [Note] [Model info] [QTY]

Coolant hose with quick release coupling feed 7-speed dual clutch gearbox 1

contains: 5N0 121 093 H

Items supplied

Coolant hose 630MM 1

Chafe guard 98MM 1

Chafe guard 80MM 1

N 90687001 Spring band clamp 27X12 1

7M0122291 Quick acting coupling 1

Alternative installation: 1K0 122 291 CL

5N0121093H Hose bracket 1

Spacer holder 1

Potential individual parts

7M0122291 Quick acting coupling 1

optional: 1K0 122 291 CL

WHT009245 O-ring 22X3,5 NW16 1

[Name] [Note] [Model info] [QTY]

Coolant hose with quick release coupling feed Manual gearbox 1

contains: 1K0 121 093 BN 6-speed automatic

Items supplied

Coolant hose 636MM 1

Chafe guard 80MM 1

Chafe guard 90MM 1

N 90687001 Spring band clamp 27X12 1

7M0122291 Quick acting coupling 1

Alternative installation: 1K0 122 291 CL

1K0121093BN Hose bracket 1

Potential individual parts

7M0122291 Quick acting coupling 1

optional: 1K0 122 291 CL

WHT009245 O-ring 22X3,5 NW16 1

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

connection piece 1

[Name] [Note] [Model info] [QTY]

Coolant hose with quick release coupling Manual gearbox 1

for vehicles with auxiliary heater 6-speed automatic

contains: 1K0 121 093 BN

[Name] [Note] [Model info] [QTY]

Coolant hose with quick release coupling 7-speed dual clutch gearbox 1

for vehicles with auxiliary heater

contains: 5N0 121 093 H

[Name] [QTY]

Quick acting coupling 1

for vehicles with auxiliary heater

or

Auxiliary heater for water circuit

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

Potential individual parts

[Name] [Model info] [QTY]

Coolant hose PR:G0L,G0R, 1

G1D

[Name] [Model info] [QTY]

Coolant hose PR:G0M,G0K 1

Replacements: 5N0121051J

[Name] [QTY]

Coolant hose 1

[Name] [Note]

Coolant pipe

see illustration, item: 121-064,17

[Name] [Note]

Coolant pipe

for vehicles with auxiliary heater

see illustration, item: 819-070,10

[Name] [Note]

Cooler for exhaust recuperation

see illustration, item: 131-050,5

[Name] [Note]

flange

see illustration, item: 121-088,11

[Name] [Note]

Coolant hose

see illustration, item: 121-064,11

[Name] [Note]

Coolant hose

see illustration, item: 121-064,16

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X
